Kattokiinnike B-Tech SYSTEM 2 Universal projektori 25 kg musta

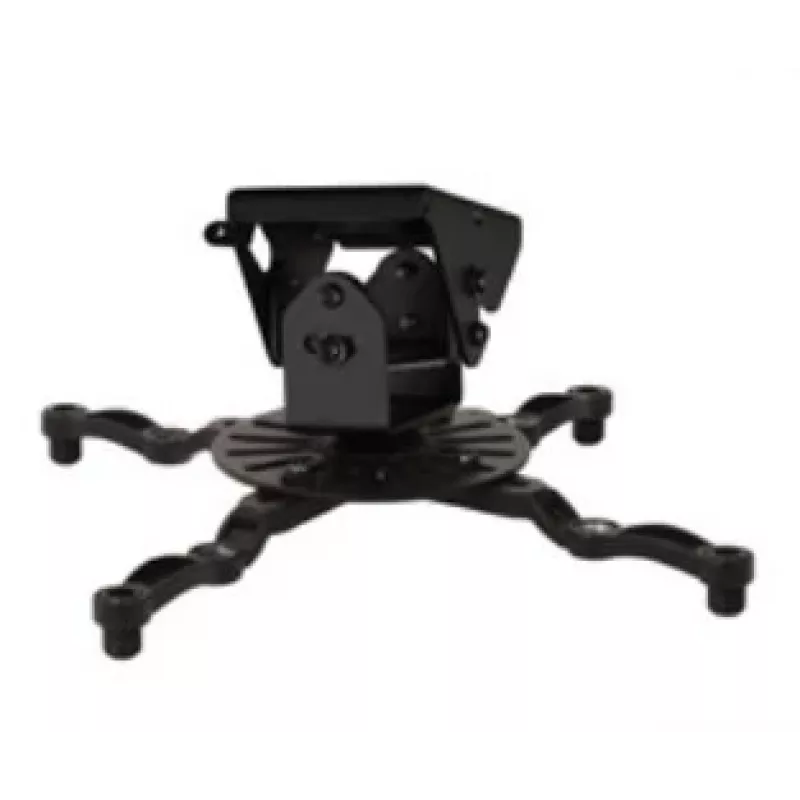

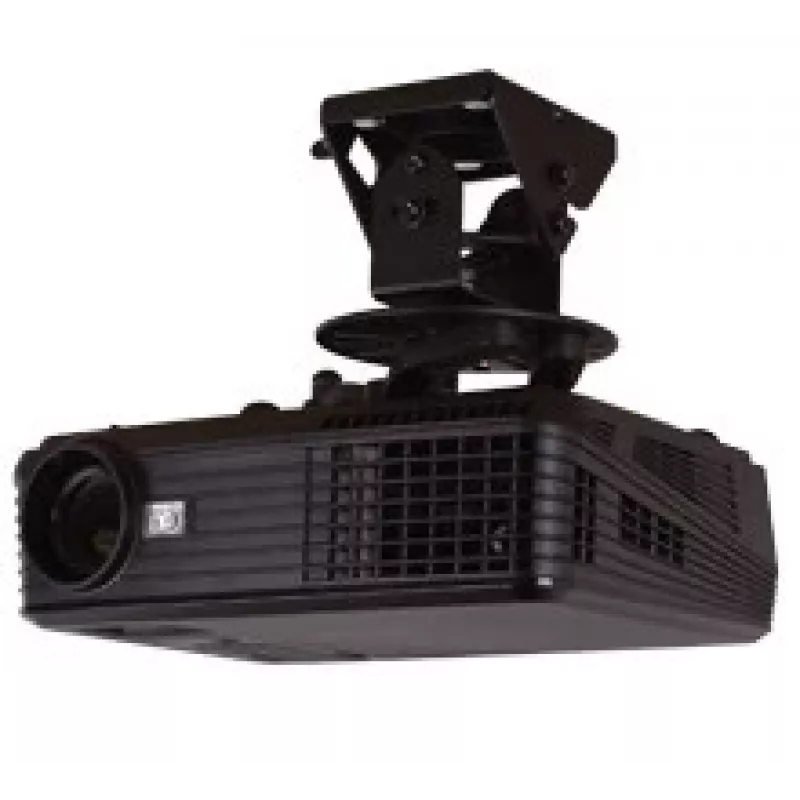

The B-TECH Ceiling Mount SYSTEM 2 Universal Projector 25 kg Black is a universal ceiling mounting solution engineered for fixed installations of projectors weighing up to 25 kg. With a compact footprint of 370 mm width, 121.5 mm height and 400 mm depth, this mount offers solid support and accommodates a wide range of projector models. It is supplied pre-assembled and is compatible with flush ceiling installation or mounting on Ø50 mm poles, providing flexibility for professional and commercial AV setups. The mount is finished in black to minimise visual impact in darkened rooms.

Advantages

The mount provides robust load capacity for heavy projectors while remaining compact and unobtrusive. Pre-assembled components reduce installation time and complexity, and the design allows tilt, roll and swivel adjustments to align the projector accurately. Optional micro-adjustment is available for fine positioning required by short throw and precision installations. Compatibility with pole or flush ceiling mounting ensures adaptability to different ceiling types and room layouts.

Suitable for

• Fixed installation of medium and large projectors in conference rooms
• Classroom and lecture hall AV systems
• Home cinema setups requiring ceiling-mounted projectors
• Commercial spaces and event venues with suspended ceilings or poles

Key specifications

• Maximum supported weight: 25 kg
• Mounting type: ceiling mount or Ø50 mm pole compatible
• Dimensions (W×H×D): 370 mm × 121.5 mm × 400 mm
• Finish: black
• Adjustment: tilt, roll and swivel with optional micro-adjustment for precise alignment
• Supply state: pre-assembled for simplified installation

How to use

Determine the mounting location and ensure the ceiling or pole can support the combined weight of the mount and projector. For flush ceiling installation, position and secure the mount to suitable ceiling fixings; for pole installation, attach the mount to a Ø50 mm pole according to pole mounting instructions. Attach the projector to the interface plate, then use the tilt, roll and swivel adjustments to align the projected image. If required, engage the micro-adjustment mechanism to fine-tune positioning for short throw lenses or precise image placement. Tighten all locking fasteners after alignment.

Recommendations

Verify the projector weight and mounting surface load capacity before installation. Use appropriate fixings for the ceiling material and, if unsure, consult a qualified installer. Periodically check and re-tighten adjustment fasteners to maintain alignment, and avoid exceeding the 25 kg load limit to ensure safe operation.
