Kattoteline B-Tech BT8426/B teleskooppinen universaali litteä näyttö kallistustoiminnolla

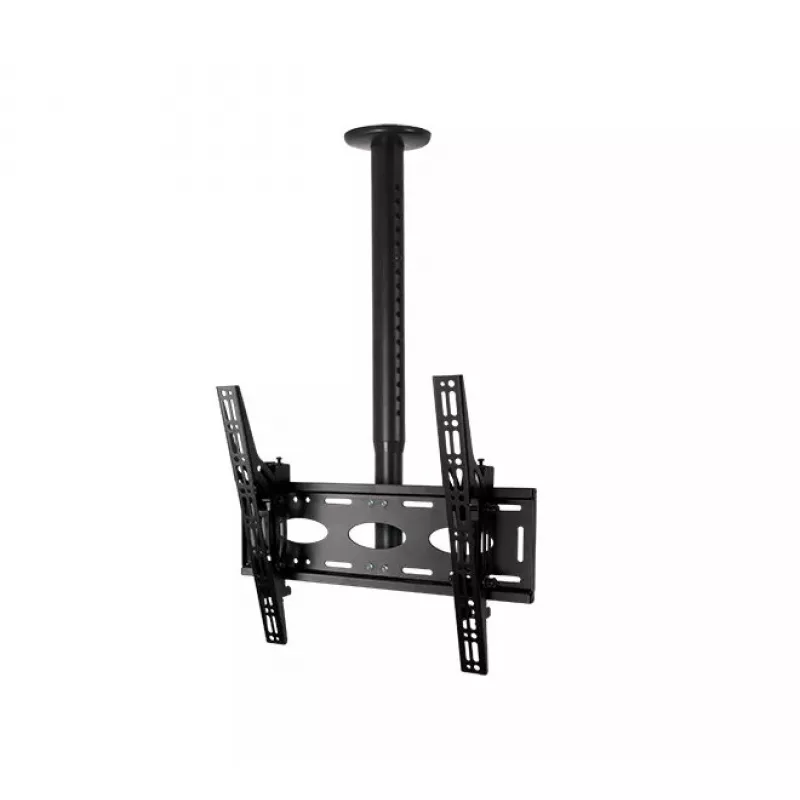

The B-Tech BT8426/B telescopic ceiling mount supports a single flat screen up to 65" and 50 kg. It provides a variable drop adjustment and a torsion-tilt mechanism that allows tilt adjustment for improved viewing angles. The mount is finished in black and includes cover plates and security screws for a neat, secure installation.

Advantages

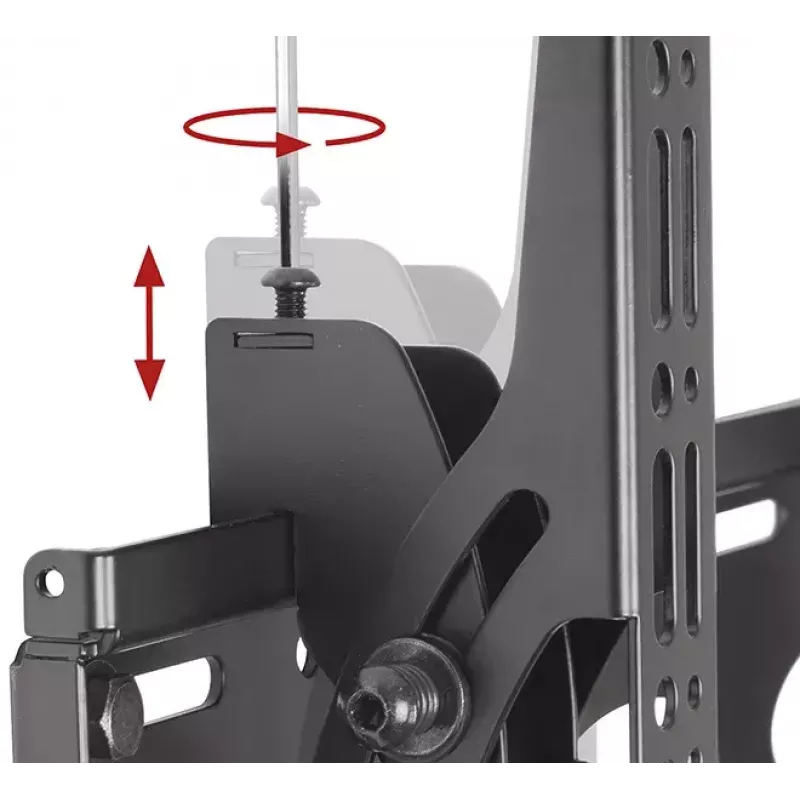

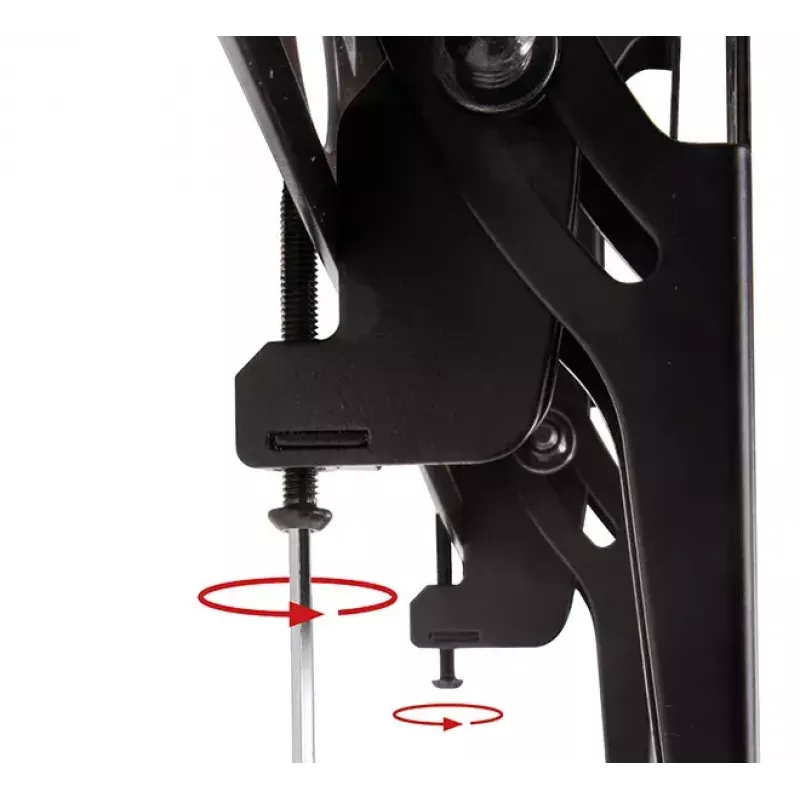

The mount offers a telescopic height range with fine increments, a Torsion-Tilt mechanism for easy +/-15° tilt, levelling screws on the interface arms for precise positioning and locking screws to deter unauthorised removal. Cover plates are included to conceal fixings and create a tidy appearance.

Suitable for

• Mounting a single flat-screen TV or monitor up to 65"
• Ceiling installations where adjustable drop between 663 mm and 943 mm is required
• Applications requiring VESA compatibility up to 600 x 400 mm
• Environments needing a secure mount with locking screws and concealed fixings

Key specifications

• Maximum screen size: 65"
• Maximum weight capacity: 50 kg
• VESA compatibility: up to 600 x 400 mm
• Adjustable drop: 663 mm – 943 mm in 25 mm increments
• Tilt range: -15° to +15° (Torsion-Tilt mechanism)
• Colour: Black

How to use

Fix the ceiling plate to a suitable structural support using appropriate fixings (not supplied). Attach the interface arms to the screen using compatible VESA holes, then hang the screen onto the telescopic column. Adjust the drop to the desired length in 25 mm steps, level the screen using the levelling screws on the interface arms and set the required tilt using the Torsion-Tilt mechanism. Tighten the locking screws to secure the display and fit the cover plates for a finished appearance.

Recommendations

Install only to a ceiling structure capable of supporting the combined weight of the mount and screen. Use fixings appropriate for the ceiling material and verify VESA compatibility before installation. Regularly check locking screws and fixings for tightness.
