Kattoteline Vision TM-CC

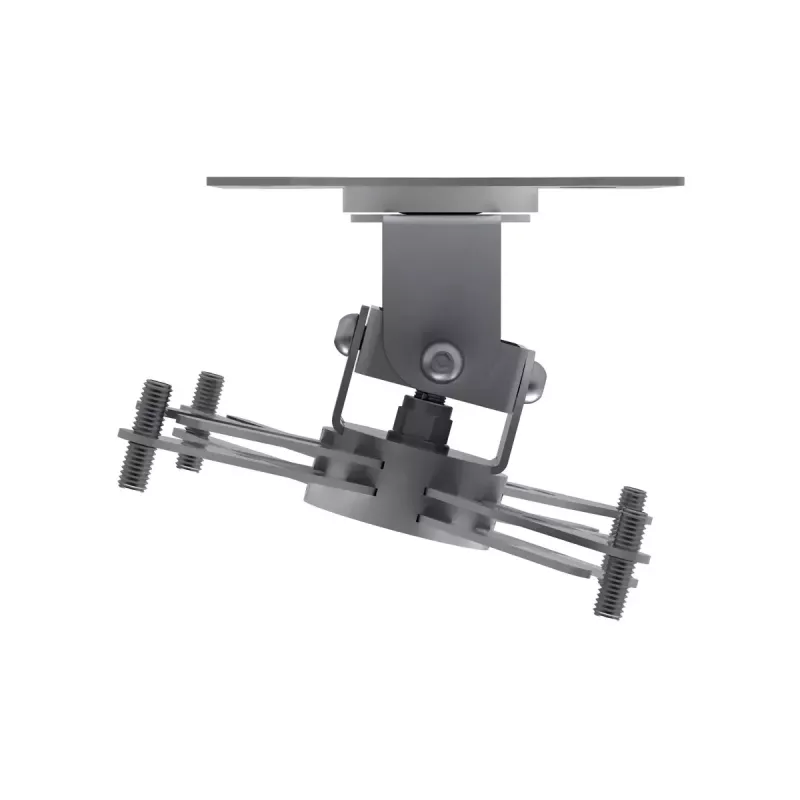

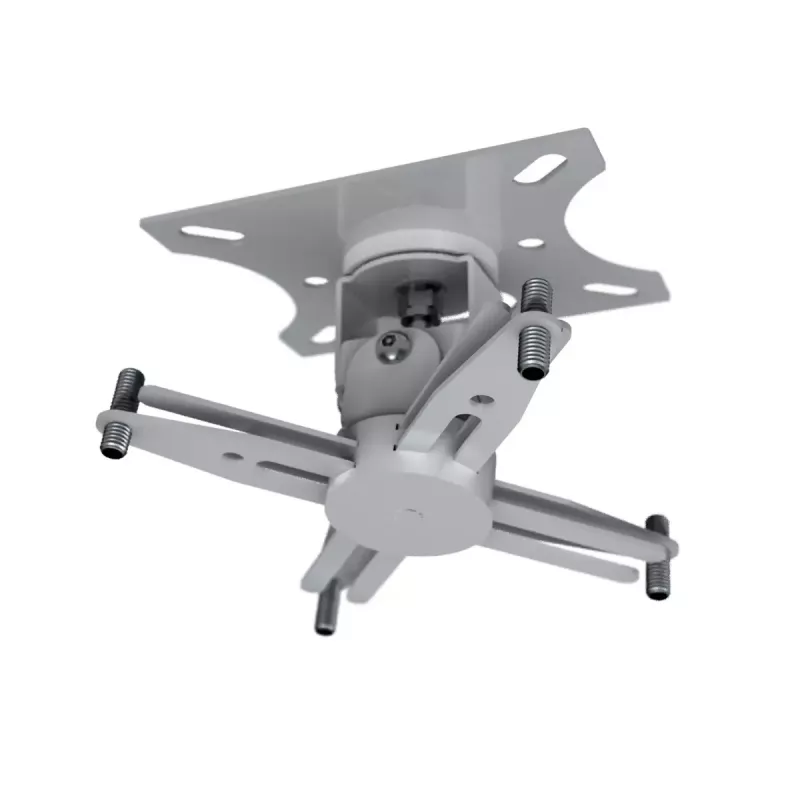

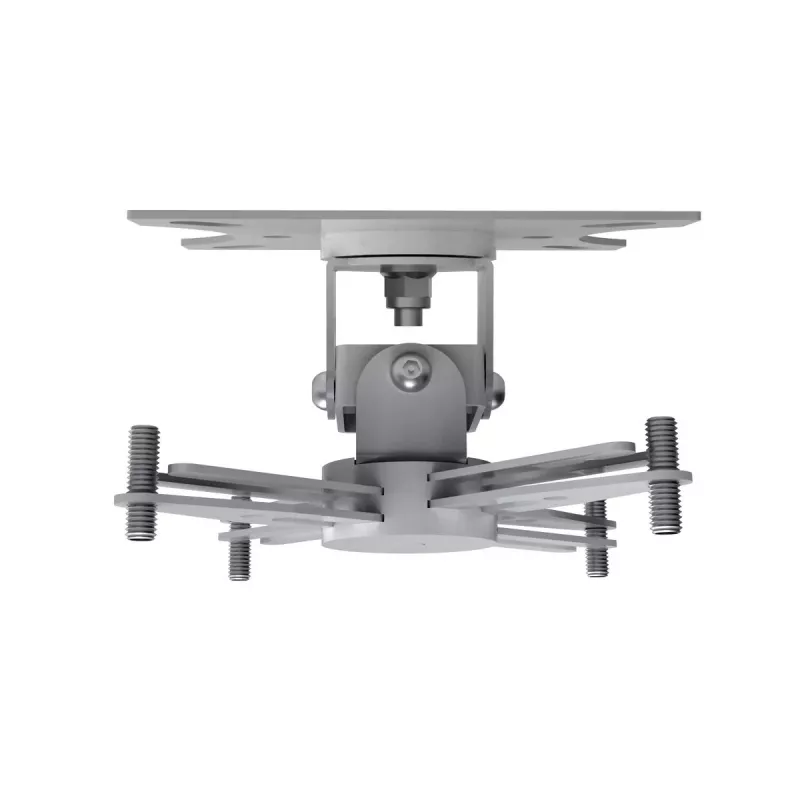

The Vision TM-CC ceiling mount is a universal projector bracket that secures the majority of data projectors to flat ceilings at a fixed distance of 110 mm. It is intended for installations where no drop pole is required and provides a stable, low-profile connection between projector and ceiling. The mount is finished in satin white to match typical ceiling tiles and includes a safety cable and hardware suited to most projector models.

Advantages

Robust, over-engineered construction provides stability and safety for projectors up to the recommended maximum safe working load (SWL) of 10 kg. The top and bottom plates rotate 360°, the adjustable spider arms extend to a maximum span of 340 mm, and an integrated tilt mechanism allows use on sloping or cathedral-style ceilings. The mount includes a selection of screws, a spanner and a pin-hex key for installation, and secure pin-hex bolts reduce the risk of quick-release tampering.

Suitable for

• Ceiling installation of data and business projectors
• Rooms with flat or sloping (cathedral) ceilings
• Environments requiring a low-profile mount with a 110 mm ceiling clearance

Key specifications

• Model: Vision TM-CC (MPN: TM-CC)
• Recommended maximum safe working load (SWL): 10 kg
• Distance from ceiling to projector: 110 mm
• Arm maximum span: 340 mm
• Rotation: top and bottom parts 360°
• Colour/finish: satin white
• Includes: safety cable, selection of screws, spanner, pin-hex key, secure pin-hex bolts

How to use

Attach the adjustable spider arms to the projector by aligning the arms over the projector’s threaded inserts and fitting the appropriate screw from the supplied selection. Secure the mount to the ceiling using suitable fixings for the ceiling material (fixings not supplied). Use the tilt mechanism if installing on a sloping ceiling and rotate the top and bottom plates as needed to orient the projector. Connect the safety cable to the projector and ceiling anchor point as an additional safety measure.

Recommendations

Verify that the projector’s weight does not exceed the 10 kg SWL and choose appropriate ceiling fixings for the substrate. Test alignment and secure all fasteners, and use the supplied secure pin-hex bolts to reduce the risk of unauthorized removal.
