Kaulus B-Tech SYSTEM 2 BT7052/B

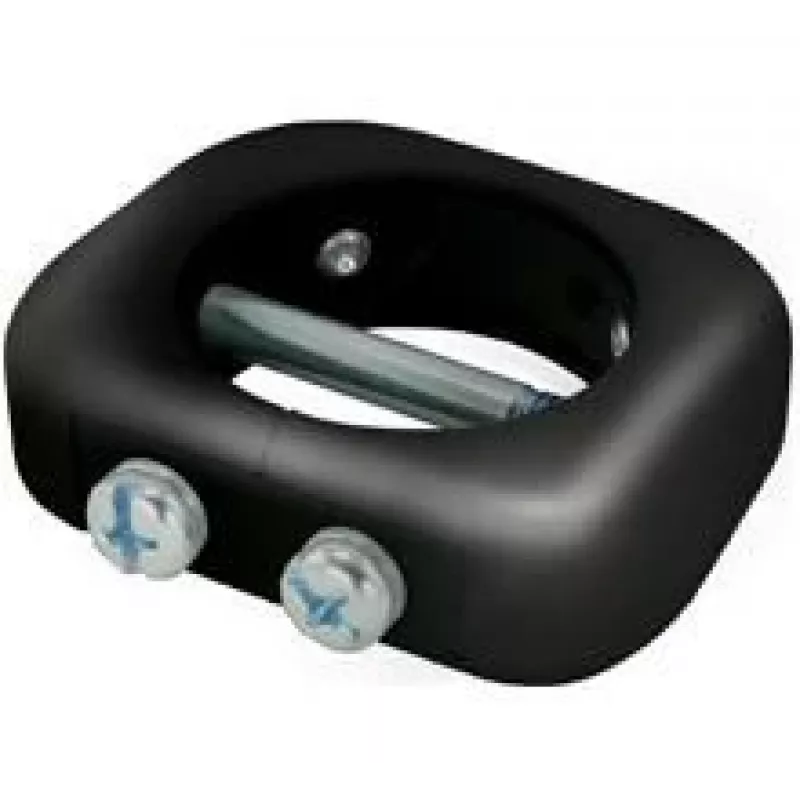

The B-Tech SYSTEM 2 BT7052/B Collar is an accessory designed to fit Ø50mm poles and provide a secure mounting point for SYSTEM 2 fittings. Finished in matte black, the collar measures 84mm wide, 68mm deep and 27mm high. It is supplied individually and is intended to create a neat, low-profile connection between pole and accessory while maintaining stability in AV, retail or structural mounting systems.

Advantages

The collar offers a precise fit for Ø50mm poles and a slim profile that keeps the installation visually unobtrusive. Its robust construction ensures a reliable clamp around the pole and reduces wobble in mounted components. The black finish is resistant to visual distractions and matches common SYSTEM 2 hardware for a consistent appearance.

Suitable for

• Mounting SYSTEM 2 brackets and accessories on Ø50mm poles
• AV installations in offices, meeting rooms and classrooms
• Retail displays and shelving that use pole-based mounting systems
• Exhibition stands and modular structures requiring secure pole connections

Key specifications

• Compatible pole diameter: Ø50mm
• Finish: matte black
• Width: 84mm
• Depth: 68mm
• Height: 27mm
• Sold as: single unit

How to use

Position the collar around the Ø50mm pole at the required height and align it with the mating SYSTEM 2 accessory. Tighten the collar according to the accessory’s recommended torque to achieve a secure fit; ensure the pole and collar contact surfaces are clean and free of debris before final tightening. Verify the mounted component for correct orientation and stability after installation.

Recommendations

For best results, use the collar with SYSTEM 2 compatible fittings and on clean, undamaged Ø50mm poles. Periodically inspect the clamp and fastenings, especially in high-traffic or vibration-prone environments, and retighten if any movement is detected.
