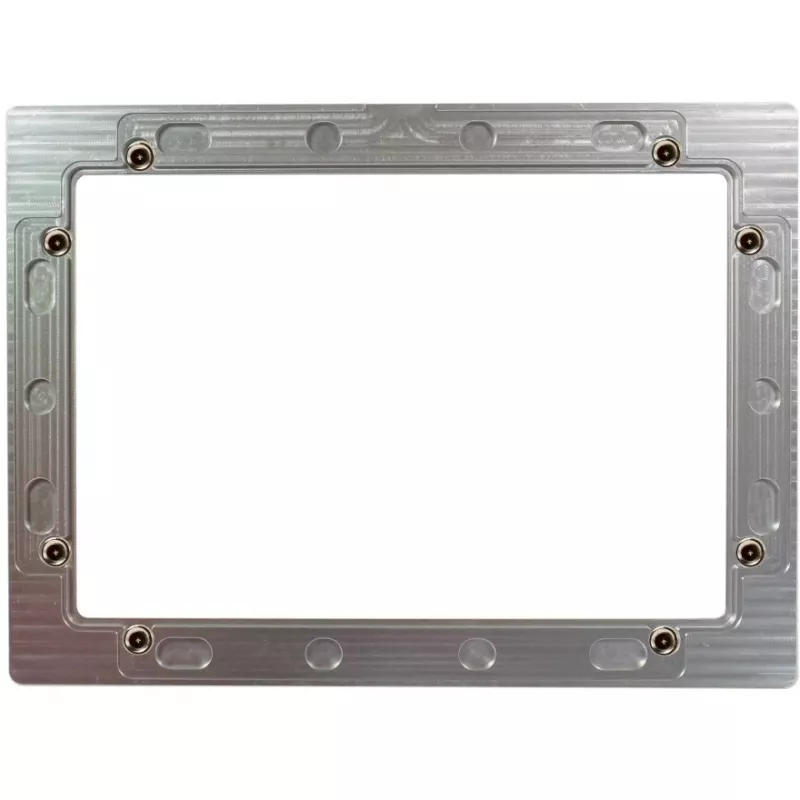

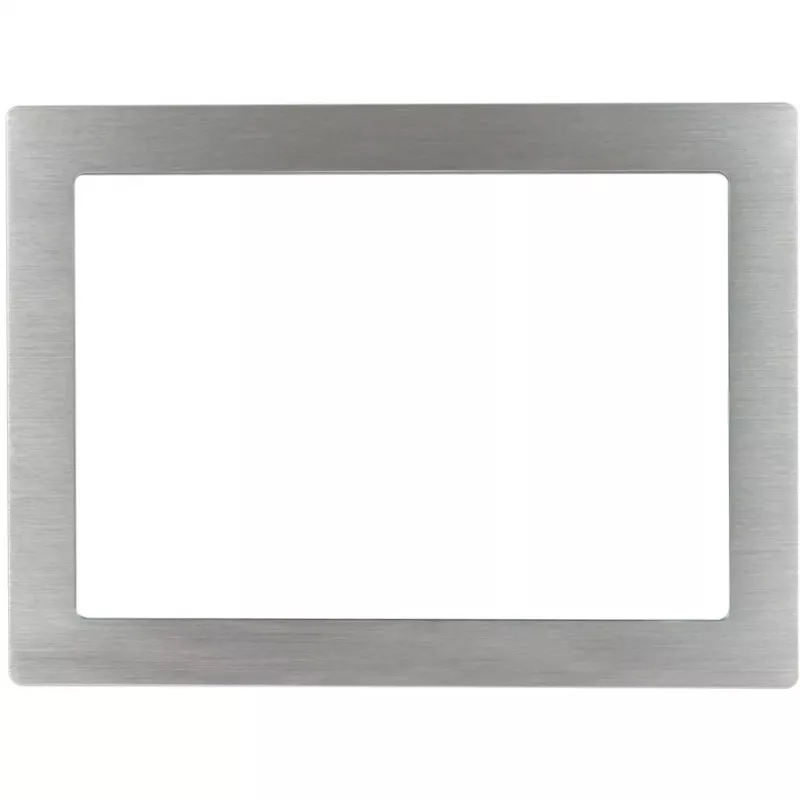

Kehys ALLNET-tabletille ALLTCover12NSv1 — hopea, paino 340 g

Bezel for ALLNET tablet ALLTCover12NSv1 in silver. This slim front frame is designed as a replacement or mounting trim for 12" touch display installations and is compatible with ALLNET devices. The cover is made of high-quality aluminium and has a surface-mounted design that sits flush with the installation frame and wall. The distance between the bezel and the touchscreen is minimised to allow easier operation close to the display edges. The product weight is approximately 340 g and the part is manufactured in China.

Advantages

The redesigned aluminium bezel provides a near-flush finish with the installation frame for a neat wall appearance while keeping the outer profile narrow. Reduced gap between bezel and touchscreen improves touch accessibility in peripheral areas. Magnets are provided for secure attachment and can be fastened to the panel so they do not protrude. The cover is lightweight yet rigid, providing a stable mounting trim for repair or retrofit installations.

Suitable for

• Replacing a damaged or worn front frame on compatible ALLNET 12" touch displays
• Embedding an ALLNET 12" tablet into an installation or wall-mounted frame
• Panel replacement during service or refurbishment of touch display installations
• Use where a slim, near-flush aesthetic between frame and wall is required

Key specifications

• Material: aluminium (high-quality)
• Colour: silver
• Compatible display size: 30.5 cm (12") touch display
• Design: narrow, surface-mounted bezel with flush finish
• Attachment: magnets provided and screwable into panel (non-protruding when installed)
• Weight: approx. 340 g
• Origin: China

How to use

Remove the existing bezel or mounting trim according to the device manufacturer's instructions. Position the ALLTCover12NSv1 bezel over the tablet so that the bezel aligns with the installation frame and touchscreen edges. Fasten the provided magnets to the panel where indicated and secure them with screws; ensure magnets and fasteners are recessed or flush to prevent protrusion. Verify alignment and that the bezel sits flush with the frame and wall. Test touchscreen responsiveness at the edges after installation to confirm minimal clearance is maintained.

Recommendations

For best results, install the bezel in a clean, dust-free environment and follow the ALLNET installation guidelines for the corresponding 12" touch display. Use appropriate torque when fastening screws to avoid deformation of the aluminium trim. If used in public or high-traffic areas, check mounting points periodically for tightness.
