Kehyssarja Keystone-moduuleille Digitus AN-25178

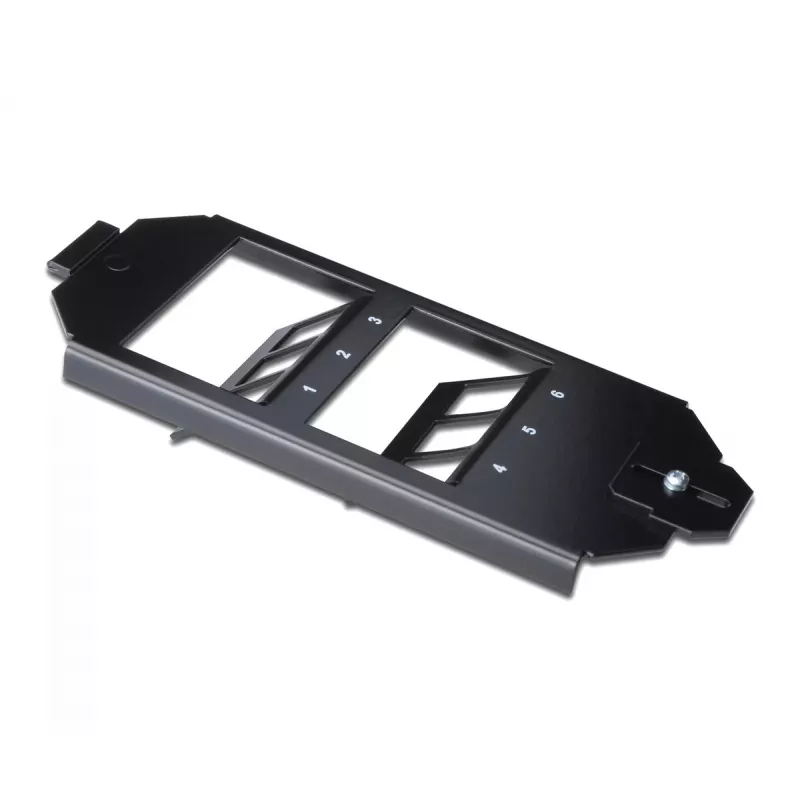

Frame set suitable for Ackermann GES 2, 4, 6, R4, R7. The DIGITUS® Frame set for Keystone Modules provides a metal adapter frame for mounting standard keystone modules. Available in two- and three-level versions, it supports tidy arrangement and secure fixation of modules in structured cabling installations. The frame is made of durable metal, finished in black, and supplied as a single piece in a polybag.

Advantages

The metal construction ensures long-lasting stability and reliable support for keystone modules. Compact dimensions (75 mm width x 190 mm height x 20 mm thickness) allow installation in confined spaces while maintaining compatibility with Ackermann GES 2, 4, 6, R4 and R7 systems. Supplied ready to install and packaged individually for convenient storage and handling.

Suitable for

• Mounting keystone modules in wall plates and patch panels
• Retrofit or renewal of existing Ackermann GES 2, 4, 6, R4, R7 installations
• Organizing small structured cabling outlets in offices or server rooms

Key specifications

• Brand: DIGITUS
• Model / MPN: AN-25178
• EAN: 4016032302261
• Material: metal
• Colour: black
• Dimensions: 75 mm (W) x 190 mm (H) x 20 mm (thickness)
• Versions: 2-level (6x Keystone) or 3-level (9x Keystone)
• Package contents: 1 frame set in polybag
• Origin: China

How to use

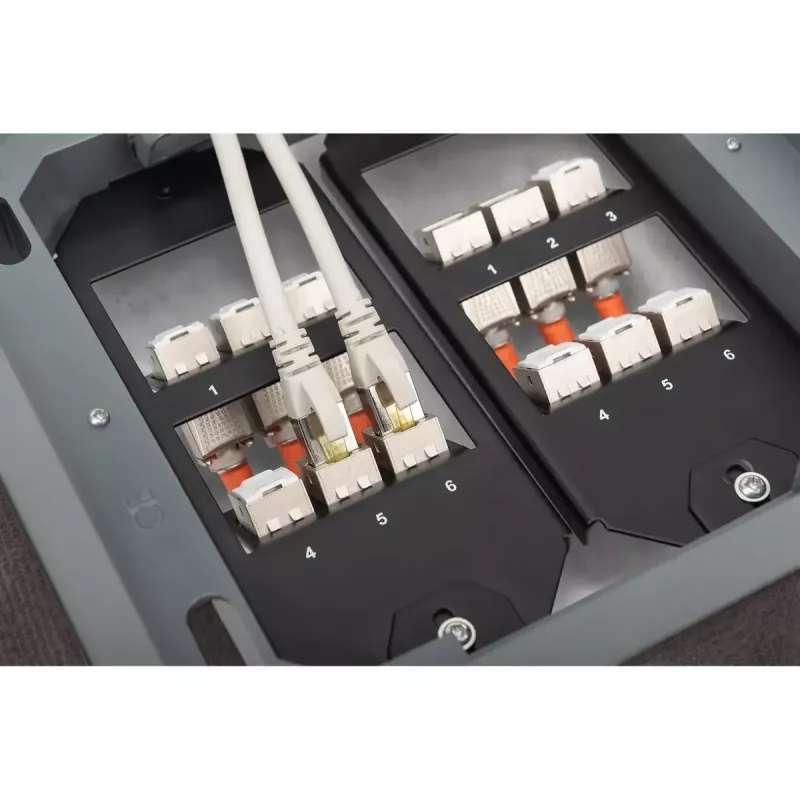

Choose the frame version (2-level or 3-level) that matches the number of keystone modules required. Insert keystone modules into the module openings until they click into place, then mount the assembled frame into the compatible Ackermann GES wall plate or panel according to the plate’s installation instructions. Ensure modules are oriented correctly and that cables are routed to avoid strain on connections.

Recommendations

For reliable performance, use compatible Ackermann GES wall plates (GES 2, 4, 6, R4, R7) and factory-standard keystone modules. Avoid excessive force when inserting modules and confirm clearances in the installation site to accommodate the frame dimensions.
