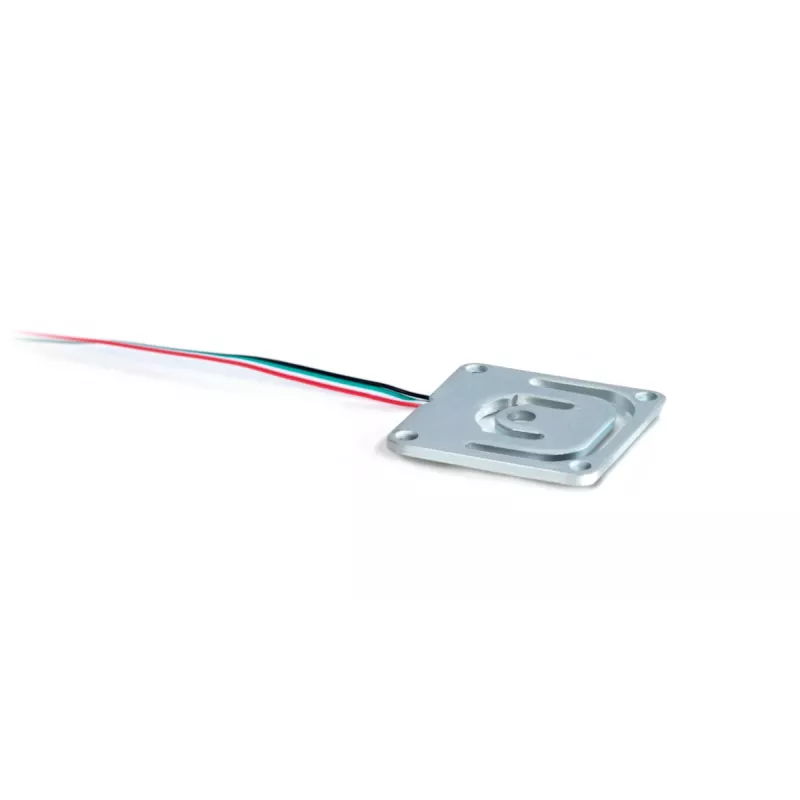

Kern CK 10-Y1 yksipisteinen punnitusanturi 10 kg C3 alumiini IP65

Accurate weighing starts with a reliable load cell. The Kern CK 10-Y1 is a single point load cell with a rated capacity of 10 kg, built for industrial and laboratory scales where precision and durability are required. Its C3 accuracy class ensures consistent measurements, while the IP65 protection allows use in environments where dust or water splashes are present.

Who is it for

This load cell suits scale manufacturers, system integrators, and maintenance technicians who need a dependable weighing component for bench scales, counting scales, or checkweighers. It is also a direct replacement part for existing Kern weighing systems.

Main features

• Single point design handles off-center loads with minimal error
• Rated capacity 10 kg, safe overload 150% (15 kg)
• Aluminum body with IP65 protection against dust and water jets
• Output sensitivity 2.0 mV/V ± 0.2% for stable signal
• 3 m cable for flexible installation

Specifications

• Load cell type: Single point
• Rated capacity: 10 kg
• Accuracy class: C3
• Material: Aluminum
• Protection class: IP65
• Output sensitivity: 2.0 mV/V ± 0.2%
• Input resistance: 400 ± 10 Ω
• Output resistance: 350 ± 3 Ω
• Insulation resistance: ≥ 5000 MΩ (at 50V DC)
• Operating temperature range: -10 °C to +40 °C
• Compensated temperature range: -10 °C to +40 °C
• Safe overload: 150% of rated capacity (15 kg)
• Ultimate overload: 300% of rated capacity (30 kg)
• Recommended excitation voltage: 5-12 V DC
• Maximum excitation voltage: 15 V DC
• Cable length: 3 m
• Mounting hole diameter: M6
• Mounting hole distance (length): 120 mm
• Mounting hole distance (width): 20 mm

Tips

For best accuracy, mount the load cell on a flat, rigid surface and avoid twisting the cable during installation. Use a stable excitation voltage within the recommended range to prevent signal drift.
