Keskeytymätön virransyöttö Eaton 9PX1500IRTM

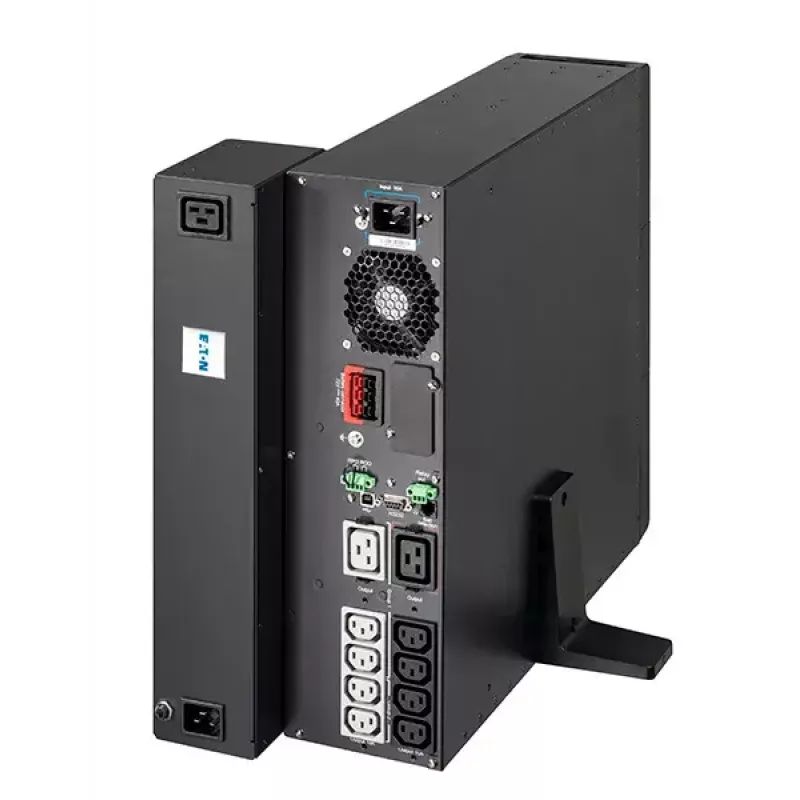

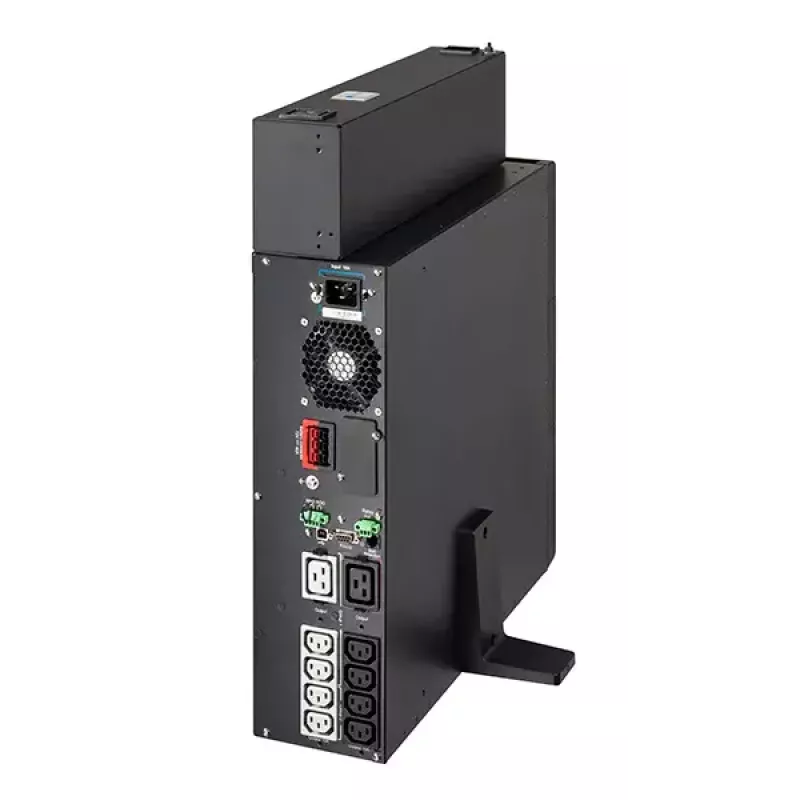

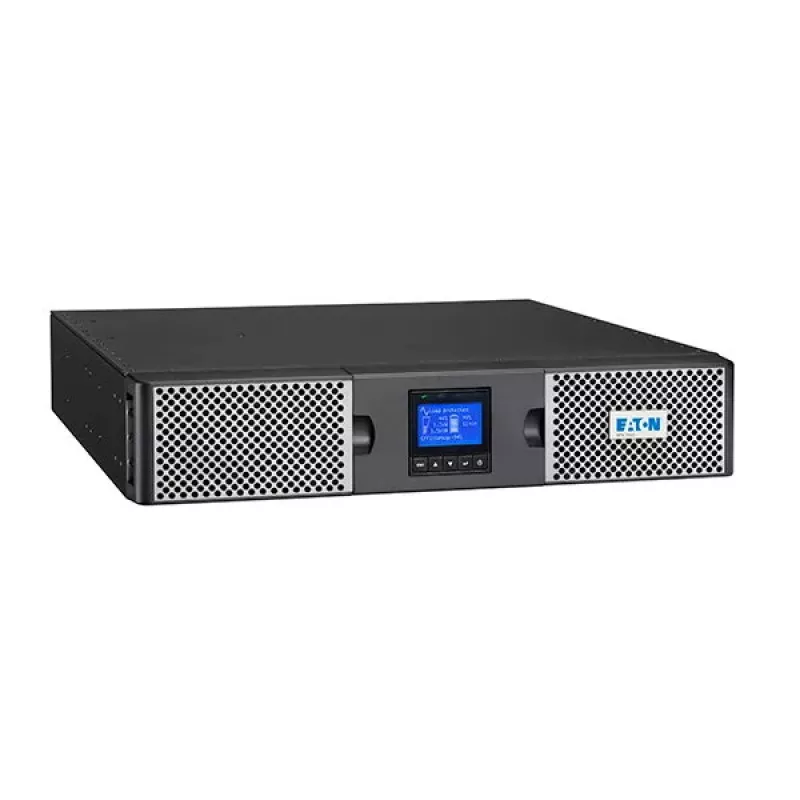

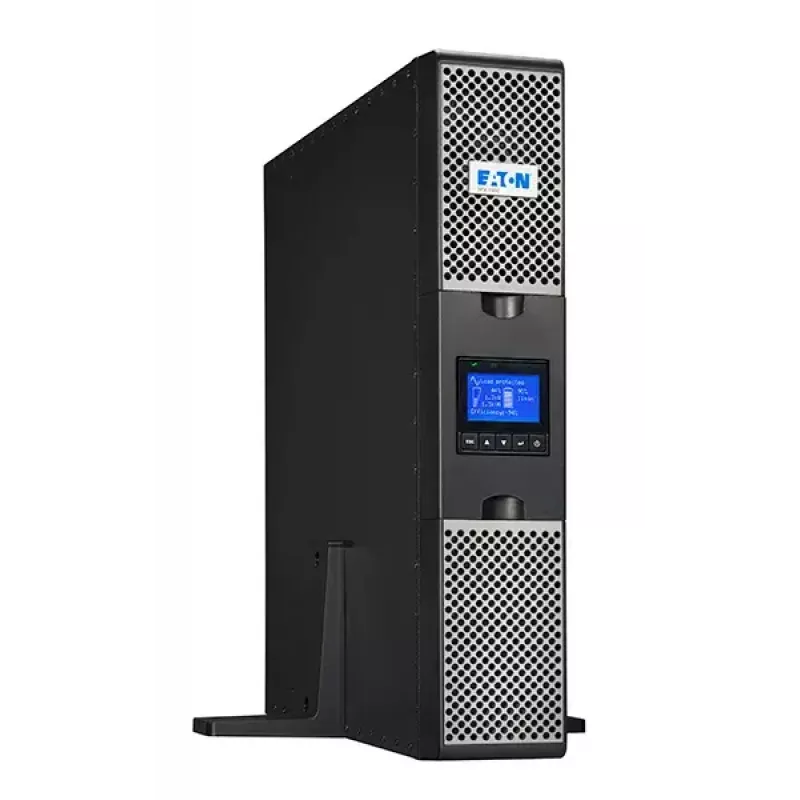

The Eaton 9PX1500IRTM Uninterruptible Power Supply is a 1.5 kVA double-conversion online UPS delivering 1500 W of output power with a unity power factor (VA = W). Designed for rackmount or tower installation in a 2U form factor, it provides eight C13 AC outlets, a sealed lead-acid battery and a typical runtime of approximately 14 minutes at half load. The UPS meets industry standards including IEC/EN 62040-1 and UL 1778 and is Energy Star qualified for improved efficiency and lower cooling and energy costs.

Advantages

The Eaton 9PX1500IRTM offers true power matching through unity power factor, enabling 11% more usable power compared with similarly rated UPS models. Its double-conversion topology ensures continuous clean power to connected equipment, while Energy Star qualification and a high-efficiency design reduce operational energy consumption and cooling requirements. The unit’s 2U form factor supports flexible rackmount or tower deployment.

Suitable for

Key specifications

How to use

Install the Eaton 9PX1500IRTM in a rack or place it as a tower on a stable surface, ensuring adequate ventilation and ambient temperature within the manufacturer’s recommended range. Connect critical equipment to the C13 outlets and use the USB 2.0 port for monitoring when required. Verify battery charge and perform initial configuration according to the user manual before putting connected devices into production. Test the UPS and graceful shutdown procedures periodically to confirm expected runtime and behaviour under load.

Recommendations

For reliable backup performance, maintain the battery by following the manufacturer’s maintenance schedule, avoid overloading beyond the 1500 W rating, and keep the unit in a climate-controlled environment. Use certified cables and grounding practices when installing in racks or telecom environments.
