Keskeytymätön virransyöttö Eaton Ellipse PRO 850 DIN

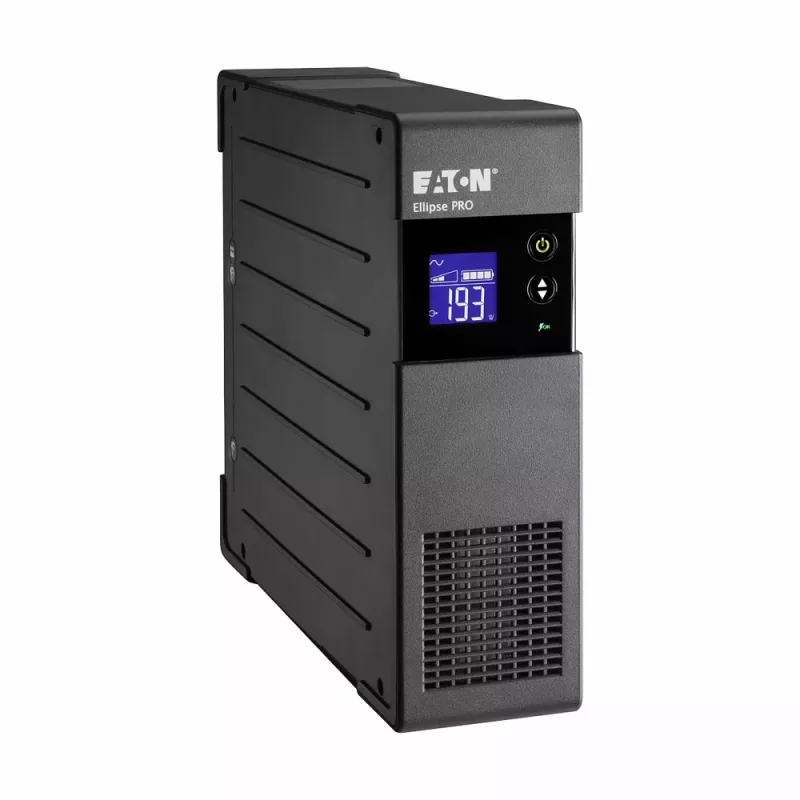

The Eaton Ellipse PRO 850 DIN is a line-interactive uninterruptible power supply (UPS) designed to protect workstations and peripherals running demanding applications. It delivers 0.85 kVA (510 W) output from a compact, extra-flat tower/rack-capable unit and includes an LCD for real-time status and measurements, EcoControl outlets for energy savings, and surge protection that meets IEC 61643-1 requirements.

Advantages

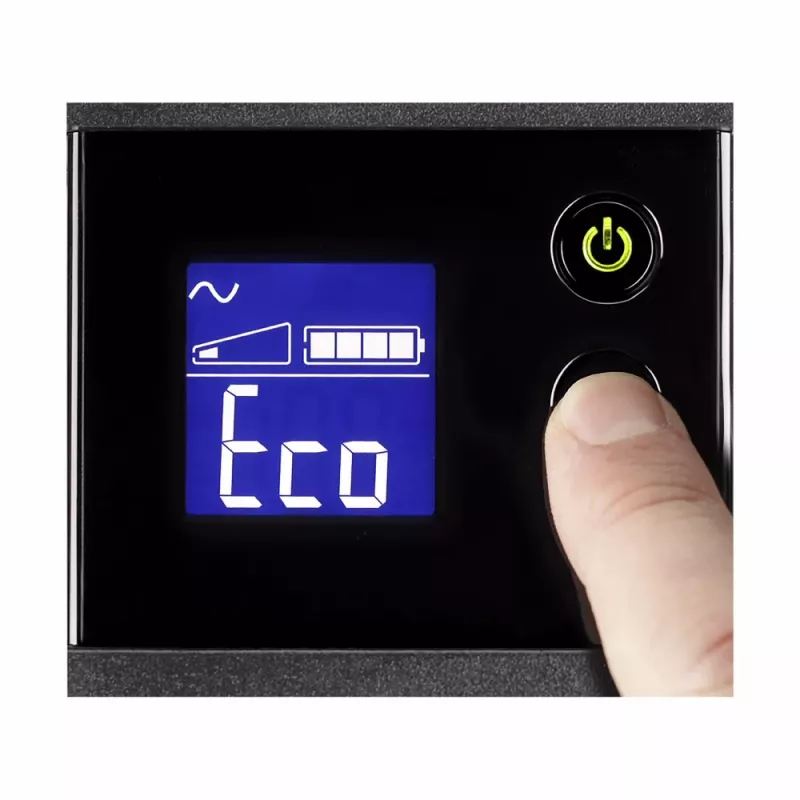

The UPS provides clean output with Automatic Voltage Regulation (AVR) featuring both buck and boost actions, supports safe shutdown and configuration via a USB port and Eaton UPS Companion software, and offers up to four Type F AC outlets for connecting a PC and peripherals. EcoControl functionality can reduce energy consumption compared with prior-generation UPS models, while advanced surge reduction protects both power and data connections.

Suitable for

• Office workstations and desktop PCs
• Small server or network devices requiring short backup time
• Peripherals such as monitors, external drives and VoIP/telephony equipment
• Environments where AVR and IEC-compliant surge protection are needed

Key specifications

• Model: Eaton Ellipse PRO 850 DIN (ELP850DIN)
• Output power capacity: 0.85 kVA / 510 W
• AC outlets: 4 Type F outlets
• Battery: sealed lead-acid, typical backup ~9 minutes at half load

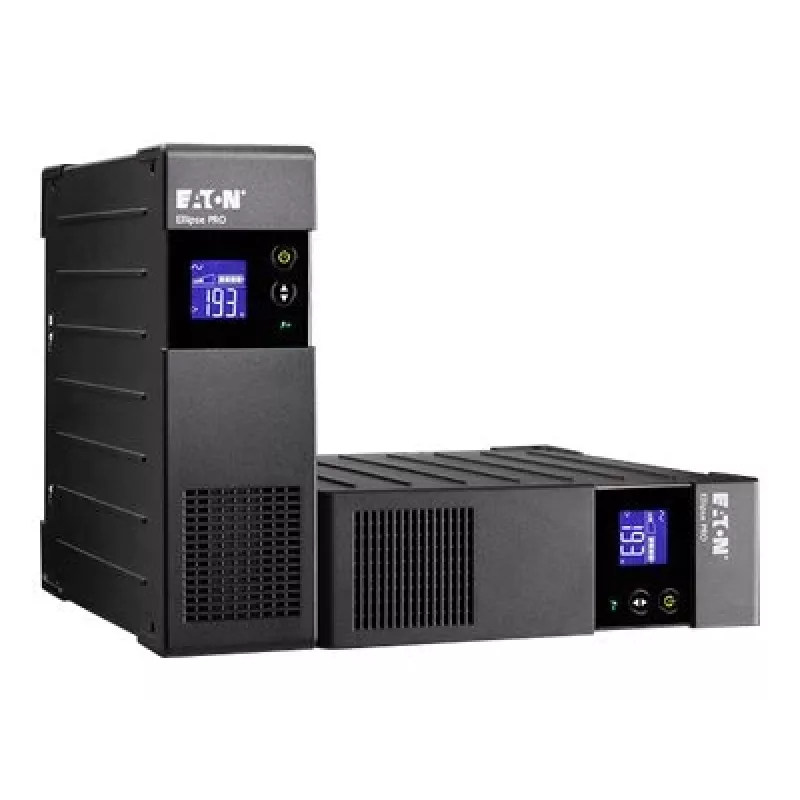

• Form factor: tower; 2U rack capacity / extra-flat design
• Ports: 1 × USB 2.0
• Safety and standards: IEC/EN 62040-1, IEC/EN 62040-2, CB, CE; surge protection per IEC 61643-1
• Colour / Weight: Black / 7.3 kg

How to use

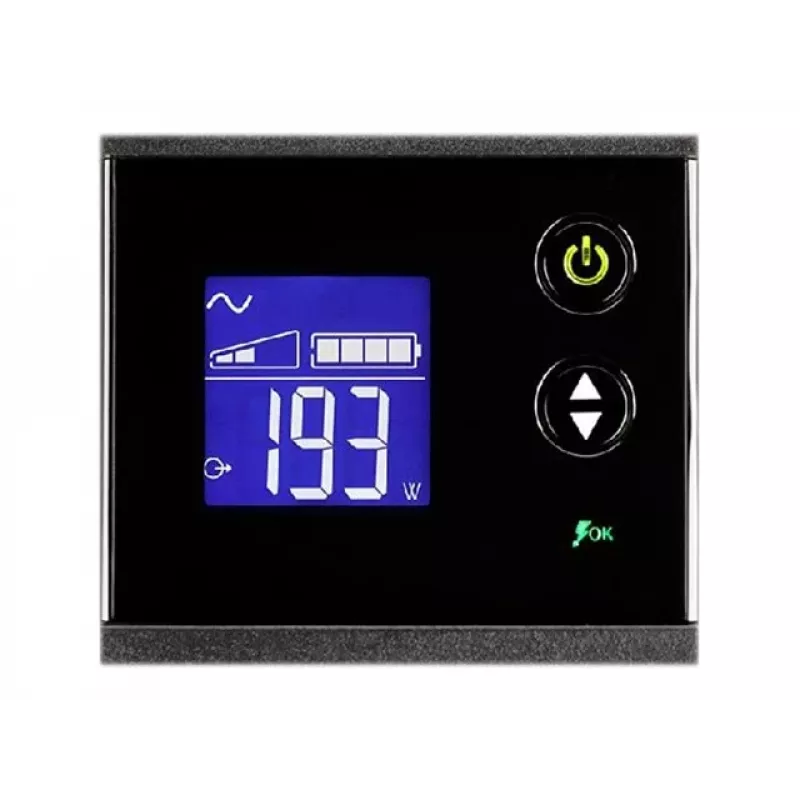

Install the Eaton Ellipse PRO 850 DIN on a stable surface or in compatible 2U rack space, connect the UPS to mains power, and plug your PC and peripherals into the Type F outlets. Use the LCD to monitor real-time status and measurements. Connect the USB port to a host computer and install Eaton UPS Companion software to enable automatic safe shutdown, energy metering and configuration of UPS settings. Test the setup by simulating a power interruption to confirm the expected backup behaviour.

Recommendations

Place the UPS in a ventilated area away from heat sources, do not overload the unit beyond the 510 W rating, replace the sealed lead-acid battery according to manufacturer intervals or when runtime degrades significantly, and ensure connected data lines are protected if using surge-protection for Ethernet/telephone lines.
