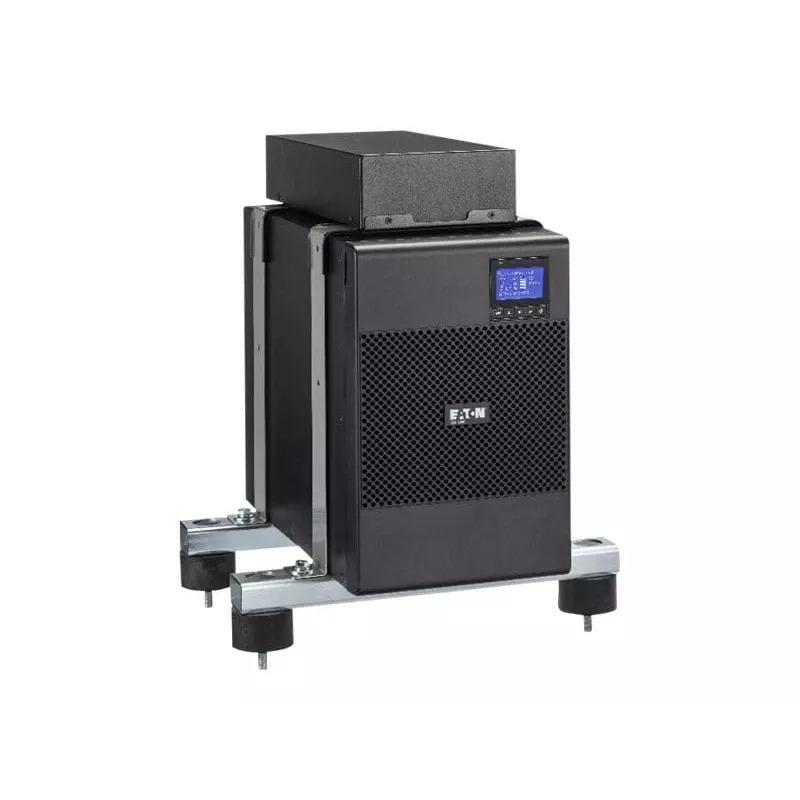

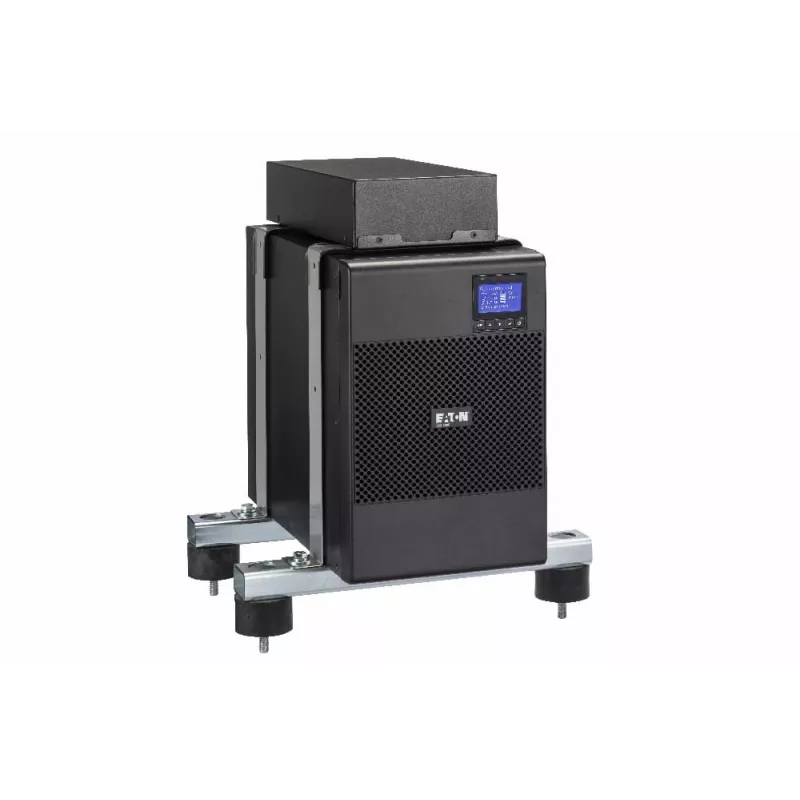

Keskeytymätön virransyöttö UPS Eaton 9SX3000IM

The Eaton 9SX3000IM is an online double-conversion uninterruptible power supply (UPS) with 3 kVA (2700 W) output capacity, designed to protect critical equipment from mains disturbances. The unit comes in a black tower chassis and provides nine AC outlets (combination of C13 and C19), an RS-232 serial interface and a USB 2.0 port. It complies with IEC/EN 62040-1 and UL 1778 safety standards and has compact dimensions of 214 mm (W) x 412 mm (D) x 346 mm (H).

Advantages

The Eaton 9SX3000IM delivers continuous online double-conversion topology for consistent voltage and frequency regulation, ensuring stable power to connected devices. Its nine AC outlets and mixed C13/C19 configuration support a variety of loads, while multiple communication ports (RS-232 and USB 2.0) enable monitoring and integration with management systems. The unit’s certifications confirm adherence to international safety standards, and the tower form factor simplifies placement in server rooms, network closets or industrial control areas.

Suitable for

Key specifications

How to use

Place the UPS on a stable, level surface with adequate ventilation and connect the Eaton 9SX3000IM to the mains supply following local wiring regulations. Plug critical equipment into the supplied AC outlets according to power requirements and avoid overloading the UPS beyond its 2700 W rating. Use the RS-232 or USB 2.0 port to connect to a management console or monitoring software for configuration, status monitoring and safe shutdown procedures. Perform regular battery and system checks as recommended by the manufacturer.

Recommendations

For reliable operation, install the UPS in a temperature-controlled environment, maintain clear airflow around the unit, and ensure periodic firmware and battery maintenance. Verify connected load does not exceed 3 kVA (2700 W) and use monitoring tools to configure automated shutdowns during extended outages.
