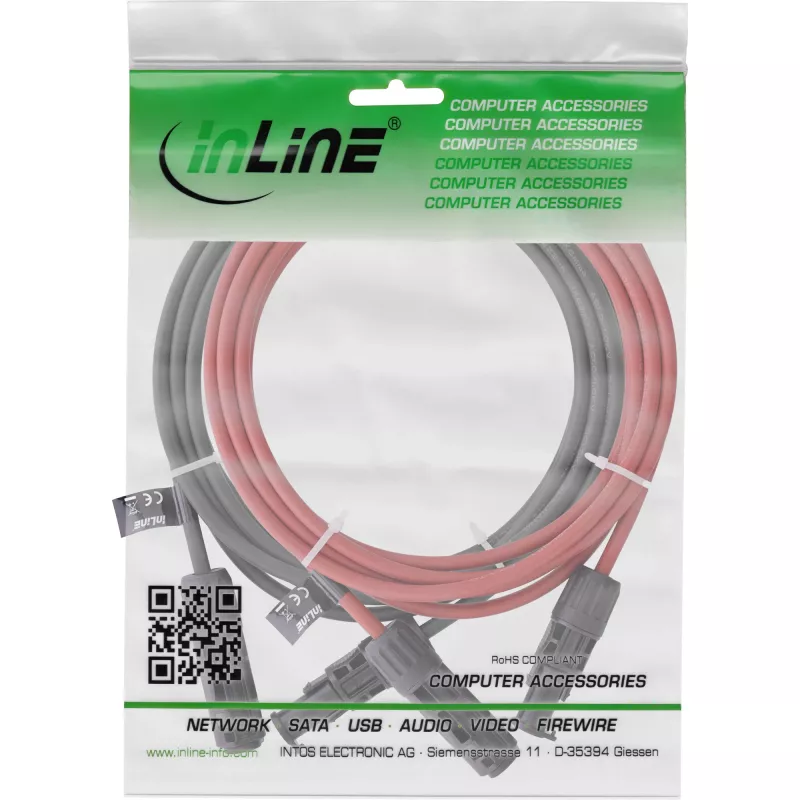

InLine aurinkokaapelin jatkosarja 95405 aurinkoliittimillä, 4 mm², musta/punainen, 5 m

The InLine Solar Cable Extension Set 95405 is a pre-assembled solar cable set with H1Z2Z2-K cable, 4 mm², supplied in black and red with solar plugs and sockets. It is designed for wiring photovoltaic systems and offers a nominal voltage of 1.0/1.0 kV AC and an operating voltage of 1.5 kV DC according to EN 50618.

Key features

• H1Z2Z2-K solar cable, 4 mm², fine-wired tinned copper conductor
• Pre-assembled solar plugs/sockets (MC4, Standard4, PC4 compatible) including dust caps
• Ozone, weather and UV resistant; flame resistant according to EN 60332-1-2, LS0H
• Halogen-free, low-smoking, cross-linked polyolefin (XLPO) insulation
• Easy installation thanks to flexibility and robust construction

Specifications

• Brand: InLine
• MPN: 95405
• Product colour: Black
• Type: Solar cables
• Length: 5 m
• Conductor cross-section: 4 mm²
• Conductor material: Copper, tinned
• Nominal voltage: 1.0/1.0 kV AC
• Operating voltage: 1.5 kV DC according to EN 50618
• DC line resistance: 5.0 Ohm/km
• Voltage test on cable: AC 6.5 kV, DC 15 kV
• Current carrying capacity: Tested according to EN 50618
• Outer cable diameter: 5.5 mm
• Nominal wall thickness of insulation: 0.7 mm
• Nominal wall thickness of coating: 0.8 mm
• Min. bending radius: 22 mm
• Ambient temperature: -40°C to +90°C
• Side A: Solar connector (2x)
• Side B: Solar socket (2x)
• Colour: Black/red
• Shielding: Unshielded
• Signal: Power
• Country of origin: Taiwan
• EAN: 4043718334629
