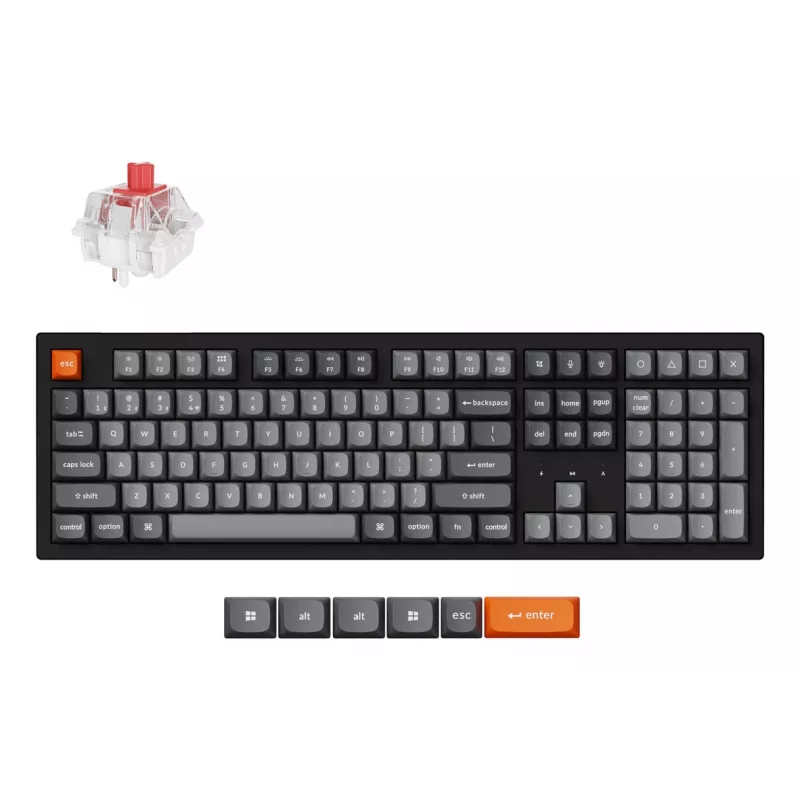

Keychron K10 Max QMK -näppäimistö yleismalli USB RF Wireless Bluetooth musta

Keychron K10 Max is a wireless custom mechanical keyboard with a full-size 100% layout. It supports 2.4 GHz wireless, Bluetooth 5.1, and wired USB connections. The keyboard is configurable via QMK firmware and the Keychron Launcher web app, and it includes keycaps for both Windows and macOS. The hot-swappable version allows easy replacement of MX-style switches without soldering.

Advantages

The K10 Max offers a high polling rate (1000 Hz) on 2.4 GHz and wired modes for low latency, multi-device Bluetooth pairing for up to three devices, and advanced acoustic foams (IXPE, PET, EPDM) plus a steel plate and added weight to improve typing sound and stability. It ships with OSA-profile double-shot PBT keycaps and screw-in PCB stabilizers for reduced wobble on large keys. An ARM MCU with 256 KB flash enables flexible programming and reliable performance.

Key specifications

• Layout: Full-size (100%) with numeric keypad
• Connectivity: 2.4 GHz wireless (1000 Hz polling), Bluetooth 5.1 (up to 3 devices), USB wired
• Firmware: QMK-compatible; configurable via Keychron Launcher web app
• Switches: Hot-swappable 3-pin/5-pin MX-style (hot-swap version only); Keychron Super switch available
• Keycaps: OSA profile double-shot PBT; includes Windows and macOS keycaps
• Backlight: South-facing RGB with 22+ effects; adjustable hue, saturation, brightness, speed
• Stabilizers: Screw-in PCB stabilizers (supports third-party screw-in PCB stabilizers)
• Acoustic layers: IXPE, PET, EPDM foams; steel plate; added weight for stability
• MCU & memory: ARM architecture MCU with 256 KB flash
• Colors & quantity: Black; 1 piece

How to use

Connect the keyboard via USB, pair it over Bluetooth 5.1 with up to three devices, or use the 2.4 GHz dongle for low-latency wireless. Install or open the Keychron Launcher web app to remap keys, program macros, and save layouts. For deeper customization, flash QMK-compatible firmware using supported tools following QMK documentation. If your model is hot-swappable, remove switches with a switch puller and insert compatible 3-pin or 5-pin MX-style switches without soldering.

Recommendations

For the best gaming responsiveness use the 2.4 GHz mode or wired USB connection. When customizing keycaps or stabilizers, ensure compatibility with south-facing LED layouts and screw-in PCB mounts. Regularly update firmware via Keychron Launcher or QMK tools to access improvements and new features.
