Keystone-moduuli DeLOCK 86344

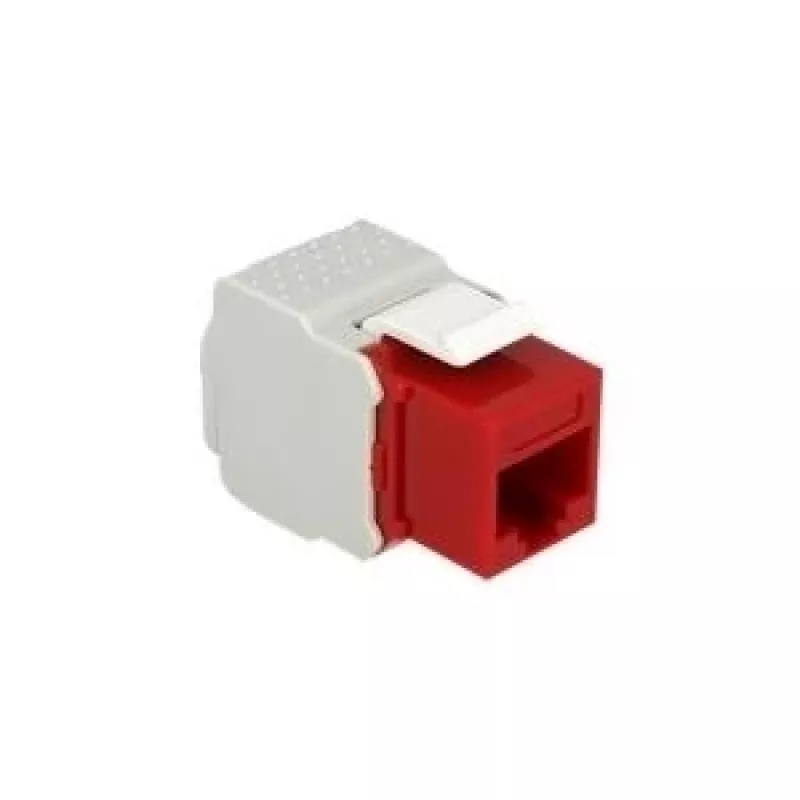

The DeLOCK 86344 keystone module is a compact red module designed to connect twisted-pair cable to an RJ45 female port. With standardized keystone dimensions and an RJ-45 jack combined with an LSA (punch-down) connector, it fits into Keystone patch panels, faceplates or surface-mount boxes for straightforward installation in structured network cabling.

Advantages

The module provides a reliable RJ45 interface and an LSA termination for secure, tool-assisted cable connection. Its standardized form factor enables snap-in mounting into compatible keystone openings, saving space while offering consistent mechanical and electrical performance. The red colour helps visually identify the port in mixed installations.

Suitable for

• Structured network cabling installations
• Patch panels and wall plates with keystone openings
• Surface-mount boxes and small distribution boxes
• Termination of twisted-pair (UTP/STP) network cables using LSA/punch-down tools

Key specifications

• Brand: DELOCK
• Model / MPN: 86344
• EAN: 4043619863440
• Connector A: RJ-45 female (keystone)
• Connector B: LSA / punch-down termination
• Colour: Red

How to use

Insert the module into a compatible keystone opening in a patch panel, faceplate or surface-mount box until it snaps into place. Strip the cable jacket and terminate each conductor into the LSA/punch-down block according to the chosen wiring standard (T568A or T568B). Use an appropriate punch-down tool to secure the wires and trim excess conductor. After termination, connect an RJ45 plugged cable into the front RJ-45 port as required.

Recommendations

For reliable network performance, follow standard termination procedures, select the appropriate wiring scheme (T568A/B), use a quality punch-down tool, and verify connections with a cable tester after installation.
