Keystone-moduuli DeLOCK 86356

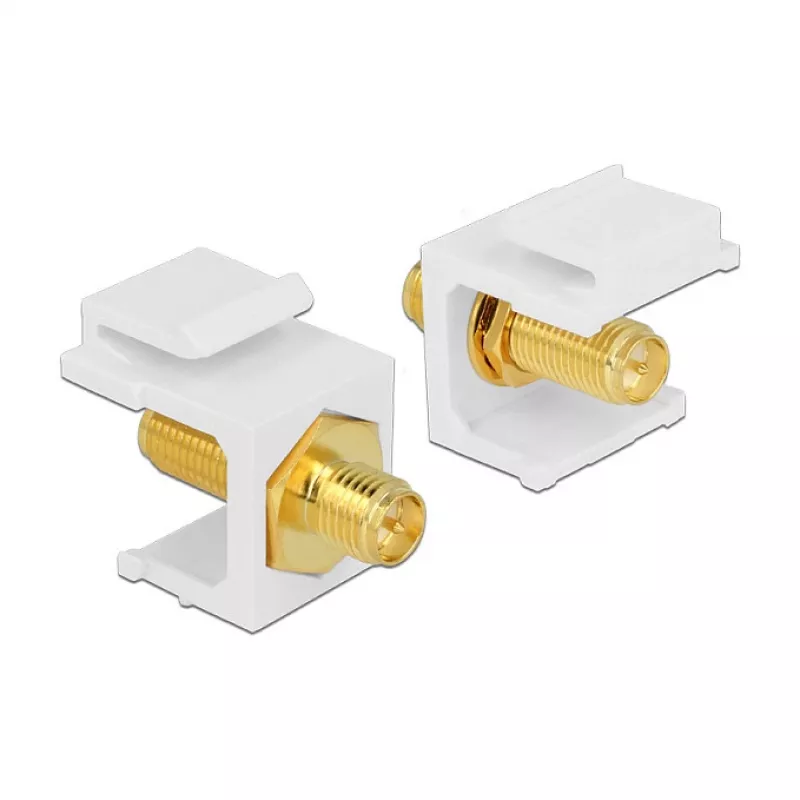

The DeLOCK 86356 keystone module provides a compact and standardized solution to extend RP-SMA connections. Designed for snap-in mounting in keystone-compatible panels, faceplates or surface-mount boxes, the module features two RP-SMA connectors in a compact housing with a width of 22.3 mm and a height of 16.3 mm. Its white colour and robust construction make it suitable for RF and Wi‑Fi antenna installations where a reliable pass-through or panel-mounted connector is required.

Advantages

The keystone format ensures simple snap-in installation into standard patch panels, faceplates or surface-mount boxes without additional tools. Dual RP-SMA connectors allow connection of two RF cables or antennas. Standardized dimensions (22.3 mm x 16.3 mm) provide compatibility with common keystone openings, and the solid construction supports durability in permanent installations.

Suitable for

• Panel- or faceplate-mounted Wi‑Fi antenna connections
• Extending RP-SMA coaxial connections through keystone panels
• RF test setups requiring easy connector mounting
• Surface-mount boxes that accept keystone modules

Key specifications

• Brand: DELOCK
• Model / MPN: 86356
• EAN: 4043619863563
• Connector type: 2 × RP‑SMA
• Format: Keystone module
• Dimensions (W × H): 22.3 mm × 16.3 mm
• Colour: White

How to use

Insert the module into a compatible keystone opening until it snaps into place. From the rear side, attach RP‑SMA cables or antennas to the corresponding connectors and tighten by hand or with a suitable torque if required by the cable/antenna manufacturer. Ensure connectors are aligned and secured to avoid strain on the cable and to maintain RF performance.

Recommendations

Use the module with keystone-compatible panels, faceplates or surface-mount boxes. Avoid over-tightening RP‑SMA connectors and protect connections from moisture and mechanical stress to preserve signal quality and connector longevity.
