Keystone-moduuli DeLOCK 89639

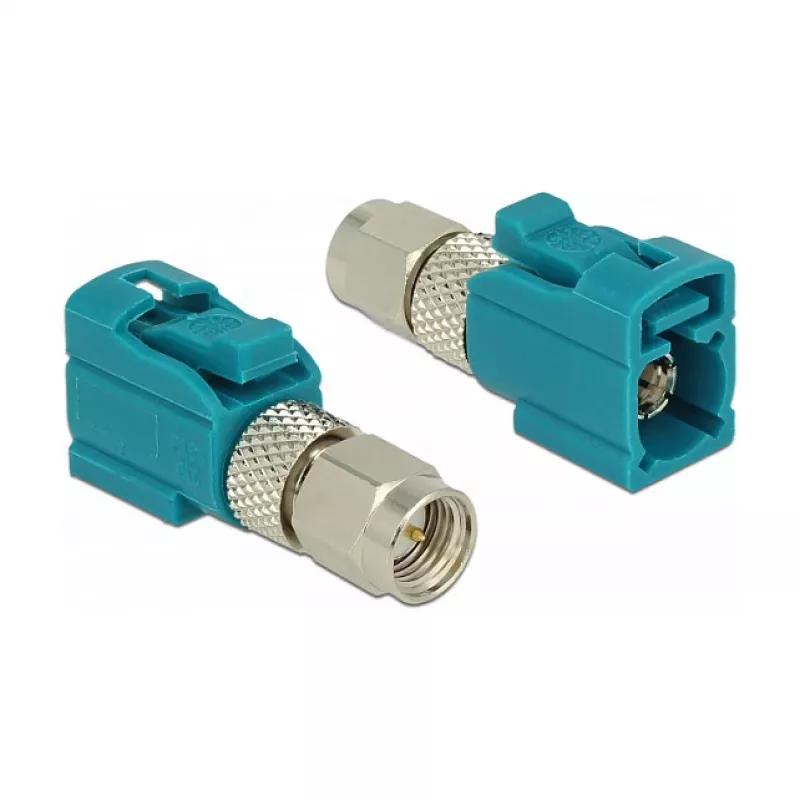

The DELOCK 89639 keystone module is a flat, single-piece connector module designed for radio frequency technology. It has a blue metallic finish and integrates a FAKRA Z connector in a compact housing measuring 9.4 mm (W) × 29.7 mm (D) × 13.6 mm (H). The module is supplied individually and is intended for use where a reliable RF connection is required.

Advantages

The flat construction and compact dimensions allow space-saving installation in standard keystone panels or wall plates. The integrated FAKRA Z connector ensures standardized RF mating and stable signal transmission. The metallic blue finish provides corrosion resistance and a uniform appearance when installed alongside other modules.

Suitable for

Key specifications

How to use

Insert the keystone module into a compatible keystone opening or faceplate until it snaps into place. Connect the mating FAKRA Z plug to the module’s connector, ensuring correct alignment and secure engagement. For removal, depress the retention clip (if present) and pull the module out of the keystone opening. Follow vehicle or equipment manufacturer guidelines when routing RF cables.

Recommendations

Use the module in installations that accept keystone-format modules and with cables and connectors specified for FAKRA Z to maintain signal integrity and mechanical reliability.
