Keystone-moduuli Digitus CAT 6A RJ-45 suojattu hopea 1 kpl

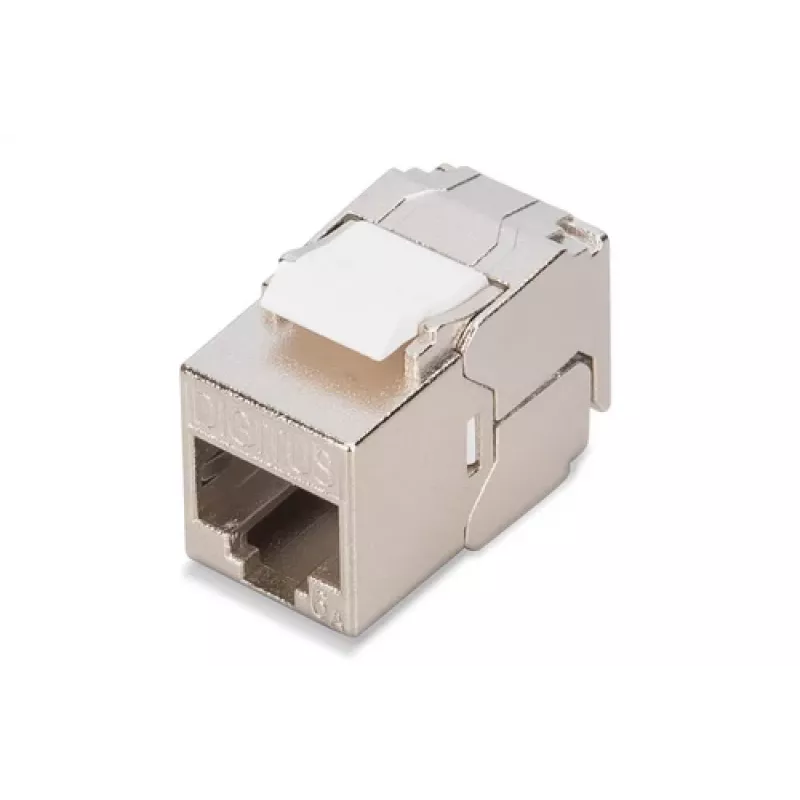

The shielded CAT 6A short keystone module DN-93615-S from DIGITUS® provides a compact, high-performance RJ-45 connection for structured cabling. Designed for tool-free field assembly, it supports 10GBase-T networks and is compatible with mounting in 19" 1U panels and modular junction boxes. The module includes a dust protection cap for the RJ45 socket and supports IEEE 802.3af/at/bt PoE standards.

Advantages

Tool-free installation via LSA insulation displacement connectors with color coding according to EIA/TIA 568 A & B enables quick assembly without special tools. The 360° shield contacting and shielded design ensure improved EMC performance for shielded installations. Compact, flat construction allows series installation in 483 mm (19") 1U panels while remaining compatible with design-style junction boxes. Supports PoE, PoE+ and 4PPoE for flexible power-over-Ethernet use.

Suitable for

• Patch panels and 19" 1U installations
• Modular distribution and junction boxes with design-compatible openings
• Shielded CAT 6A (10GBase-T) network segments
• Power-over-Ethernet deployments (IEEE 802.3af/at/bt)

Key specifications

• Model: DN-93615-S
• Category: Shielded CAT 6A, 10GBase-T
• Connector: RJ-45 socket with dust protection cap
• Termination: LSA insulation displacement connectors, EIA/TIA 568 A & B color coding
• Shielding: 360° shield contacting
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+ & 4PPoE)
• Mounting: Keystone for series installation in 483 mm (19") 1U panels and modular junction boxes
• Colour: Silver
• Weight: 0.022 kg

How to use

Prepare the network cable according to the chosen EIA/TIA wiring standard (568A or 568B), insert conductors into the LSA strips following the color coding and perform the insulation displacement termination. Snap the keystone module into the panel or junction box opening until it locks. Connect the RJ-45 plug to the socket and attach the dust protection cap when the socket is not in use.

Recommendations

For optimal shielding performance, ensure the panel or box provides a proper chassis ground and maintain continuous shield continuity across connected components. Use CAT 6A screened cabling and follow PoE power budgets and device specifications when powering equipment over Ethernet.
