Keystone-moduuli Renkforce KSV10 CAT 6 – RJ45-verkkoliitäntä CAT6-asennuksiin

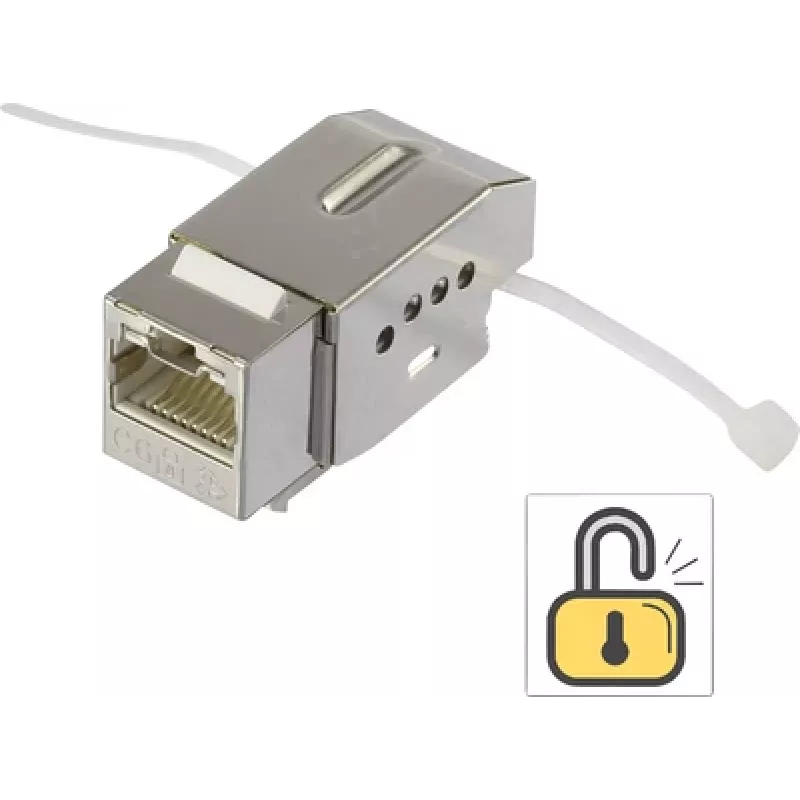

The Renkforce KSV10 CAT 6 keystone module is an RJ45 network insert designed for structured cabling and patch panel installations. It follows the standard keystone form factor to snap into compatible wall plates and patch panels, enabling Gigabit Ethernet connections over CAT6 cabling for home and office networks. The module provides a compact, replaceable termination point for network runs and is intended for use where a reliable, standardized RJ45 outlet is required.

Advantages

This keystone module offers a standard snap-in design that simplifies installation into keystone-compatible plates and panels. It supports CAT6 wiring to maintain Gigabit Ethernet performance and ensures a consistent RJ45 termination point. The Renkforce KSV10 is suitable for modular cabling systems and allows straightforward replacement or reconfiguration of network outlets without rewiring the entire installation.

Suitable for

• Structured cabling in homes and small offices
• Patch panels and keystone wall plates
• Gigabit Ethernet over CAT6 installations
• Modular network outlet replacement or upgrades

Key specifications

• Connector type: RJ45 keystone insert
• Cabling standard: Category 6 (CAT6) compatibility
• Form factor: Standard keystone module for snap-in installation
• Application: Network termination for Gigabit Ethernet
• Mounting: Compatible with keystone wall plates and patch panels

How to use

Terminate the CAT6 cable according to the T568A or T568B wiring scheme on the module's IDC or punch-down contacts, following standard cabling practice and ensuring proper pair untwisting limits. Insert the assembled keystone module into a compatible wall plate or patch panel until it snaps into place. Test the installed connection with a network tester to confirm wiring continuity and performance before finalizing the installation.

Recommendations

Use the module with properly certified CAT6 cabling and maintain recommended bend radius and pair untwist limits during termination. Verify wiring scheme consistency across the installation and test each port to ensure Gigabit Ethernet performance. Replace or reterminate modules in a powered-down network environment when possible to reduce risk to connected equipment.
