Kiertomoottori Eurolite MD-1015 musta

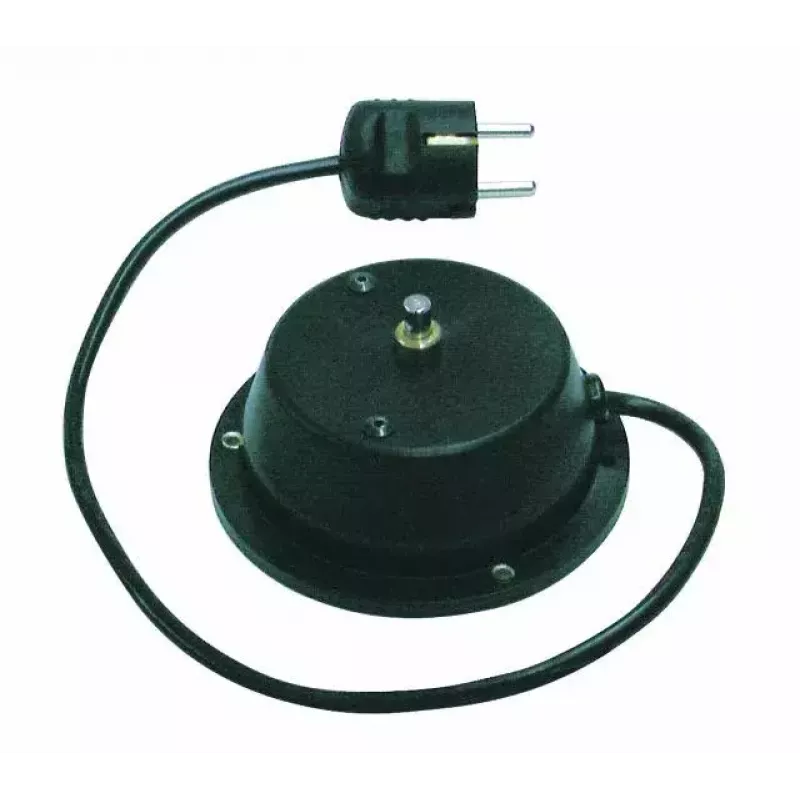

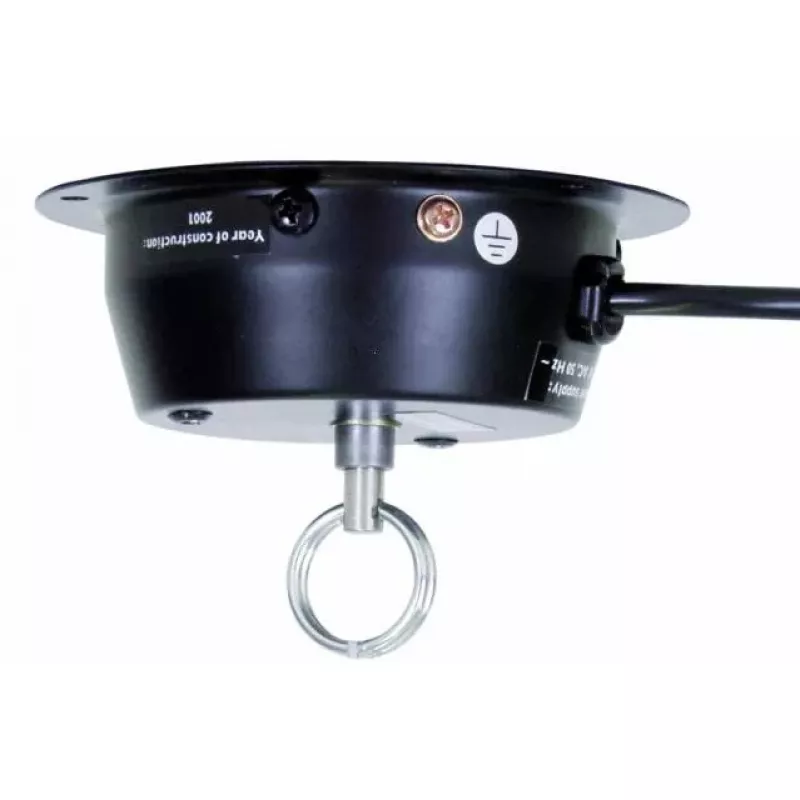

The EUROLITE Rotary motor MD-1015 Black is a compact motor designed to rotate mirror balls and similar suspended effects. It operates at 230 V, 50 Hz and has compact dimensions (113 x 133 x 58 mm) with a net weight of 300 g. The unit is supplied ready for connection with a power plug and delivers a rotation speed of 1.5 rotations per minute. Maximum permitted load is 3 kg, which corresponds to EUROLITE mirror balls up to 30 cm diameter; the maximum load must include the mirror ball chain and any fixation material.

Advantages

The motor offers a low-weight, space-saving black housing suitable for discreet installation. It provides a stable, slow rotational speed of 1.5 rpm for steady visual effects and comes ready for direct mains connection. Its specifications are aligned with common professional applications where compact, reliable rotation of mirror balls is required.

Suitable for

Key specifications

How to use

Install the motor at the intended suspension point and connect it to the mains using the supplied power plug. Fit the mirror ball using an appropriate chain and fixation material and ensure the total suspended weight does not exceed 3 kg. Verify that the effective diameter of the mirror ball corresponds to recommended sizes (up to 30 cm for EUROLITE mirror balls). Before first operation, have the installation inspected and approved by a qualified expert.

Recommendations

For professional installations (discotheques, public places) follow EN DIN 15560 norms. Always secure the motor with a secondary safety attachment and include the weight of the chain and fixation when calculating loads. Ensure periodic inspections and maintenance by qualified personnel.
