Kiinnike Axis T91B50 teleskooppikattoasennus

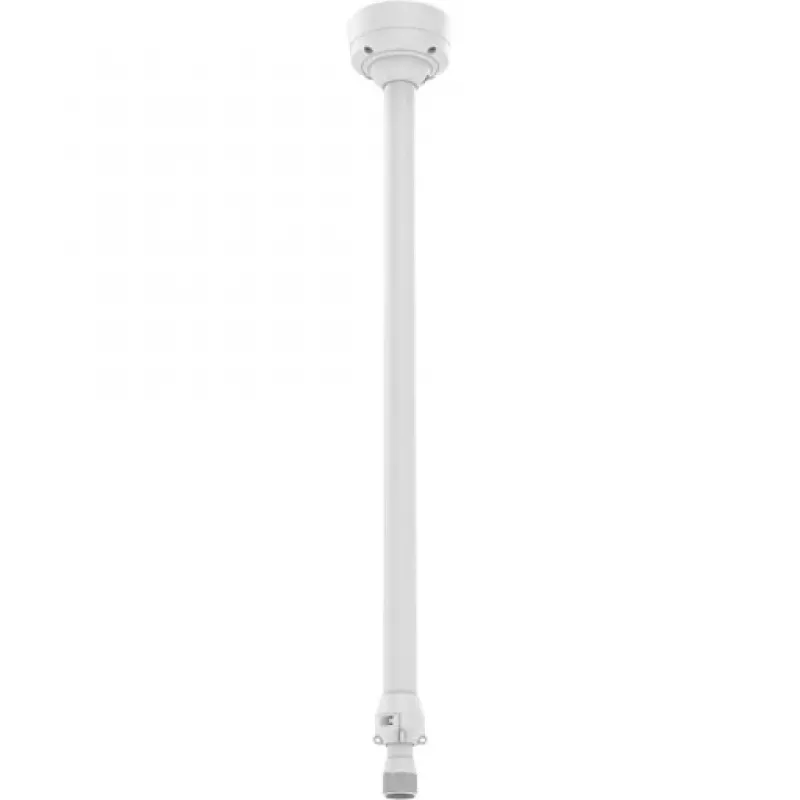

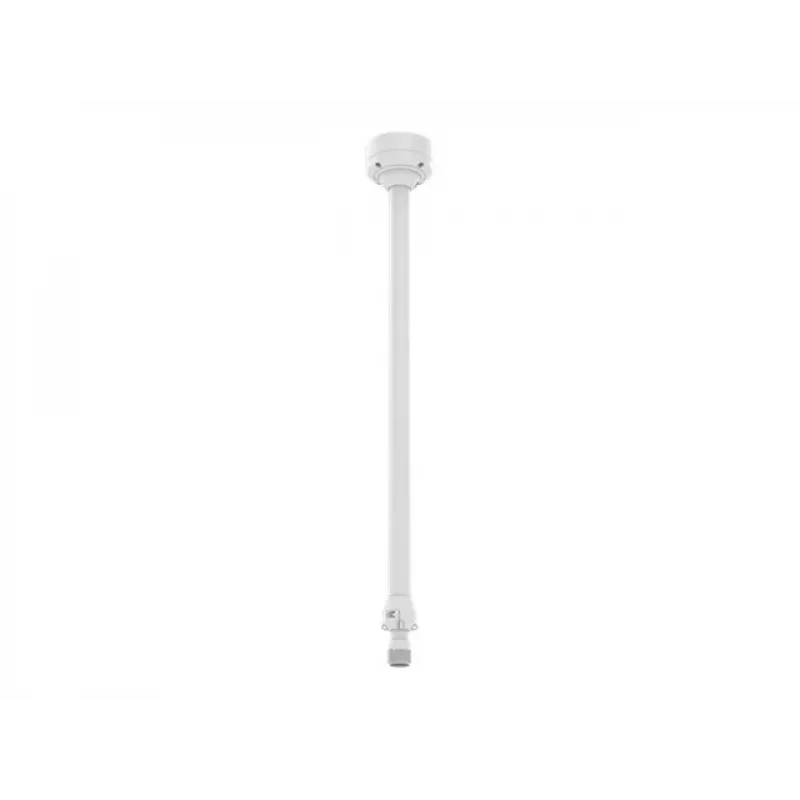

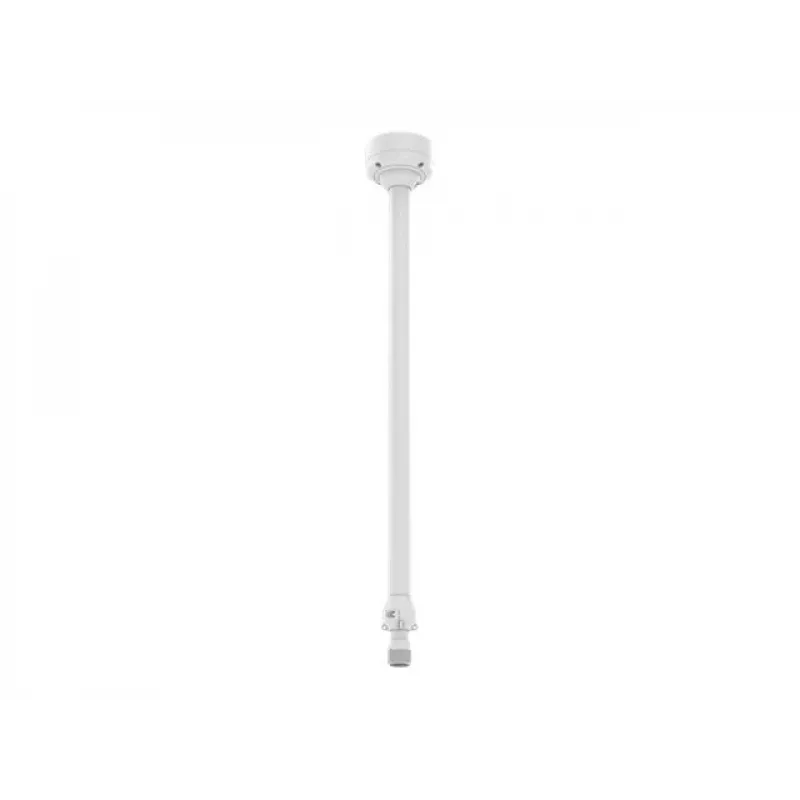

AXIS T91B50 Telescopic Ceiling Mount is a universal ceiling mount designed for installing PTZ or fixed dome cameras in locations with high or sloped ceilings. The telescopic pole extends up to 2 m (79 in) and supports devices up to 10 kg, providing a stable solution for a wide range of CCTV applications. The mount includes a ball joint for alignment on sloped ceilings and is engineered to swing on impact to avoid breaking if struck by forklifts or tall vehicles.

Advantages

The telescopic function allows precise and secure length adjustment without complex tools. Built to support up to 10 kg and with a tilt range of -45° to 45°, the mount offers flexibility for various camera models. Its swing mechanism reduces the risk of damage from impacts, and optional extension pipes (30 cm and 100 cm) are available when longer reach is required.

Suitable for

• Installing PTZ cameras in high-ceiling environments
• Mounting fixed dome cameras where stable, elevated placement is needed
• Locations with sloped ceilings requiring camera alignment
• Indoor warehouses or facilities with vehicle traffic where impact resistance is beneficial

Key specifications

• Model: AXIS T91B50 (MPN 5507-451, EAN 7331021051478)
• Maximum supported weight: 10 kg
• Tilt angle range: -45° to 45°
• Maximum extended length: 2136 mm (2 m / 79 in)
• Mount weight: 4.1 kg

How to use

Adjust the telescopic pole to the required length and secure it according to the installation instructions provided by Axis. Attach the camera to the mount plate and set the tilt using the -45° to 45° ball joint to ensure the camera hangs straight, even on sloped ceilings. If additional length is required, fit one of the available extension pipes (30 cm or 100 cm) before final tightening. Ensure all fasteners are torqued to the specified values and verify the mount supports the camera weight.

Recommendations

For safe installation, confirm the ceiling structure can support the combined weight of the mount and camera. Use the appropriate extension pipes only when needed and follow Axis installation guidelines to maintain the swing function and impact resistance.
