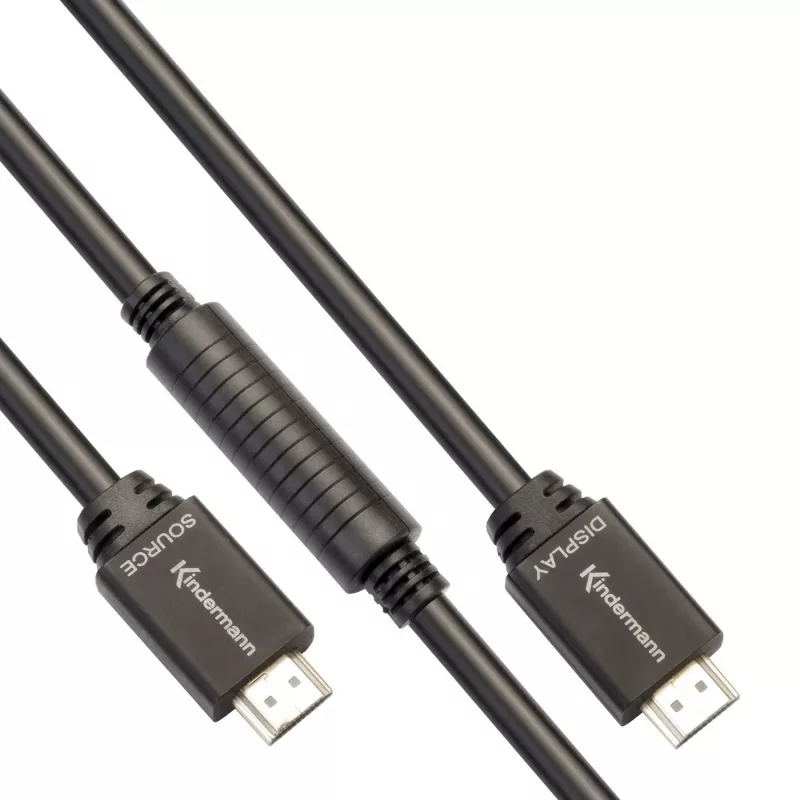

KINDERMANN 4K60 HDMI Active Cable 20 m (K-17520A)

The KINDERMANN 4K60 HDMI Active Cable (K-17520A) is a high-performance 20-meter active HDMI cable designed for reliable transmission of 4K Ultra HD video at 60 Hz. It supports HDMI 2.0b with 18 Gbps bandwidth, HDR10, HLG, and Dolby Vision, making it ideal for home cinema, professional AV, gaming consoles, and PC applications.

Advantages

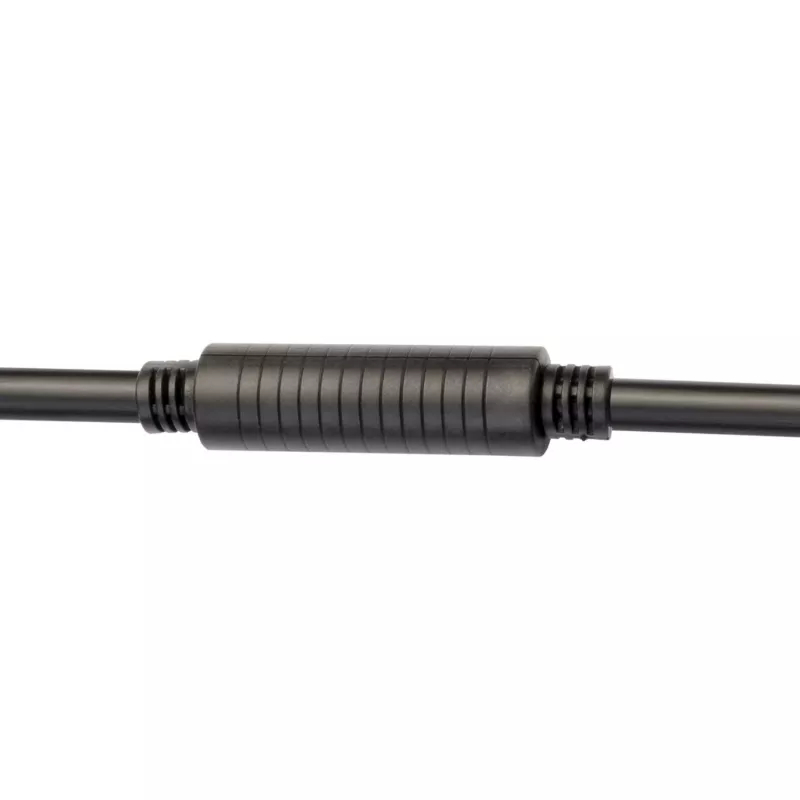

Active signal boosting ensures stable 4K60 transmission over long distances without degradation. Gold-plated connectors provide corrosion resistance and optimal signal integrity. The cable is directional with clearly marked source and display ends, and includes an optional Micro-USB power supply for extended reach.

Suitable for

• Home cinema systems requiring long HDMI runs
• Professional AV installations
• Gaming consoles (PS4 Pro, Xbox One X, etc.)
• PC and workstation setups

Key specifications

• Cable Type: Active HDMI Cable
• Length: 20 meters
• HDMI Standard: 2.0b
• Max Resolution: 4K Ultra HD (3840x2160) @ 60Hz
• Data Rate: 18 Gbps
• Color Subsampling: 4:4:4, 4:2:2, 4:2:0
• HDR Support: HDR10, HLG, Dolby Vision
• HDCP: 2.2
• Audio Return Channel (ARC): Yes
• CEC: Yes
• Connectors: HDMI Type A Male to HDMI Type A Male, Gold-plated

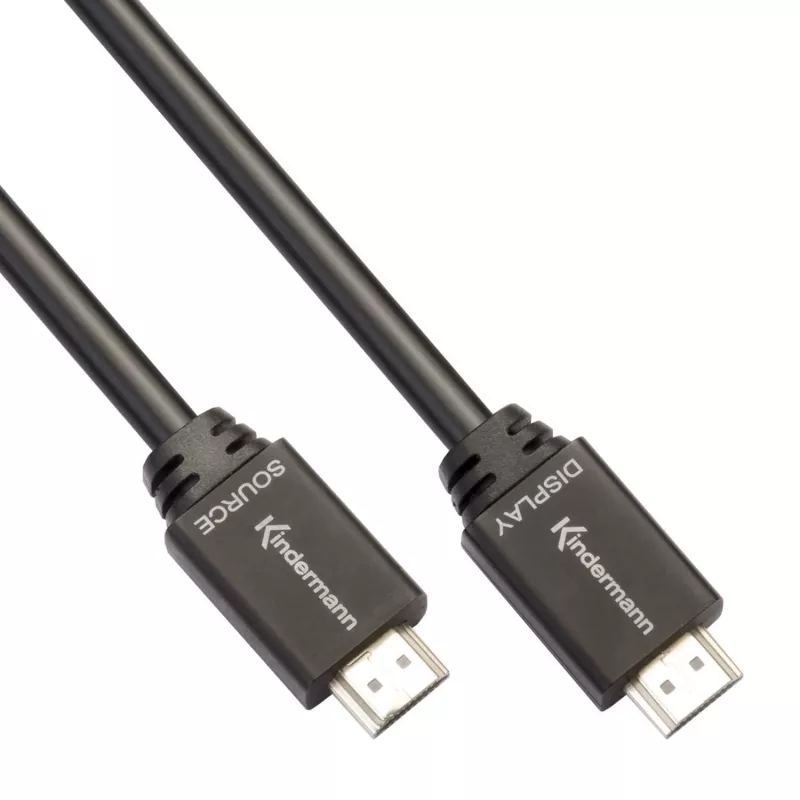

• Directional: Yes
• External Power: Optional Micro-USB (cable included)
• Jacket Material: PVC
• Conductor: High-purity copper
• Compliance: CE, FCC, RoHS

Recommendations

For optimal performance, ensure the source end is connected to the HDMI output and the display end to the monitor or projector. If the cable is used in lengths exceeding 10 meters, connect the Micro-USB power cable to a 5V USB power source to maintain signal integrity.
