Kindermann USB 3.2 Cat -jatko 100 m

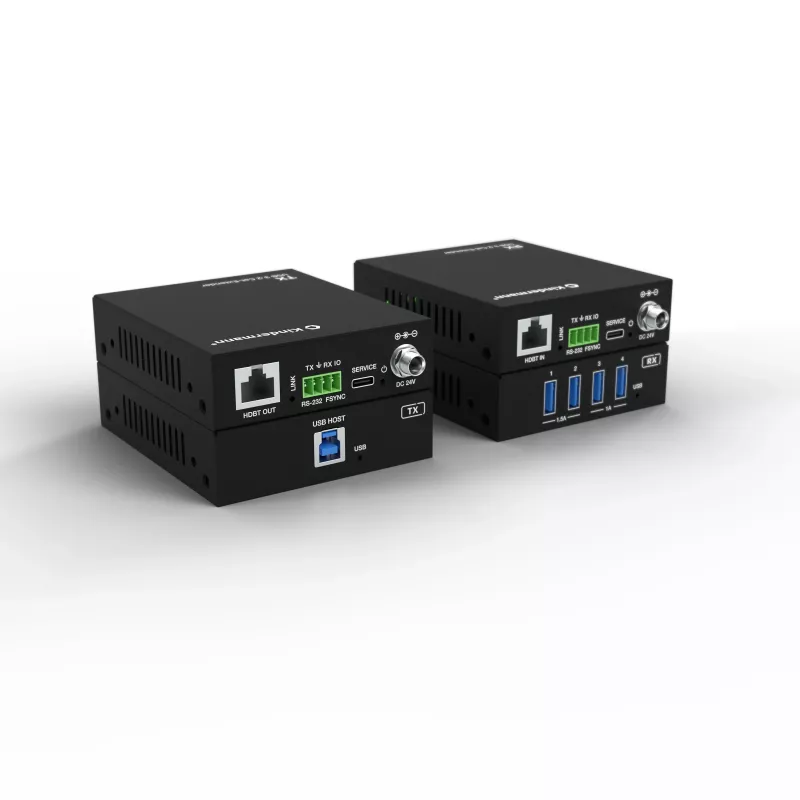

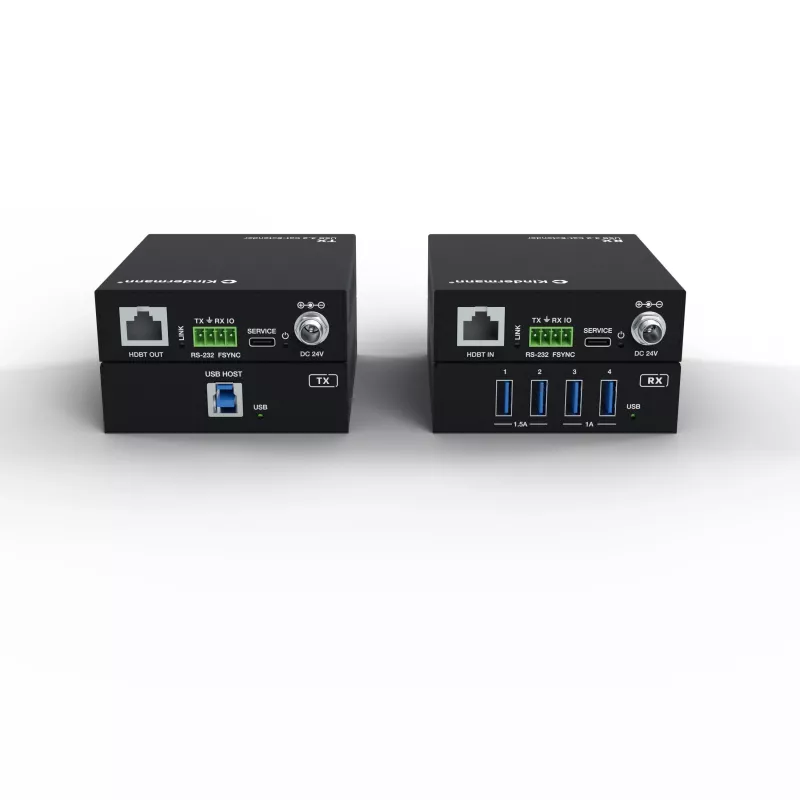

The Kindermann USB 3.2 Cat-Extender extends USB 3.2 Gen 1 signals up to 100 meters over Cat.6a/7/8 cabling. This plug-and-play extender set includes a local unit (USB-B host connection) and a remote unit (4x USB-A ports), enabling transparent USB extension without drivers. Ideal for connecting peripherals such as cameras, printers, or storage devices in remote locations.

Advantages

Extends USB 3.2 Gen 1 (5 Gbps) up to 100 m using cost-effective network cabling. Plug-and-play installation with no software required. Robust metal housing with ESD protection ensures reliable operation in demanding environments. Wall-mountable design saves space.

Suitable for

• Extending USB devices in offices, classrooms, or industrial settings
• Connecting peripherals over long distances without signal degradation
• Applications requiring high-speed data transfer (up to 5 Gbps)

Key specifications

• USB Standard: USB 3.2 Gen 1 (USB 3.0), backward compatible with USB 2.0/1.1
• Maximum Distance: 100 m
• Required Cable: Cat.6a, Cat.7, or Cat.8 (solid core recommended)
• Data Transfer Rate: Up to 5 Gbps

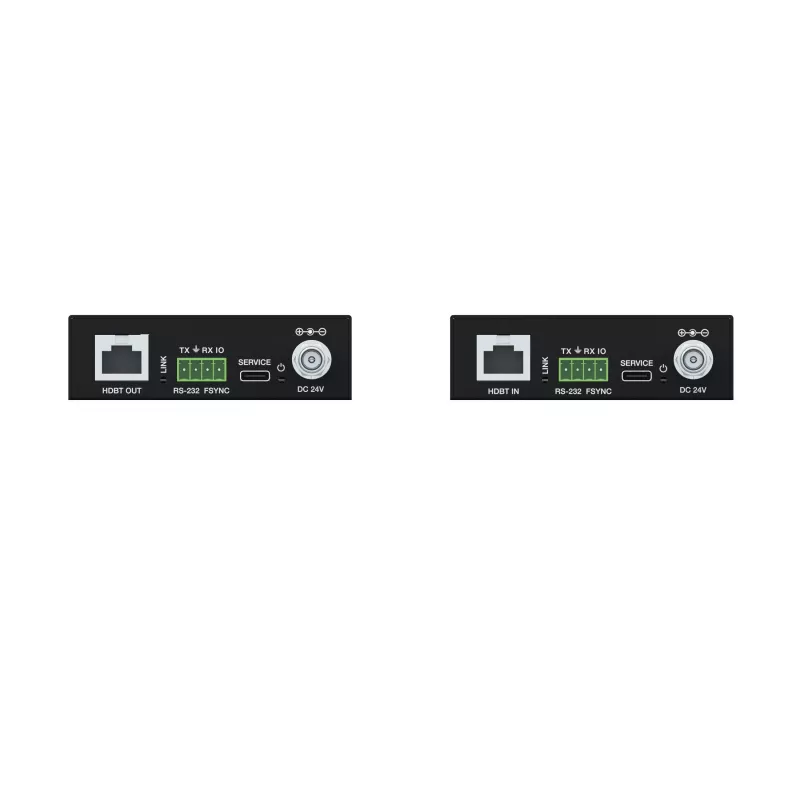

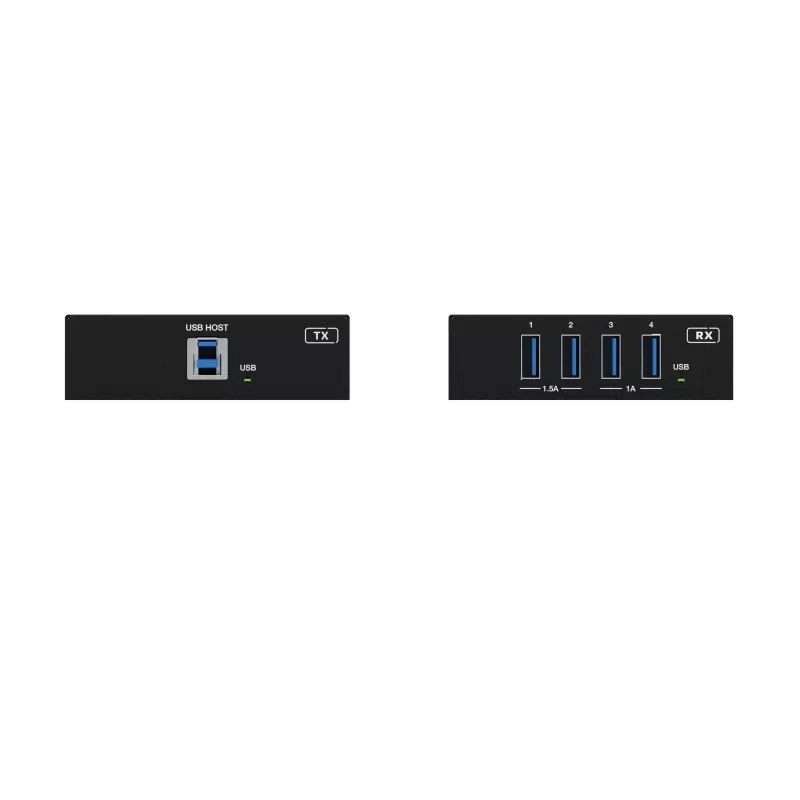

• Local Unit Ports: 1x USB-B (Host), 1x RJ45 (Link), 1x DC Power
• Remote Unit Ports: 4x USB-A (Device), 1x RJ45 (Link), 1x DC Power
• Power Supply: External 5V DC (2x power adapters included)
• Housing Material: Metal
• Color: Black
• Mounting: Wall mountable
• Operating Temperature: 0°C to 50°C
• Humidity: 20% to 80% (non-condensing)

Recommendations

For best performance, use solid-core Cat.6a or higher cabling. Ensure both units are powered via the included adapters. This extender is transparent to the operating system and supports all USB device types.
