KING MOD SERVICE Raspberry Pi -jäähdytyssarja - hopea

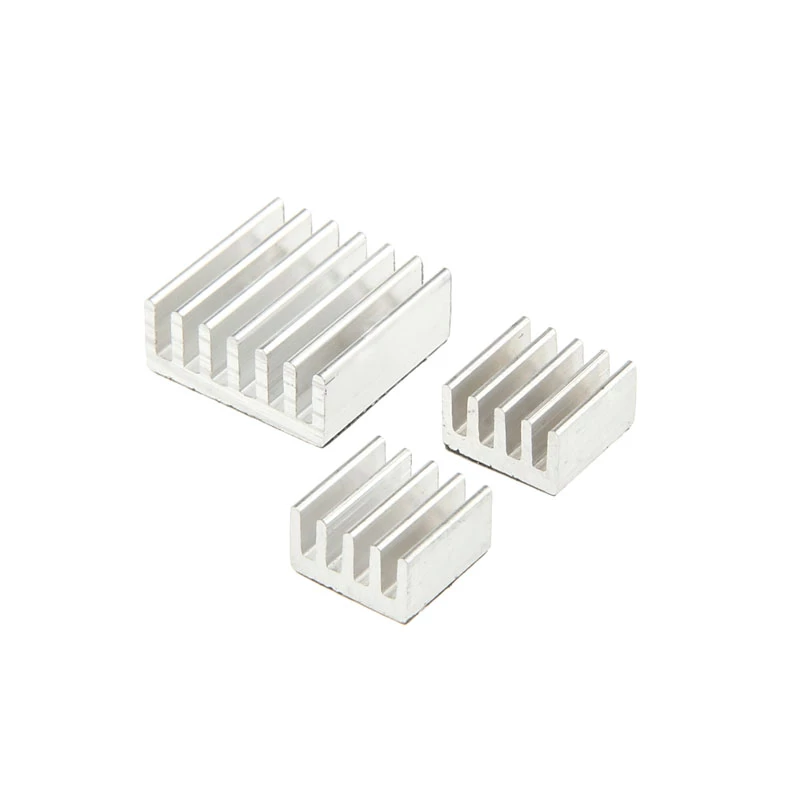

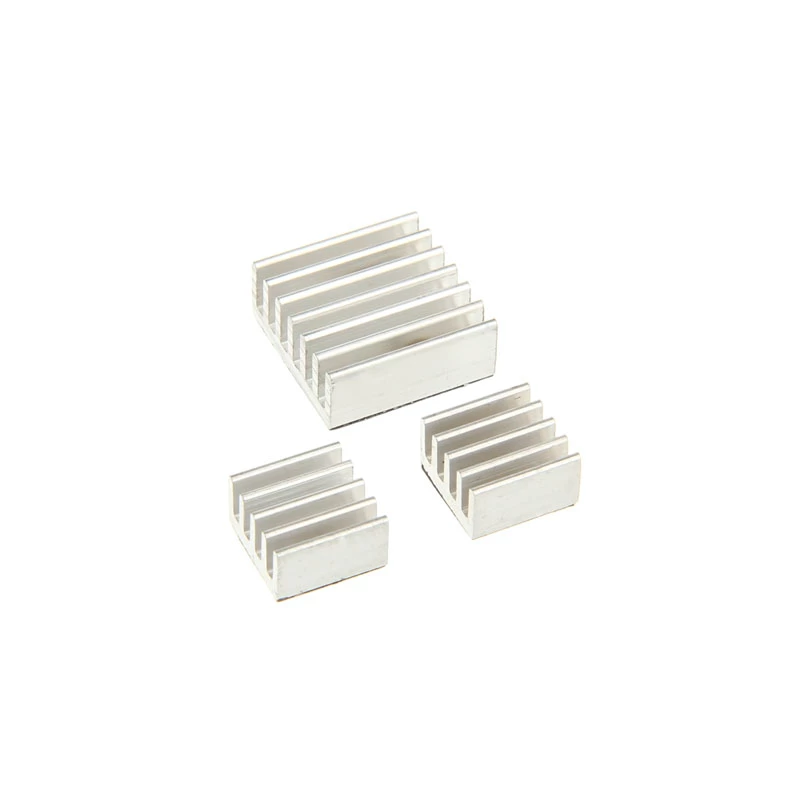

Keep your Raspberry Pi running cool and stable with this passive heatsink set. The set includes three aluminum heatsinks with pre-applied thermal adhesive, providing effective heat dissipation for the CPU, RAM, and LAN/USB controller chip. The fin-type design maximizes surface area for optimal cooling without any moving parts, ensuring silent operation.

Advantages

Aluminum construction offers excellent thermal conductivity while remaining lightweight. The self-adhesive thermal tape makes installation quick and tool-free—just peel and stick. By lowering operating temperatures, these heatsinks help prevent thermal throttling, maintain consistent performance, and extend the lifespan of your Raspberry Pi components.

Suitable for

• Raspberry Pi 4 Model B
• Raspberry Pi 3 Model B+
• Raspberry Pi 3 Model B
• Raspberry Pi 2 Model B
• Raspberry Pi Model B+

Key specifications

• Material: Aluminum
• Color: Silver
• Large heatsink dimensions: 14 x 14 x 5 mm
• Small heatsink dimensions: 9 x 9 x 5 mm
• Number of heatsinks: 3 (1 large, 2 small)

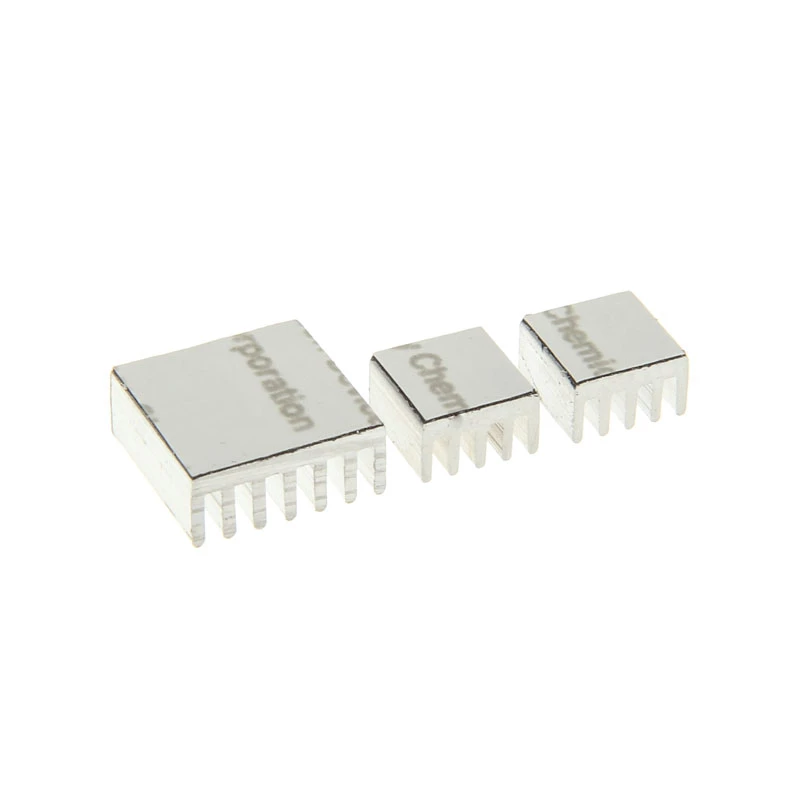

• Mounting: Self-adhesive thermal tape
• Cooling type: Passive

Recommendations

For best results, ensure the chip surfaces are clean before applying the heatsinks. Press firmly for a few seconds to secure the adhesive. This set is ideal for users running intensive applications or overclocking their Raspberry Pi.
