Kingston ValueRAM - DDR4 - moduuli - 4 GB - DIMM 288-PIN

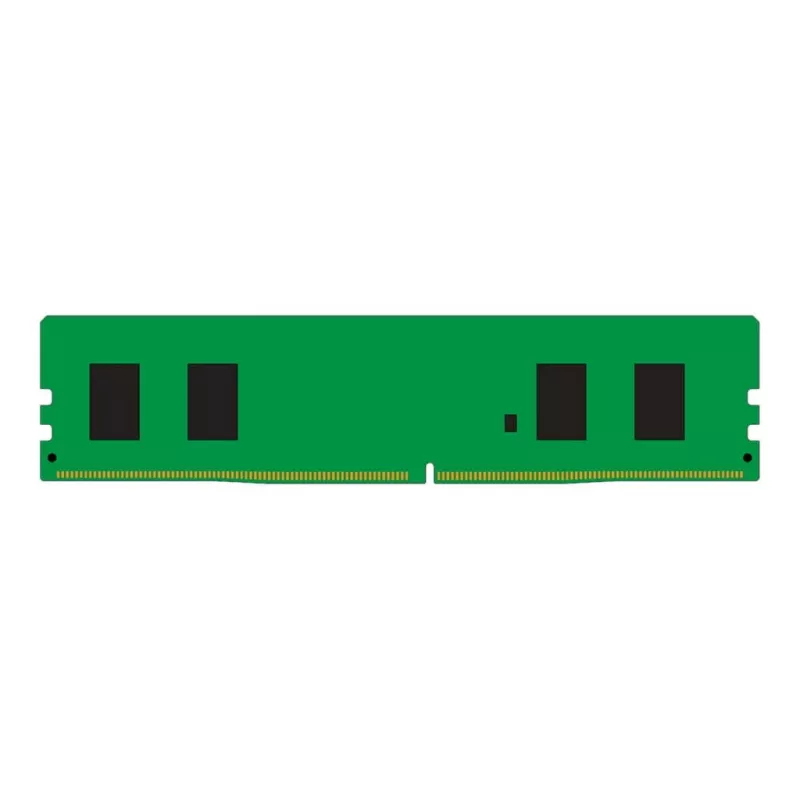

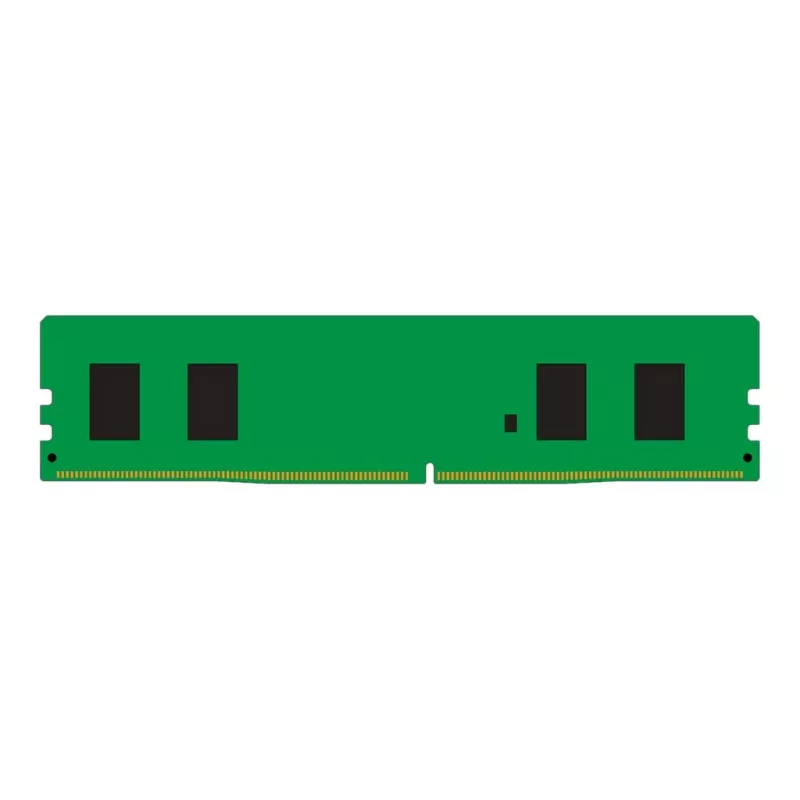

ValueRAM KVR32N22S6/4 is a Kingston 4GB DDR4-3200 memory module in a 288-pin DIMM form factor. The module is built from four 512M x 16 FBGA components and is programmed to JEDEC DDR4-3200 timings of 22-22-22 at 1.2V, providing a standard-performance memory upgrade for desktop systems and compatible servers.

Advantages

This Kingston DDR4 4GB 3200MHz module offers a compact 4 GB capacity with DDR4-3200 frequency and CL22 latency, a 288-pin DIMM interface for easy installation in compatible motherboards, and JEDEC-standard SPD settings for plug-and-play operation. Gold contact fingers ensure reliable electrical connection and reduced corrosion.

Suitable for

• Upgrading desktop PCs to increase memory capacity
• Entry-level workstations and servers that accept standard 288-pin DDR4 DIMMs
• Systems requiring low-voltage (1.2V) DDR4 modules

Key specifications

• Brand: KINGSTON
• Model / MPN: KVR32N22S6/4
• Capacity: 4 GB (512M x 64-bit)
• Type: DDR4 SDRAM
• Speed: 3200 MHz (DDR4-3200)
• CAS Latency: CL22 (22-22-22)
• Form factor: 288-pin DIMM
• Configuration: 1Rx16 (four 512M x16 FBGA components)
• Voltage: 1.2 V
• Contacts: Gold-plated fingers
• EAN: 0740617296075

How to use

Power down the computer and disconnect it from the mains. Open the PC case to access the memory slots, release the DIMM retention clips, and align the notch of the Kingston DDR4 4GB 3200MHz module with the motherboard slot. Firmly press the module into the slot until the retention clips snap into place. Reassemble the case, reconnect power, and start the system. The module uses JEDEC SPD settings and should be recognized automatically; verify installed memory in the system BIOS or operating system.

Recommendations

Install this KVR32N22S6/4 module in matched pairs or according to the motherboard manual to enable dual-channel operation where supported. Ensure the motherboard supports DDR4-3200 and 1.2V modules; if necessary, consult the system or motherboard documentation before upgrading.
