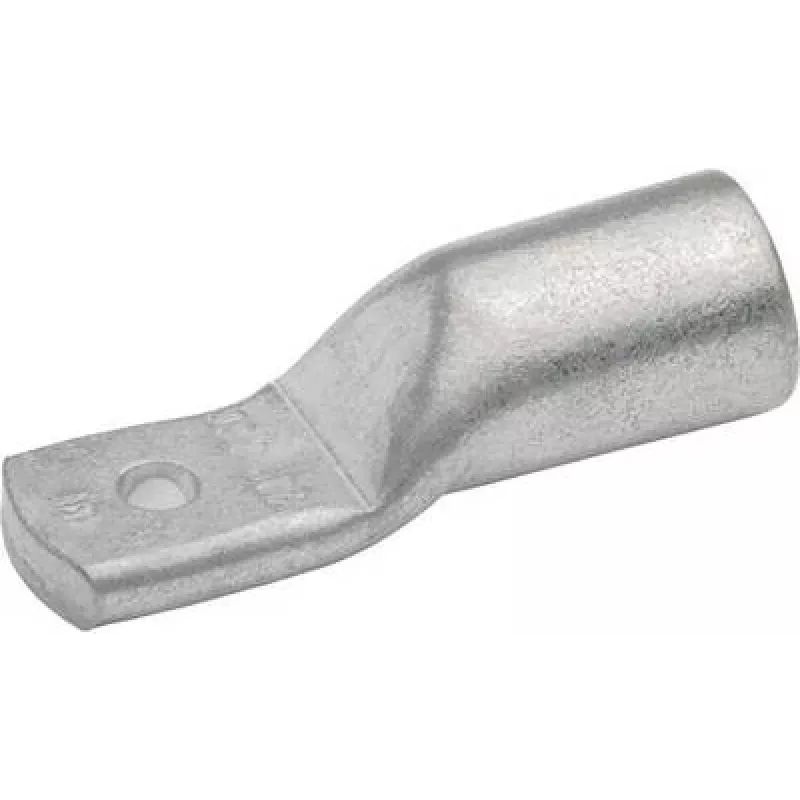

Klauke 5SG6 putkikaapelikenkä 35 mm² M6 kytkinlaitteille

In switchgear and power distribution, a reliable connection is critical. The Klauke 5SG6 tubular cable lug provides a secure crimp connection for 35 mm² copper conductors, ensuring low contact resistance and long-term stability in electrical installations.

Who is it for

Electricians and panel builders who need a dependable, standard-compliant lug for terminating stranded copper cables in switchgear, control cabinets, and power distribution systems.

Main features

• For 35 mm² stranded copper conductors (Class 2, 5, 6)
• M6 bolt hole (6 mm) for secure fastening
• Made of electrolytic copper (E-Cu), electro-tinned for corrosion resistance
• Uninsulated, straight design, single bolt hole
• Conforms to DIN 46235
• Temperature range: -40°C to +120°C
• Voltage rating: up to 1000 V

Specifications

• Cable cross-section: 35 mm²
• Bolt hole diameter: M6 (6 mm)
• Material: Electrolytic copper (E-Cu)
• Surface treatment: Tinned (electro-tinned)
• Connection method: Crimp
• Conductor type: Stranded copper conductors (Class 2, 5, 6)
• Insulation: Uninsulated
• Number of bolt holes: 1
• Design: Straight
• Standard: DIN 46235
• Temperature range: -40°C to +120°C
• Voltage rating: Up to 1000 V
• Corrosion protection: Yes (due to tinning)

Tips

Use a proper crimping tool designed for tubular cable lugs to ensure a gas-tight connection. Verify the bolt size matches your terminal stud before installation.
