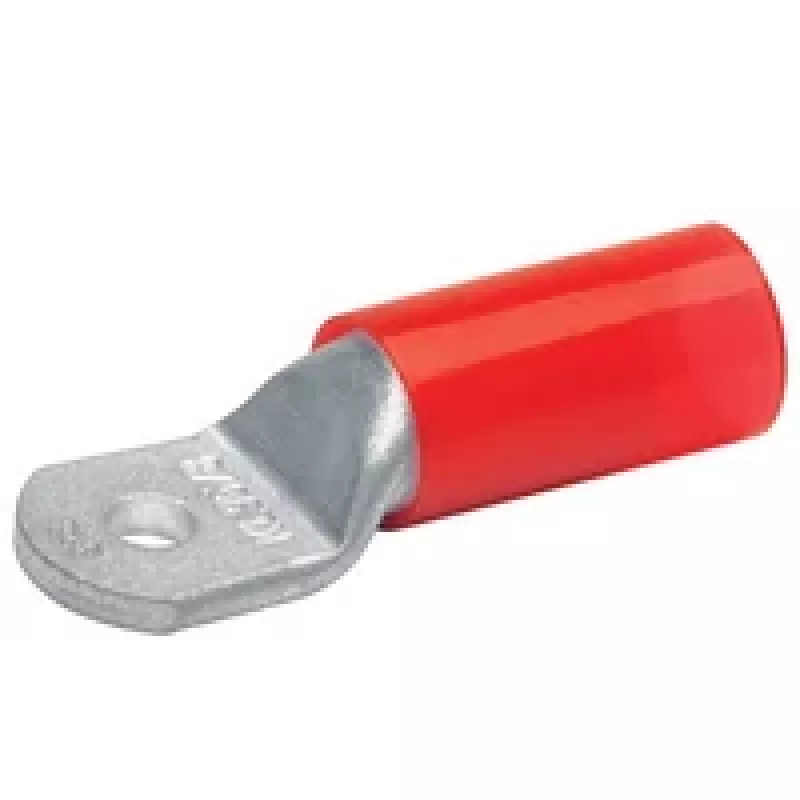

Klauke 605R12 eristetty putkikaapelikenkä, 35 mm², M12, punainen, sinkitty kupari, suora, polyamidi

The Klauke 605R12 is a high-quality insulated tubular cable lug designed for reliable and secure connections in electrical installations. Manufactured by Klauke, a trusted brand in professional crimping technology, this lug is suitable for copper conductors with a cross-section of 35 mm². It features a tinned electrolytic copper body for excellent conductivity and corrosion resistance, and a red polyamide (PA) insulation sleeve for electrical safety. The straight design with a single M12 bolt hole (12.5 mm diameter) allows for easy and secure termination. The funnel-shaped cable entry simplifies conductor insertion, ensuring a proper crimp connection. Rated for up to 690 V and 105 °C, and compliant with RoHS and UL 94 V-2 flammability rating, this cable lug is ideal for industrial and commercial applications.

Advantages

High-quality tinned copper ensures low resistance and long-term reliability. The polyamide insulation provides excellent dielectric strength and mechanical protection. Straight design facilitates straightforward installation in tight spaces. Funnel entry reduces installation time and improves crimp quality. RoHS compliant and UL 94 V-2 rated for safety.

Suitable for

• Power distribution and control panels
• Industrial machinery and equipment
• Electrical installations requiring secure cable terminations
• Automation and manufacturing systems

Key specifications

• Product Type: Insulated Tubular Cable Lug
• Conductor Cross-section: 35 mm²
• Bolt Hole Diameter: 12.5 mm (M12)
• Material: Electrolytic Copper, Tinned
• Insulation: Polyamide (PA), Red
• Connection Angle: Straight
• Max. Operating Temperature: 105 °C
• Rated Voltage: 690 V
• Flammability Rating: UL 94 V-2
• Standards: DIN 46235 (reference), RoHS Compliant
• Connection Method: Crimp
• Number of Bolt Holes: 1
• Cable Entry Design: Funnel-shaped

Recommendations

For optimal performance, use with Klauke crimping tools and dies designed for 35 mm² copper lugs. Ensure proper crimp force and follow manufacturer instructions. Always verify compatibility with your cable type and application requirements.
