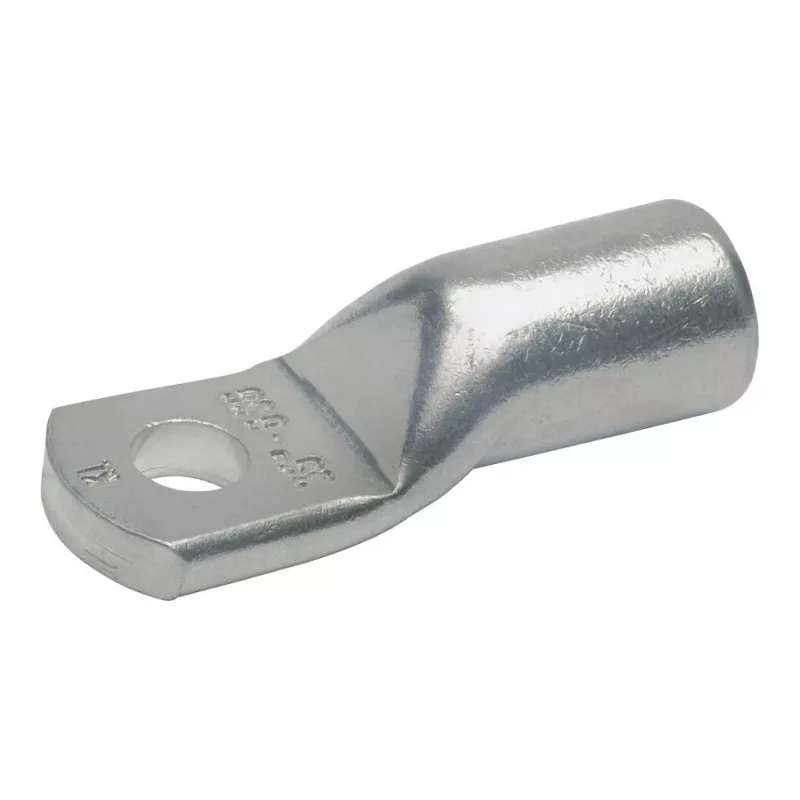

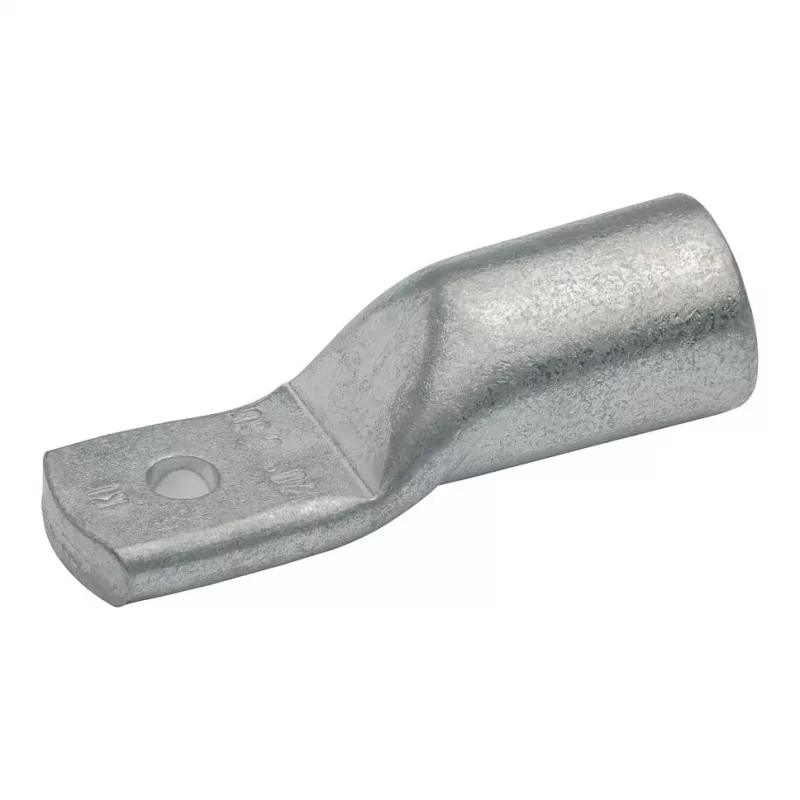

Klauke 6SG8 putkikaapelikenkä 50 mm² M8 kytkinlaitoksiin

The Klauke 6SG8 is a high-quality tubular cable lug designed for reliable electrical connections in switchgear and standard applications. Manufactured from electrolytic copper with a galvanically tinned surface, it ensures excellent conductivity and corrosion resistance. This lug is suitable for conductor cross-sections of 50 mm² and features an M8 bolt hole (8.4 mm diameter). Its straight (180°) design and single bolt hole make it ideal for straightforward installations. The lug includes an inspection hole for easy verification of conductor insertion. With a temperature range of -55 °C to +150 °C and a voltage rating up to 1000 V, it meets the demands of industrial environments. RoHS compliant.

Advantages

High-quality electrolytic copper ensures optimal electrical conductivity. Tinned surface provides long-lasting corrosion protection. Inspection hole allows quick visual check of proper conductor insertion. Wide temperature range and high voltage rating make it suitable for demanding applications.

Suitable for

• Switchgear and control cabinets
• Power distribution systems
• Industrial electrical installations
• Standard cable termination applications

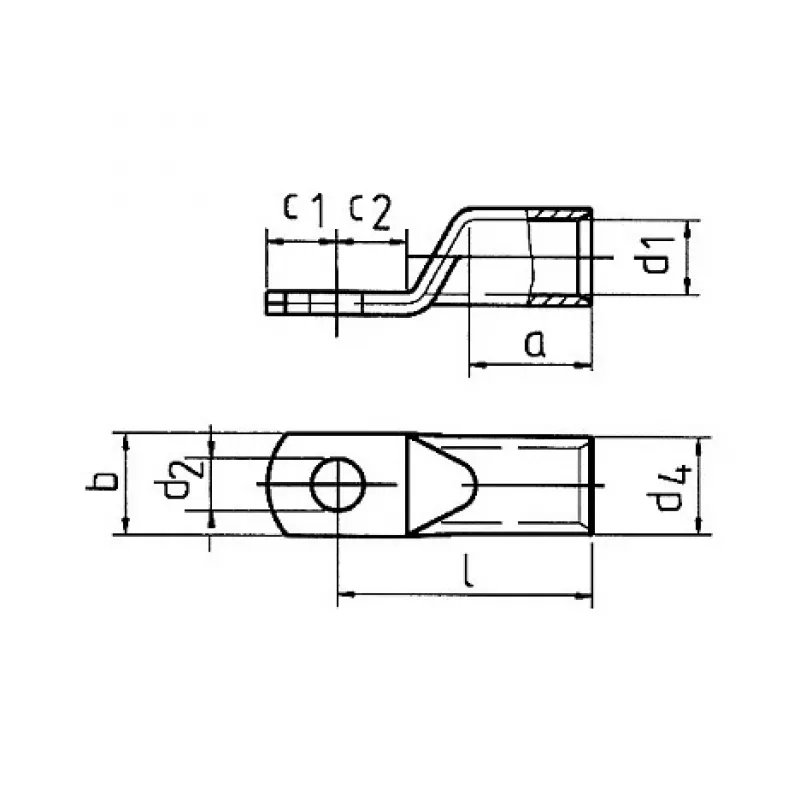

Key specifications

• Conductor cross-section: 50 mm²
• Bolt hole diameter: M8 (8.4 mm)
• Material: Electrolytic copper (E-Cu), tinned
• Overall length: 50 mm
• Palm width: 17 mm
• Barrel inner diameter: 9.8 mm
• Barrel outer diameter: 12.5 mm
• Barrel length: 20 mm
• Palm thickness: 2.5 mm
• Temperature range: -55 °C to +150 °C
• Voltage rating: Up to 1000 V

Recommendations

For optimal performance, use with appropriate crimping tools and ensure the conductor is fully inserted into the barrel before crimping. Always follow manufacturer guidelines for installation.
