Klauke 7110V eristetty johdinpäätehylsy 0,75 mm² harmaa 1 000 kpl

The Klauke 7110V insulated wire end sleeve is a high-quality ferrule designed for professional electrical installations. Manufactured from electrolytic copper with galvanic tinning, it ensures excellent conductivity and corrosion resistance. The polypropylene insulation provides reliable protection and is colour-coded grey according to DIN standard for 0.75 mm² cross-section. This pack contains 1000 pieces, ideal for high-volume wiring tasks.

Advantages

Precise crimping for secure connections; halogen-free insulation for safety; wide temperature range from -40°C to +105°C; voltage rating up to 600 V; compliant with DIN 46228 Part 4.

Suitable for

• Fine-stranded and super fine-stranded conductors
• Control cabinets, switchgear, and terminal blocks
• Industrial and commercial electrical installations

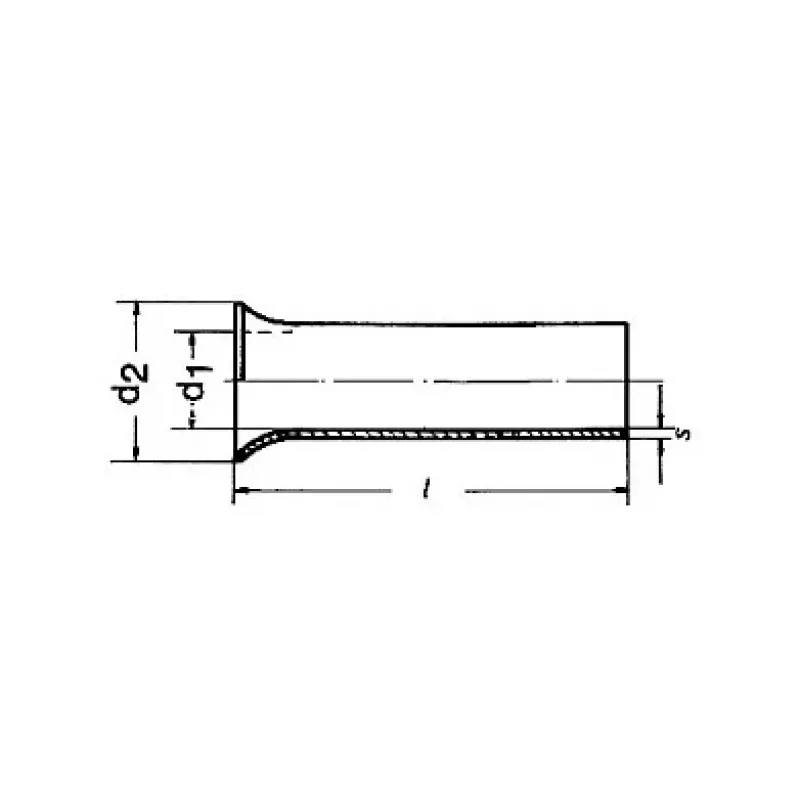

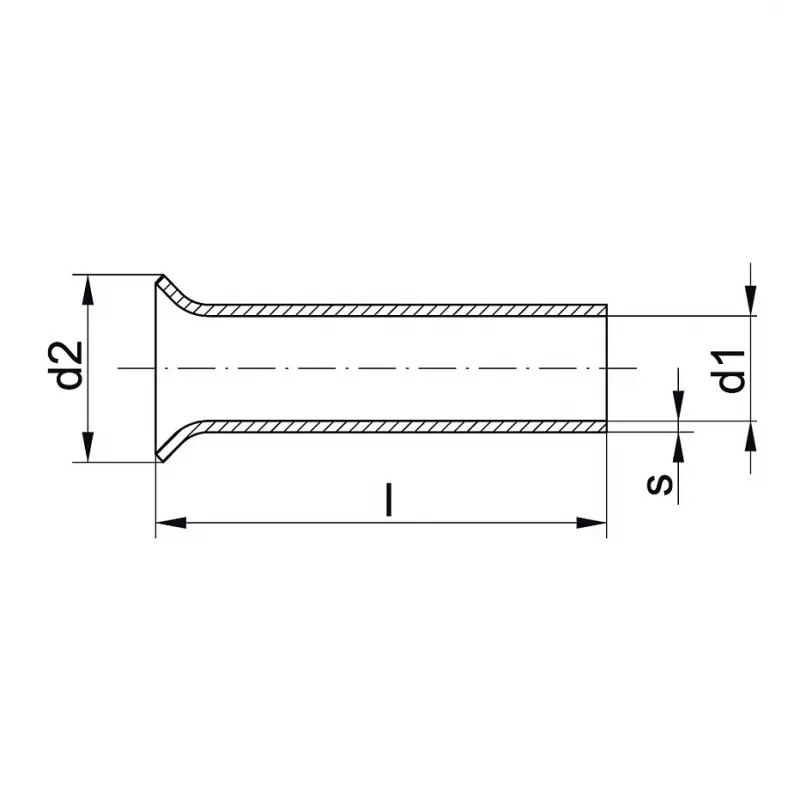

Key specifications

• Conductor cross-section: 0.75 mm²
• Sleeve length: 12 mm
• Total length: 14 mm
• Flange diameter: 2.8 mm
• Insulation colour: Grey (RAL 7035)
• Packaging quantity: 1000 pieces

Recommendations

Use with a suitable crimping tool for optimal results. Ensure conductor stripping length matches sleeve length.
