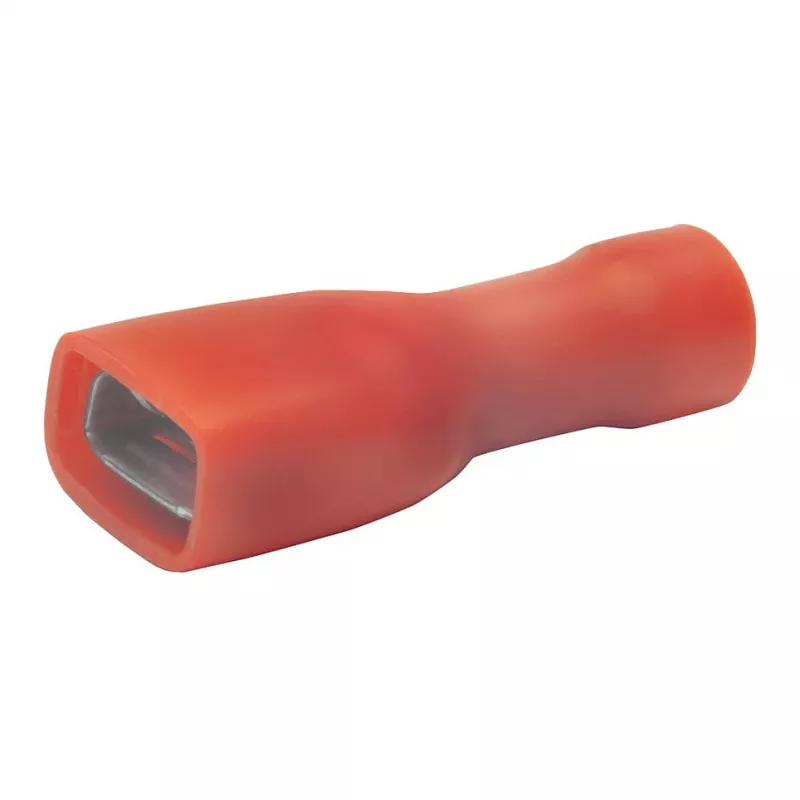

Klauke 720V täysin eristetty lattaliitinholkki 6,3 mm x 0,8 mm punainen 1 kpl

The Klauke 720V is a high-quality fully insulated flat receptacle (spade connector) designed for reliable electrical connections. With a mating tab width of 6.3 mm and thickness of 0.8 mm, this connector is suitable for a variety of wiring applications. The red PVC insulation provides clear color coding and protection, while the brass contact with tin plating ensures excellent conductivity and corrosion resistance. Rated for 720 V and compatible with wire cross sections from 0.5 to 1.5 mm² (22-16 AWG), this connector is ideal for professional and industrial use.

Advantages

Fully insulated design prevents short circuits and ensures safety. Straight 180° orientation allows for easy and space-saving connections. Crimp connection method provides a secure and durable termination. RoHS compliant for environmental safety.

Suitable for

• Electrical installations and wiring
• Automotive and industrial applications
• Repair and maintenance of electrical equipment

Key specifications

• Connector Type: Flat Receptacle (Spade Connector / Faston Terminal)
• Insulation: Fully Insulated, PVC, Red
• Mating Tab Width: 6.3 mm
• Mating Tab Thickness: 0.8 mm
• Rated Voltage: 720 V
• Wire Cross Section: 0.5 - 1.5 mm² (22 - 16 AWG)
• Contact Material: Brass, Tin Plated
• Connection Method: Crimp
• Orientation: Straight (180°)
• Operating Temperature: -10°C to +75°C
• Max Current: 15 A (for 1.5 mm² wire)
• RoHS Compliant: Yes

Recommendations

For best results, use with appropriate crimping tools and ensure proper wire stripping. Always follow local electrical codes and regulations.
