Klauke 8R16 putkiliitin - tinattu - suora - ruostumaton teräs - kupari - 95 mm²

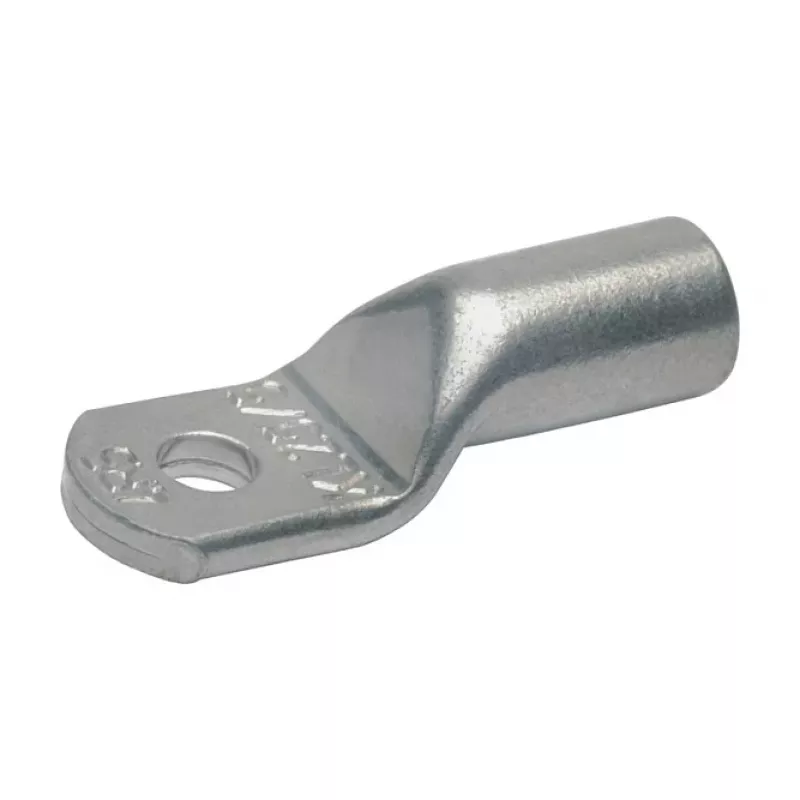

The Klauke 8R16 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. This straight lug is suitable for copper conductors with a cross-section of 95 mm² and features a 16 mm bolt hole for M16 bolts. Compliant with DIN 46235, it is ideal for professional electrical installations.

Advantages

Tin-plated surface provides superior corrosion resistance and long-lasting performance. The inspection hole allows for easy verification of proper conductor insertion. Halogen-free and RoHS compliant, ensuring environmental safety.

Suitable for

• Copper conductors up to 95 mm²
• Electrical connections requiring M16 bolt size
• Industrial and commercial wiring applications

Key specifications

• Product Type: Tubular Cable Lug
• Series: 8R (Standard)
• Conductor Cross-section: 95 mm²
• Bolt Hole Diameter: 16 mm
• Bolt Size Compatibility: M16
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tin-plated
• Connection Method: Crimp
• Design: Straight
• Application: For copper conductors
• Standard: DIN 46235
• Operating Temperature Range: Up to 120 °C
• Voltage Rating: Up to 1000 V
• Inspection Hole: Yes
• Number of Holes: 1
• RoHS Compliant: Yes
• Halogen-free: Yes
• Manufacturer: Klauke

Recommendations

For optimal performance, use with appropriate crimping tools and ensure proper conductor insertion. Always follow local electrical codes and standards.
