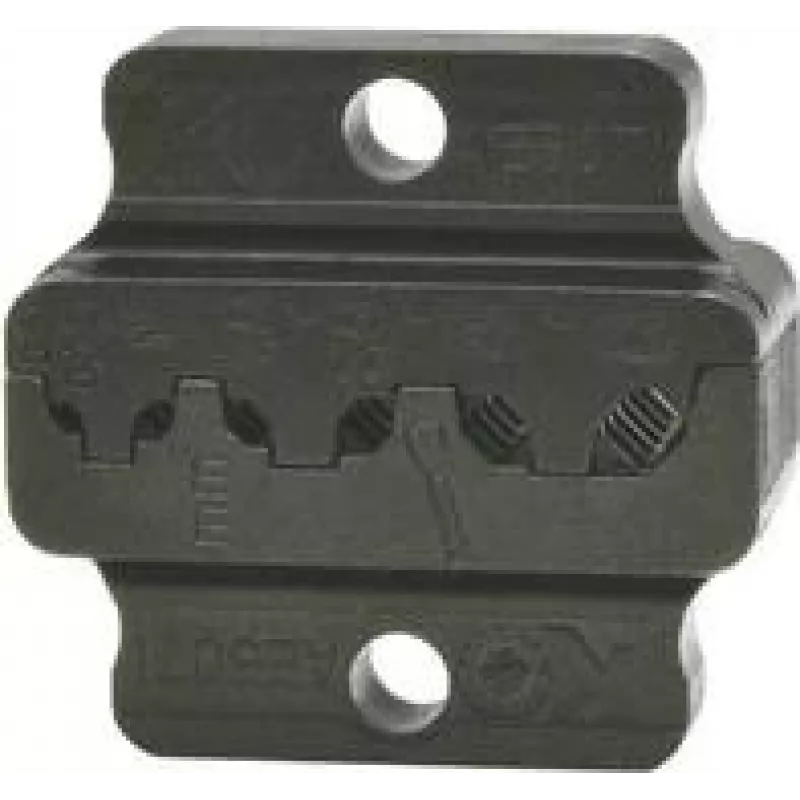

Klauke AE5073 puristusosa 35-50 mm² kuusikulmainen hydraulityökaluille

The Klauke AE5073 press insert delivers precise hexagonal crimps for copper conductors from 35 to 50 mm². Unlike generic dies, this set is machined from high-grade tool steel and matched to Klauke hydraulic crimping tools, ensuring consistent, cold-formed connections on non-insulated cable lugs and connectors.

Highlights

• Hexagonal crimp profile for uniform compression
• Compatible with Klauke EK50/50ML, EK60/22, EK120/22 series
• High wear resistance for repeated industrial use
• Meets DIN 46235 and DIN 46267 requirements

In daily use

Install the die pair into your Klauke hydraulic tool and position the conductor. The hexagonal profile compresses the barrel evenly around the strands, producing a gas-tight connection with low contact resistance. The tool steel construction withstands the high forces of cold crimping without deformation.

Full specifications

• Crimping range: 35 - 50 mm²
• Crimping profile: Hexagonal
• Material: High-grade tool steel
• Compatibility: Klauke hydraulic crimping tools (EK50/50ML, EK60/22, EK120/22 series)
• Application: Non-insulated cable lugs and connectors
• Conductor material: Copper
• Number of pieces: 2

Final note

A reliable die set for professional electrical installations where repeatable, high-quality crimps are essential.
