Klauke putkikaapelikenkä 185 mm² 11R/16 ilman tarkastusreikää

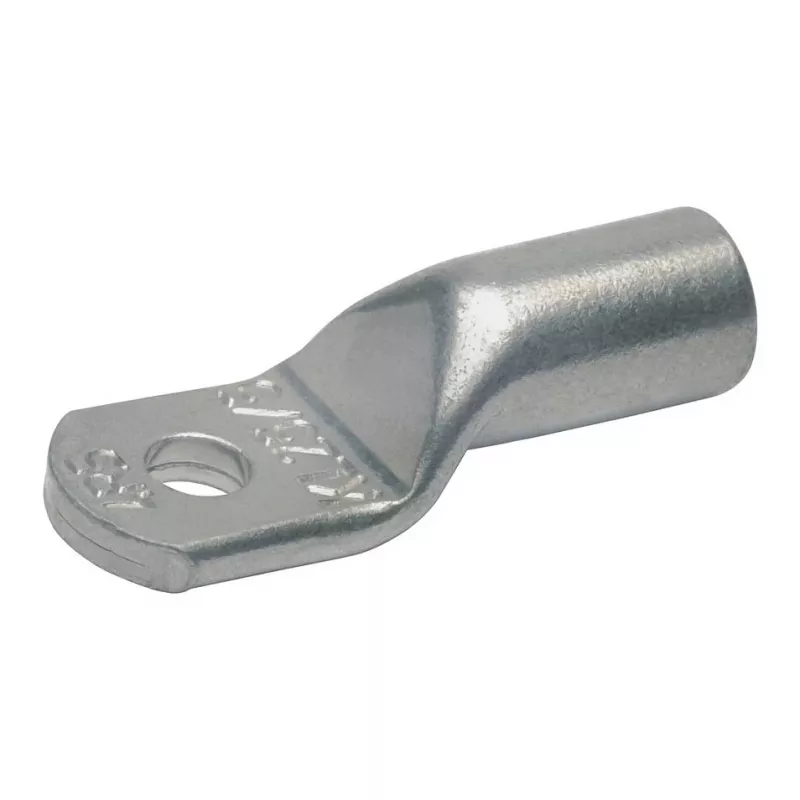

The Klauke 11R/16 tubular cable lug is a high-quality connector designed for reliable and durable electrical connections. Manufactured from tin-plated electrolytic copper (E-Cu), it ensures excellent conductivity and corrosion resistance. This lug is suitable for round stranded (RM) and sector-shaped stranded (SM) copper conductors with a cross-section of 185 mm². It features a bolt hole diameter of 17 mm for M16 bolts and is designed for hexagonal crimping. The lug complies with DIN 46235 standards and is rated for up to 1000 V and 120 °C maximum operating temperature.

Advantages

Tin-plated surface provides superior corrosion protection. Electrolytic copper ensures high electrical conductivity. Without inspection hole design offers a solid, robust connection. Compatible with standard hexagonal crimping tools.

Suitable for

• Electrical installations requiring secure cable terminations
• Power distribution systems
• Industrial and commercial wiring

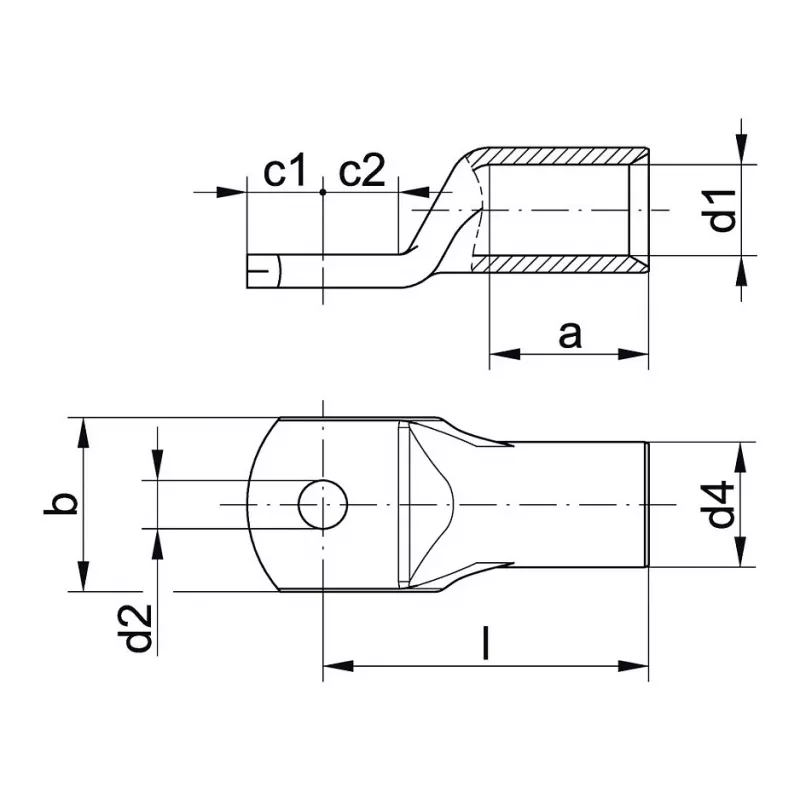

Key specifications

• Conductor cross-section: 185 mm²
• Bolt hole diameter: 17 mm (M16)
• Material: Electrolytic copper, tin-plated
• Overall length: 75 mm
• Palm width: 32 mm
• Palm thickness: 3.5 mm
• Tube inner diameter: 18.5 mm
• Tube outer diameter: 21.5 mm
• Number of bolt holes: 1
• Standards: DIN 46235 compatible

Recommendations

For optimal performance, use with appropriate hexagonal crimping dies and ensure proper conductor preparation. Always follow manufacturer's installation guidelines.
