KLEINHUIS 485M20 metrinen sulkuruuvi M20 x 1,5, nikkelöity messinki, IP68

For sealing unused metric threaded openings, the KLEINHUIS 485M20 blanking plug offers a robust, corrosion-resistant solution. Its nickel-plated brass body with NBR O-ring ensures a reliable seal in demanding environments.

Highlights

• Metric M20 x 1.5 thread
• Nickel-plated brass for corrosion resistance
• IP68 protection rating
• Wide operating temperature range: -40°C to +100°C
• NBR O-ring for secure sealing

In daily use

Install with a 24 mm wrench. The 10 mm thread length allows secure engagement, while the 22 mm overall length provides easy handling. Suitable for industrial and outdoor applications.

Full specifications

• Thread type: Metric
• Thread size: M20 x 1.5
• Material: Nickel-plated brass
• Protection class: IP68
• Operating temperature range: -40°C to +100°C

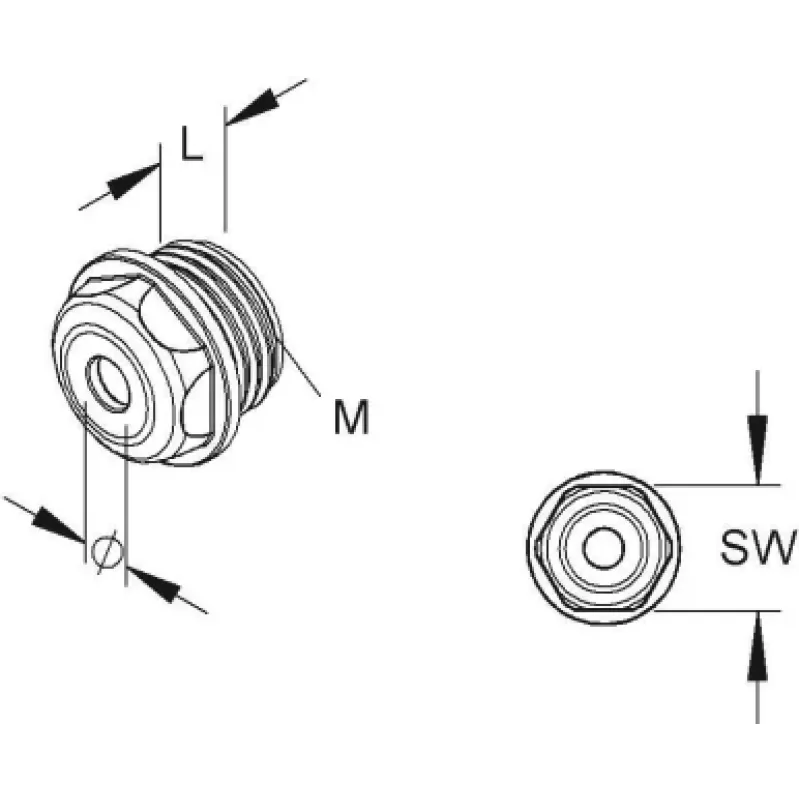

• Wrench size (across flats): 24 mm
• Thread length: 10 mm
• Overall length: 22 mm
• Sealing element: NBR O-ring
• Application: Sealing unused threaded openings
• Standards compliance: RoHS, REACH
• Colour: Metallic (Silver)
• Type: Blanking plug
• Resistance: Corrosion-resistant
• Mounting type: Screw-in

Final note

A reliable choice for sealing metric openings with a durable, IP68-rated design.
