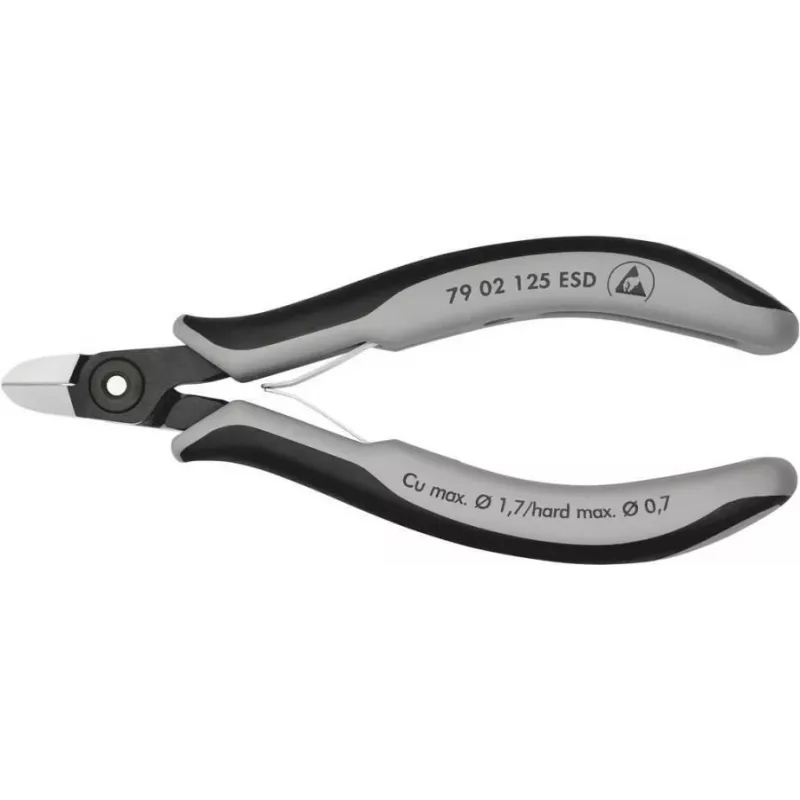

KNIPEX ESD-sivuleikkuri facetilla 125 mm 79 02 125 ESD

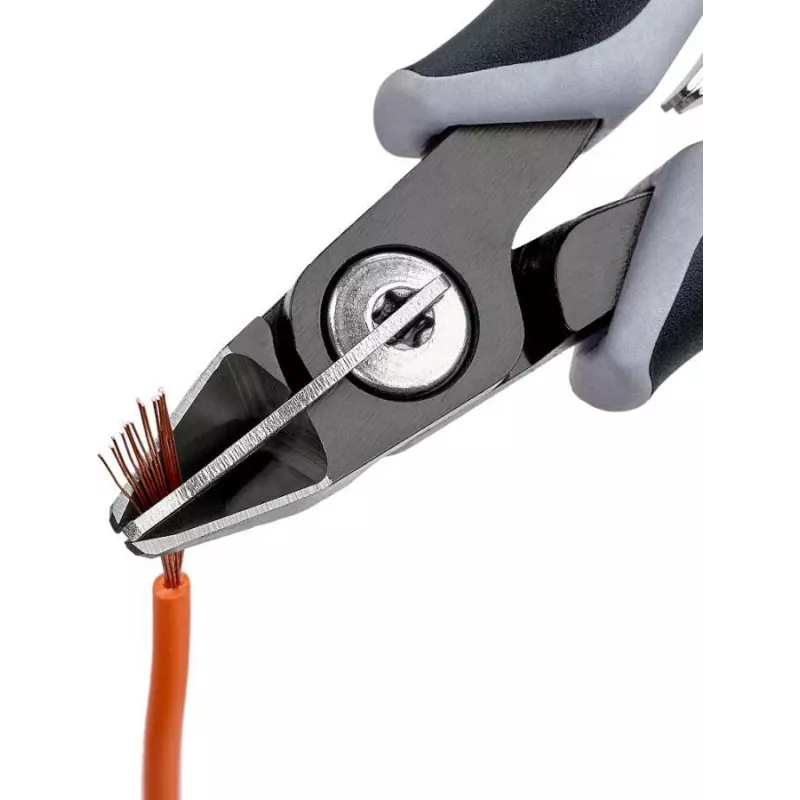

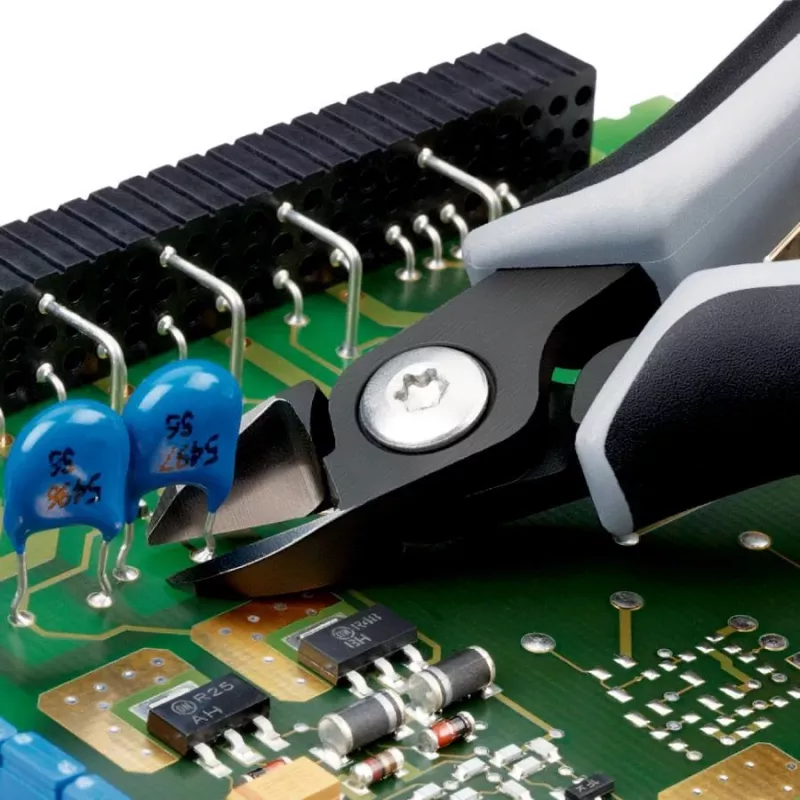

Precision electronics work demands a cutter that won't damage sensitive components with electrostatic discharge. The KNIPEX 79 02 125 ESD diagonal cutter is engineered for ultra-fine cutting in ESD-protected environments, featuring a small bevel on the cutting edges for clean, controlled cuts on delicate wires.

Who is it for

Electronics technicians, precision mechanics, and anyone working with ESD-sensitive devices who needs a reliable, fatigue-free cutting tool.

Main features

• ESD-safe design compliant with IEC 61340-5-1, protecting components from static damage.
• Small bevel (Facette) on cutting edges for precise, flush cuts on fine wires.
• Cutting capacity: soft wire 0.2–1.6 mm (24–14 AWG).
• Precision ground lap joint and opening spring for smooth, low-effort operation.
• Mirror-polished head and ESD-safe multi-component grips for comfort and durability.
• Hardened cutting edges (approx. 54 HRC) for long service life.

Specifications

• Length: 125 mm
• Material: Special tool steel, oil-hardened
• Cutting edge hardness: Approx. 54 HRC
• Cutting capacity (soft wire): 0.2–1.6 mm
• Cutting capacity (AWG): 24–14 AWG
• Handle: ESD-safe multi-component grips
• Joint: Precision ground lap joint
• Opening mechanism: Opening spring
• Head shape: Pointed, narrow head
• Finish: Mirror polished head

Tips

For best results, use the cutter only within its specified capacity. Store in a dry place and occasionally apply a light oil to the joint to maintain smooth operation.
