Koaksiaalikaapeli DeLOCK 13006

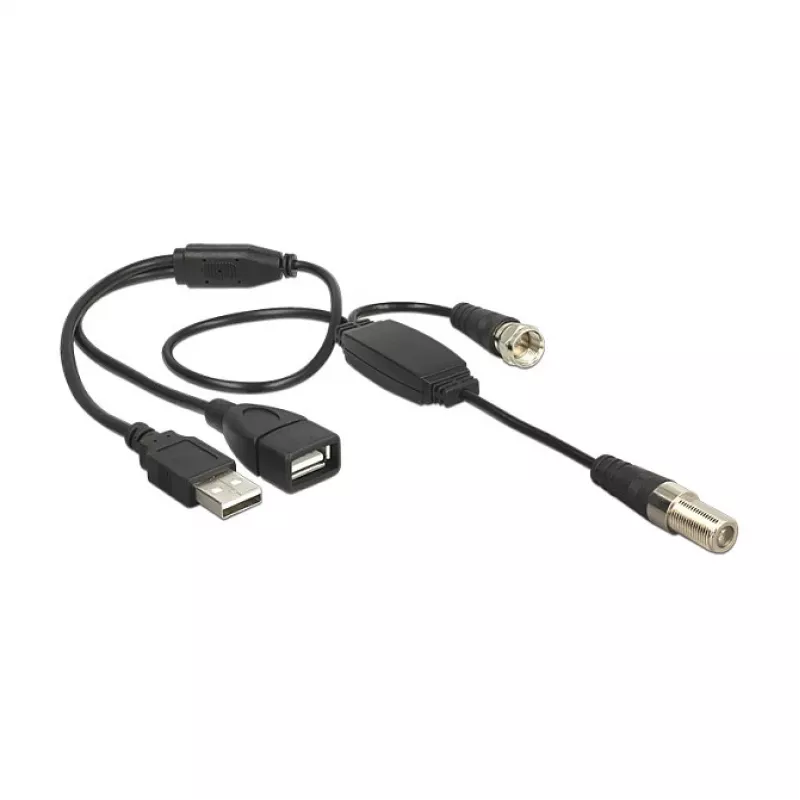

The Coaxial cable DeLOCK 13006 provides a short, reliable connection between an antenna and a TV while enabling 5 V phantom power delivery via USB. It is designed to feed a 5 V supply voltage to active DVB-T/DVB-T2 antennas through the antenna cable when the TV does not provide power at the antenna input. The cable integrates IEC connectors and a USB Type-A connection to allow direct powering from a TV's USB port or another USB power source.

Advantages

The cable combines IEC antenna connectors with USB 2.0 Type-A connectors in a compact 0.22 m length, allowing simultaneous signal transmission and 5 V power delivery. Its integrated USB Type-A jack carries both data and voltage so external power supplies are not required when a compatible USB port is available. The black cable is lightweight and supplied in a polybag for convenient storage and transport.

Suitable for

• Powering active DVB-T/DVB-T2 antennas from a TV USB port
• Connecting antennas to TV sets or set-top boxes with IEC inputs
• Short-distance antenna installations where 0.22 m cable length is sufficient

Key specifications

• Brand: DELOCK
• Model: 13006
• Cable length: 0.22 m
• Connectors: 1 x IEC female, 1 x IEC plug, 1 x USB 2.0 Type-A female, 1 x USB 2.0 Type-A male
• Product colour: Black
• EAN: 4043619130061

How to use

Connect the IEC plug to the antenna input of the TV or set-top box and the IEC female to the antenna. Plug the USB Type-A male into the TV's USB port (or another 5 V USB power source) to supply phantom power to the active antenna. Ensure the TV or USB power source provides the required 5 V output before connecting. Use the USB Type-A female if an extension or alternative USB connection is needed.

Recommendations

Verify that the TV's USB port supplies 5 V and sufficient current for the active antenna. Avoid routing the short 0.22 m cable through areas with excessive bending or mechanical stress to maintain connector integrity.
