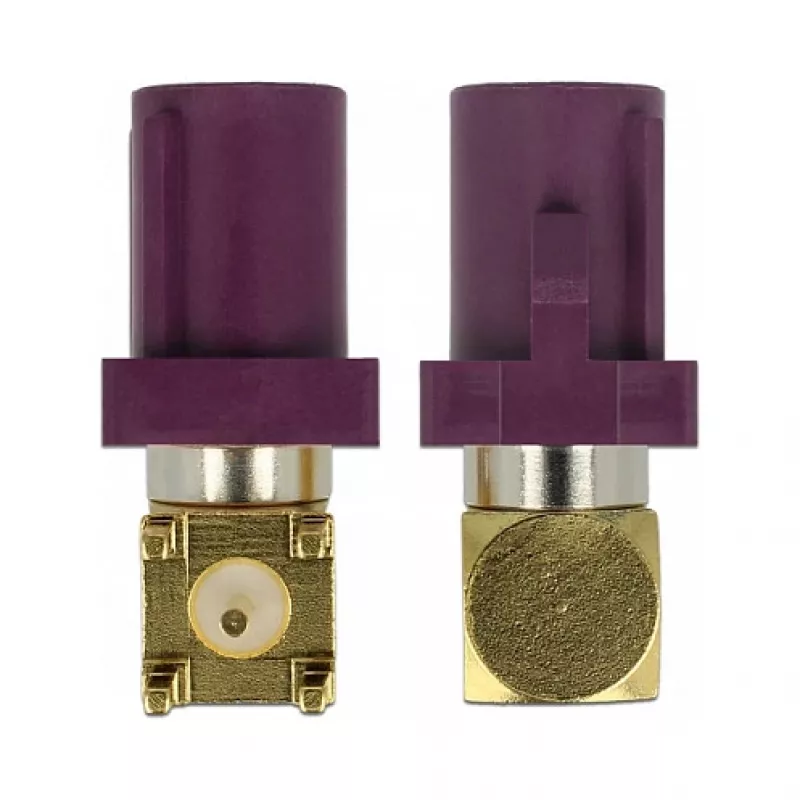

Koaksiaaliliitin DeLOCK 89775

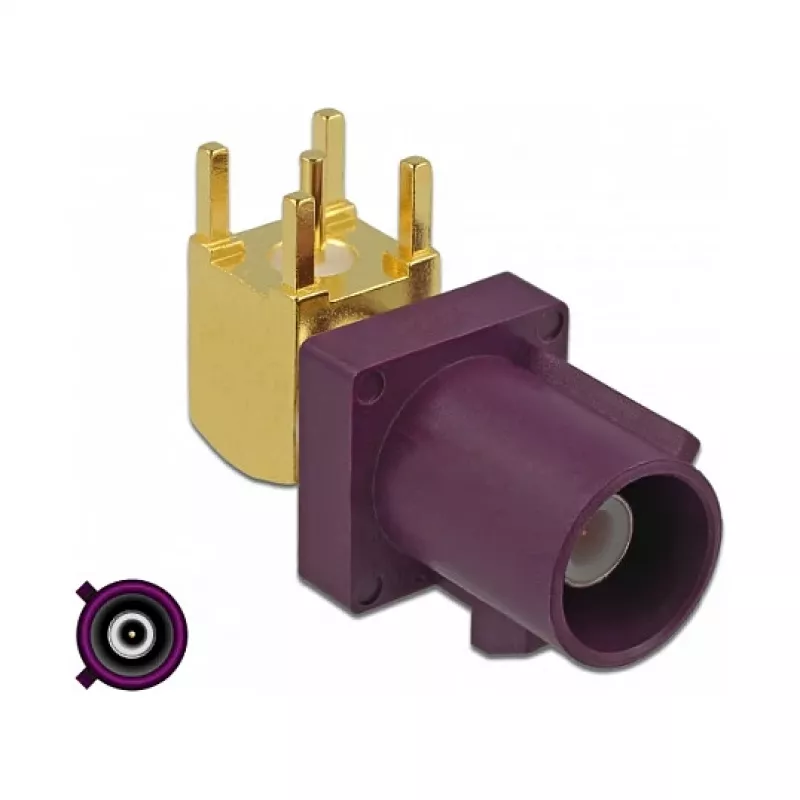

The DeLOCK 89775 is a compact coaxial connector designed for radio frequency technology. It features a FAKRA D male connector with a 90° angle and a small footprint (width 11.5 mm, depth 21.3 mm). Supplied as a single unit in a polybag, this connector is intended for reliable RF connections in limited-space installations.

Advantages

The angled FAKRA D male connector enables space-saving cable routing and straightforward mating with compatible FAKRA D sockets. Its compact dimensions make it suitable for installation where depth or width is restricted. The connector is finished in gold and stainless steel with a violet coding, providing standard FAKRA identification and corrosion-resistant contact surfaces.

Suitable for

Key specifications

How to use

Align the FAKRA D male connector with the corresponding female socket and push until it clicks into place, ensuring correct mating guided by the violet coding. Use appropriate cable preparation and tools for coaxial terminations according to the cable manufacturers instructions. Verify the mechanical fit and electrical continuity after installation.

Recommendations

Use the connector only with compatible FAKRA D interfaces and cables rated for the intended RF frequency range. Avoid excessive mechanical stress or bending at the connector to maintain signal integrity and longevity.
