Koaksiaaliliitin Schwaiger KVBS70 531 pistoke liitin nikkeli 3 kpl

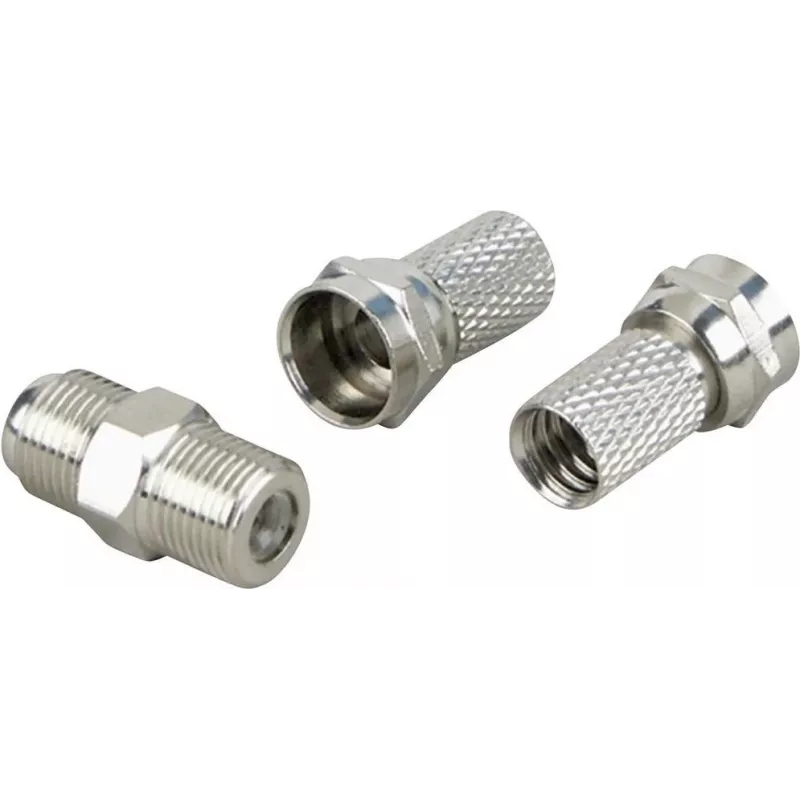

This SCHWAIGER® set includes three coaxial F-type connectors: two F connectors for termination on coaxial cables and one F coupling piece for extending SAT connection cables with F connectors. The connectors are made with nickel-plated metal to ensure stable electrical contact and corrosion resistance for typical satellite and TV coaxial installations.

Advantages

The nickel-plated design offers durable contact surfaces and resistance to oxidation. The package contains both male and female variants and a coupling piece, providing flexibility for terminating cables and extending existing feeds. Installation is tool-assisted: after correct stripping of the cable, the F connectors are screwed onto the cable sheath for a secure mechanical and electrical connection.

Suitable for

• Termination of satellite (SAT) and TV coaxial cables
• Extending coaxial connection runs using F connector-equipped cables
• Home installations and small professional cabling tasks

Key specifications

• Brand: SCHWAIGER®
• Model / MPN: KVBS70531
• EAN: 4004005222333
• Type: F-type coaxial connector set (male, female, coupling)
• Finish: Nickel-plated
• Quantity: 3 pieces

How to use

Strip the coaxial cable carefully to the correct dimensions before assembly. Slide the connector onto the prepared cable end and screw the F connector onto the cable sheath until it is firmly seated. To extend a run, screw the male and female connectors into the coupling piece to join two F-equipped cables. Use a dedicated coaxial stripping tool and, if available, SCHWAIGER® aids for screwing on connectors to ensure correct fit and reliable contact.

Recommendations

For best results, use a coaxial stripping tool to expose the conductor and dielectric to the required lengths and avoid damaging the inner conductor. Check the connection for secure mechanical fit and low play; tighten by hand and, if necessary, with an appropriate screwdriver or wrench, taking care not to over-tighten and deform the connector.
