Koaksiaaliliitin SMC DeLOCK 65851

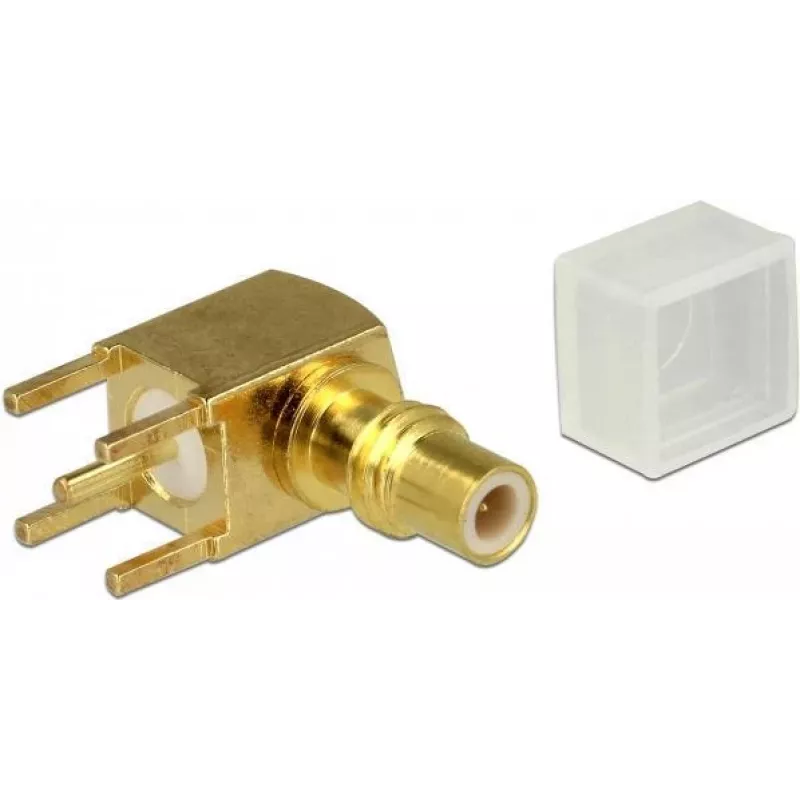

The DeLOCK 65851 is a compact SMC coaxial connector designed for 50 Ω radio frequency applications. It has a female connector type and small size (6.5 mm × 15.1 mm × 12.7 mm), making it suitable for integration into various electronic devices where reliable RF connections and limited space are factors.

Advantages

The connector offers a standardized SMC interface for consistent RF signal transmission at 50 Ω impedance. Its compact dimensions support space-saving installations while the female contact design ensures secure mating with compatible SMC male plugs. The component is manufactured to deliver stable performance and mechanical durability for radio frequency technology.

Suitable for

• 50 Ω RF connections in electronic equipment
• Integration into compact communication devices and measurement instruments
• Replacement or repair of SMC female ports

Key specifications

• Connector type: SMC, female
• Impedance: 50 Ω
• Dimensions (W × D × H): 6.5 mm × 15.1 mm × 12.7 mm
• Manufacturer: DELOCK
• Manufacturer part number (MPN): 65851
• EAN: 4043619658510

How to use

Align the DeLOCK 65851 female SMC connector with the matching male SMC plug and insert until a secure connection is achieved. Ensure mating surfaces are clean and free of debris before connection. Use appropriate torque and mounting methods if the connector is mounted to a circuit board or chassis to avoid mechanical stress.

Recommendations

Use this SMC female connector for 50 Ω RF signal paths and in installations where compact size and reliable mating are required. Verify compatibility with the mating SMC male connector and follow standard RF handling precautions, such as avoiding excessive bending of coaxial cables and protecting contacts from contamination.
