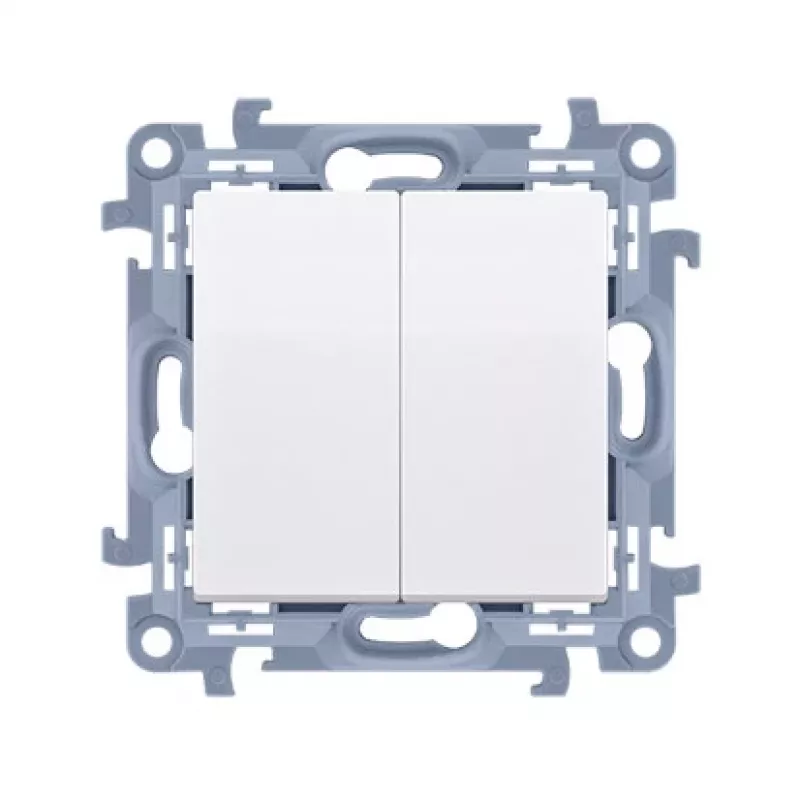

KONTAKT SIMON 10 moduuli valkoinen painike 2x 2Z ruuviliittimet 10AX 250V

The KONTAKT SIMON 10 Module White Push-Button Switch is a high-quality, double push-button switch designed for general switching, lighting control, and automation applications. With two actuators and two normally open (NO) contacts per actuator, this switch offers reliable momentary operation. It features screw terminals for secure wiring and is rated for 10AX at 250V AC. The white thermoplastic construction ensures durability and a clean aesthetic for flush mounting in standard module installations.

Advantages

This push-button switch provides a compact 1-module design, making it ideal for space-saving installations. The screw terminals allow for easy and secure connections, while the momentary operation ensures precise control. With a mechanical durability of over 40,000 cycles and electrical durability exceeding 10,000 cycles, it offers long-lasting performance. The IP20 protection degree makes it suitable for indoor use in dry environments.

Suitable for

• Lighting control in residential and commercial buildings
• Automation systems requiring momentary switching
• General switching applications where a double push-button is needed

Key specifications

• Product Type: Push-Button Switch
• Brand Series: Simon 10
• Number of Actuators: 2 (Double Push-Button)
• Contact Configuration: 2x 2 Normally Open (NO)
• Terminal Type: Screw Terminals
• Rated Current: 10AX
• Rated Voltage: 250V AC
• Color: White
• Material: Thermoplastic
• Mounting Type: Flush Mounting
• Protection Degree: IP20
• Operating Temperature Range: -5°C to +40°C
• Type of Operation: Momentary (Non-latching)
• Module Width: 1 Module
• Backlight/Indicator: No
• Compliance Standards: CE, RoHS
• Mechanical Durability: >40,000 cycles
• Electrical Durability: >10,000 cycles

Recommendations

For optimal performance, ensure that the switch is installed in a dry indoor environment within the specified temperature range. Use appropriate screw terminals for secure connections. This product is ideal for integration into Simon 10 series systems.
