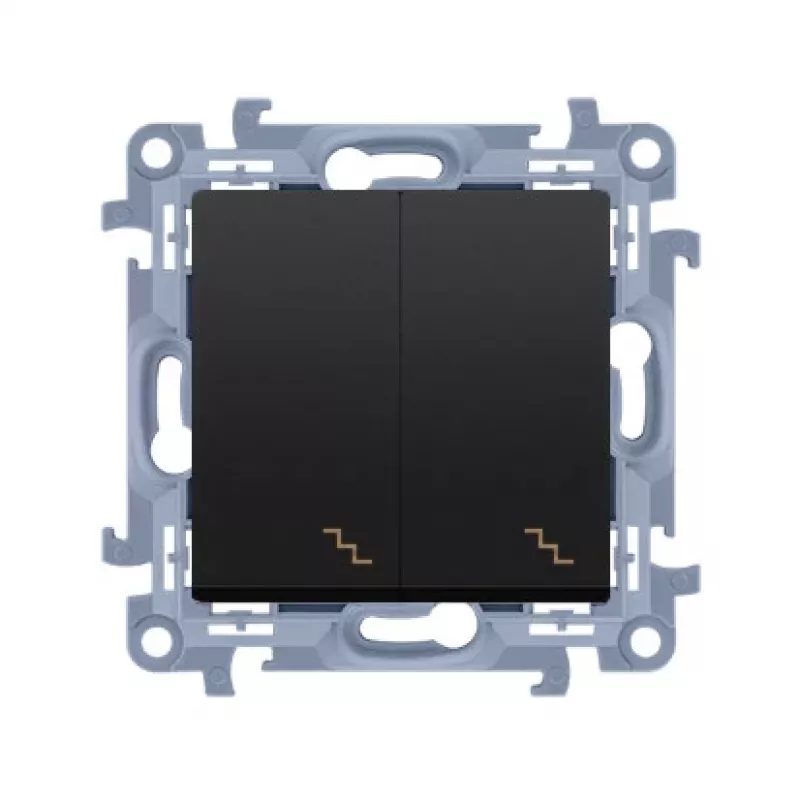

KONTAKT SIMON 10 yleiskytkinmoduuli 10AX 250V mattamusta 2x ruuviliittimet

The KONTAKT SIMON 10 Universal Switch Module is a high-quality, flush-mounting switch designed for residential and commercial lighting control. With a sleek matte black finish and robust screw terminals, it offers reliable performance and easy installation.

Advantages

This universal switch module features a durable thermoplastic construction, rated current of 10AX, and voltage of 250V AC. Its screw terminals accommodate up to 2 x 2.5 mm² rigid conductors, ensuring secure connections. The rocker actuation provides smooth on/off operation, compatible with 1-way or 2-way switching.

Suitable for

• Residential lighting control
• Commercial lighting systems
• Integration with Kontakt Simon 10 series frames and mechanisms

Key specifications

• Product Type: Universal Switch Module
• Series: Kontakt Simon 10
• Colour: Matte Black
• Rated Current: 10AX
• Rated Voltage: 250V AC
• Connection Type: Screw Terminals
• Number of Terminals: 2
• Mounting Type: Flush Mounting
• Module Size: 1-Module
• Material: Thermoplastic (PC/ABS)
• IP Rating: IP20
• Operating Temperature: -5°C to +35°C
• Standards: CE, RoHS
• Switch Function: On/Off (1-way or 2-way compatible)
• Number of Poles: Single Pole
• Terminal Capacity: Up to 2 x 2.5 mm² rigid conductor
• Actuation Type: Rocker

Recommendations

For optimal performance, use with Kontakt Simon 10 series frames. Ensure proper installation by a qualified electrician. This module is ideal for new installations or retrofitting existing systems.
