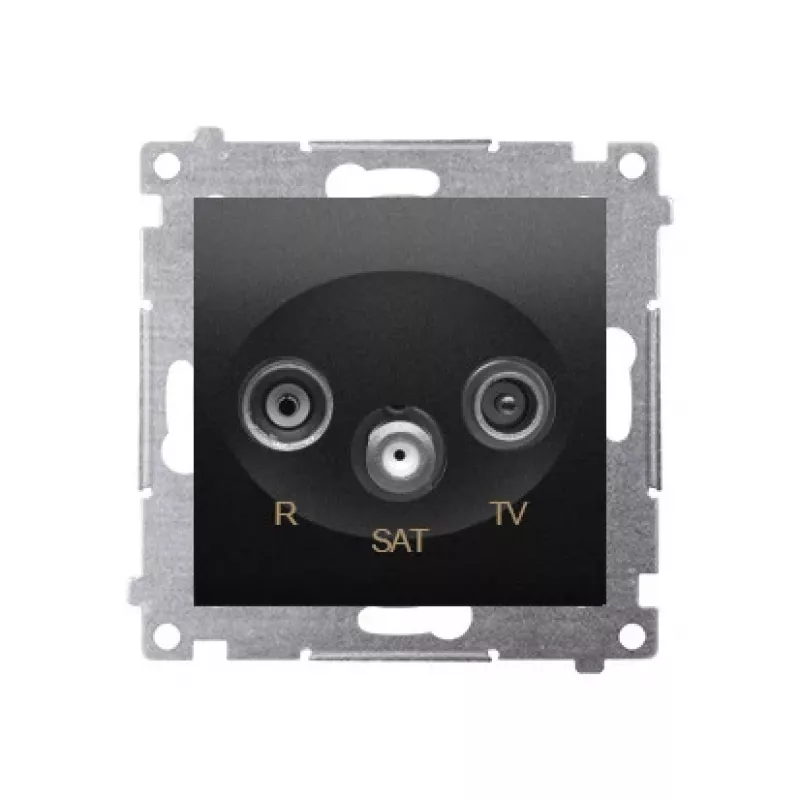

KONTAK-SIMON Simon 54 RTV-SAT päätepistorasia 1dB, matta musta

Are you finishing a TV, radio, and satellite installation and need a reliable wall outlet that terminates the cable with minimal signal loss? This KONTAK-SIMON Simon 54 RTV-SAT socket is engineered for end-of-line use, providing a clean, professional connection for domestic and commercial media systems.

Who is it for

Ideal for electricians, AV installers, and homeowners setting up television, FM/DAB radio, and satellite distribution networks. The socket is part of the Simon 54 modular system, designed to fit seamlessly with Simon 54 frames and cover plates.

Main features

• End-of-line / termination socket with 1 dB attenuation for clean signal termination
• Three independent outputs: Radio (R), Television (TV), and Satellite (SAT)
• Excellent shielding effectiveness: >75 dB for SAT, >65 dB for TV/R eliminates interference
• Return loss >10 dB ensures reliable signal transmission
• Screw terminal connections for secure and quick wiring
• Flush-mounted modular design integrates with Simon 54 system

Specifications

• Brand: KONTAK-SIMON
• Model: DASK.01/49
• MPN: DASK.01/49
• EAN: 5902787871147
• Product type: RTV-SAT Socket
• Configuration: Terminal / End-of-Line
• Attenuation: 1 dB
• Frequency range (Radio/TV): 5 - 862 MHz
• Frequency range (Satellite): 950 - 2400 MHz
• Impedance: 75 Ohm
• Number of outputs: 3 (R, TV, SAT)
• Colour: Matte Black
• Material: Plastic (PC/ABS)
• Mounting type: Flush-mounted (Modular)
• Connection type: Screw terminals
• Series: Simon 54

Tips

To achieve optimal performance, use with Simon 54 frames and cover plates. Ensure the cable is properly stripped and securely tightened in the screw terminals. For end-of-line installations, no additional termination resistor is required as this socket is designed for that purpose.
