Kortinlukija SBOX CR-02 USB-liitännällä SD- ja microSD-korteille

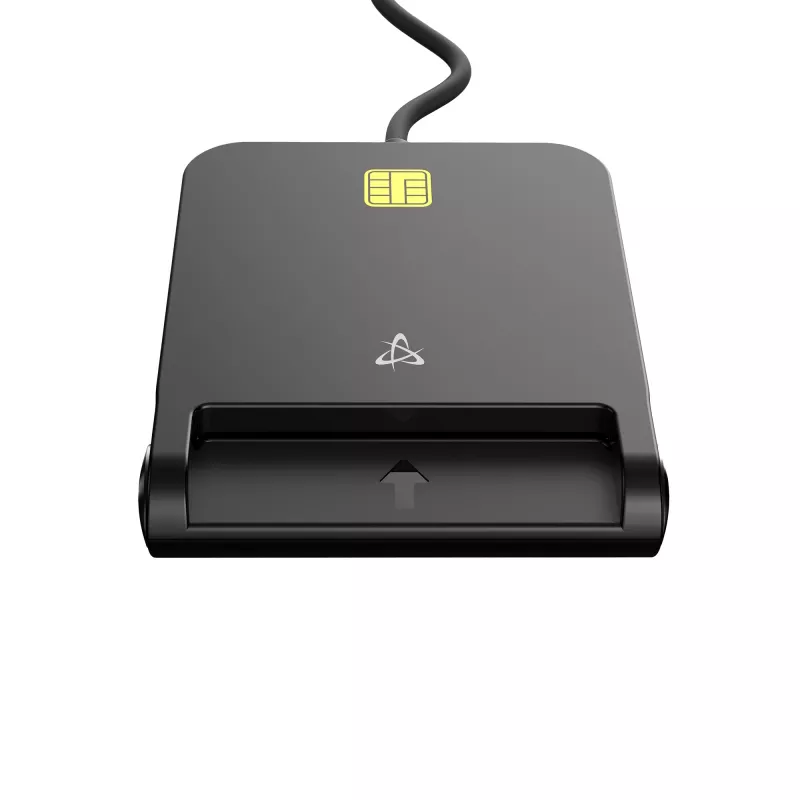

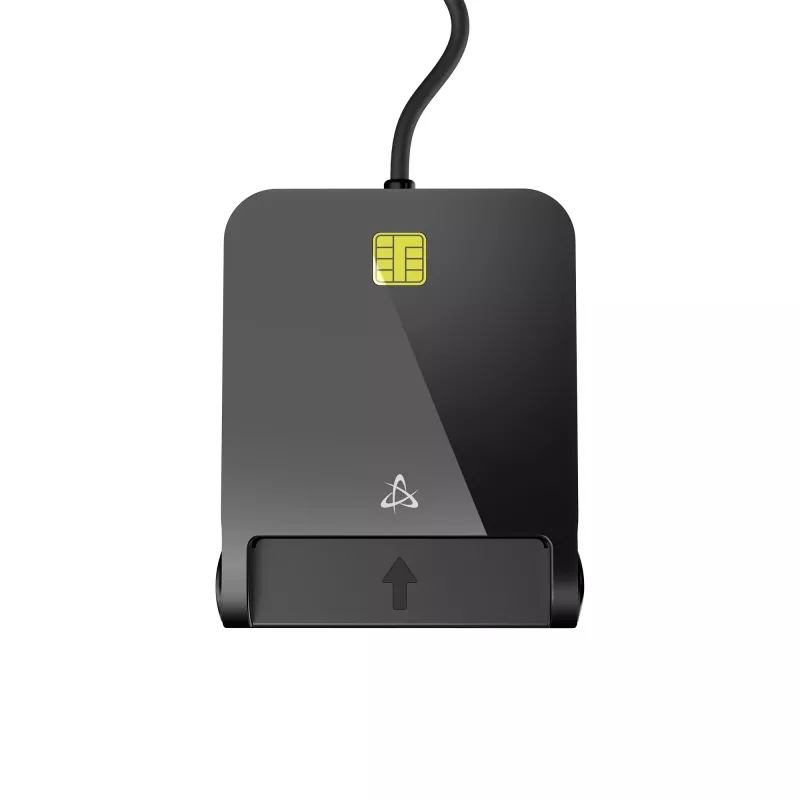

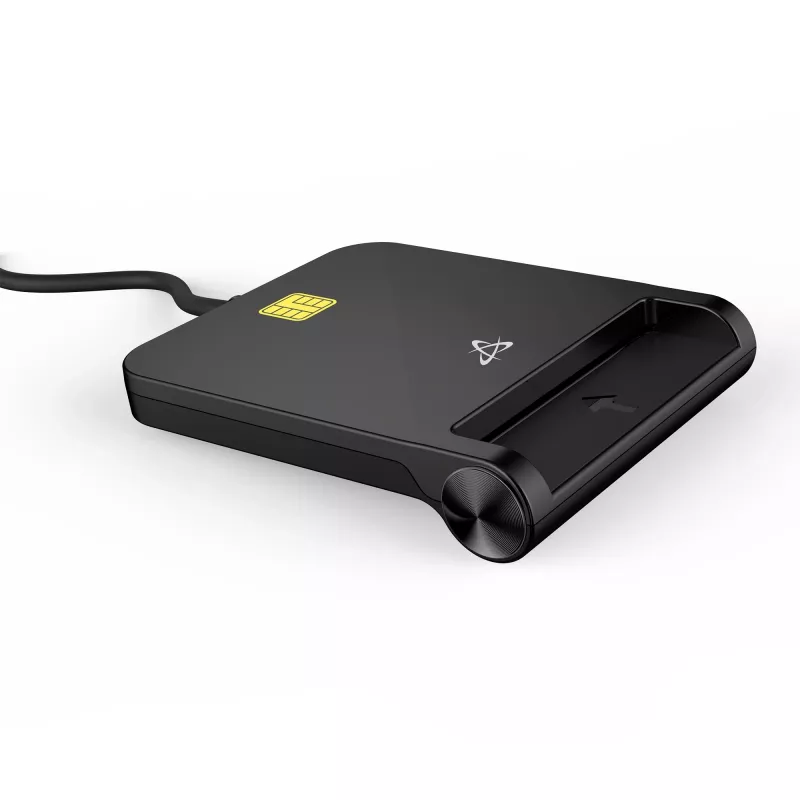

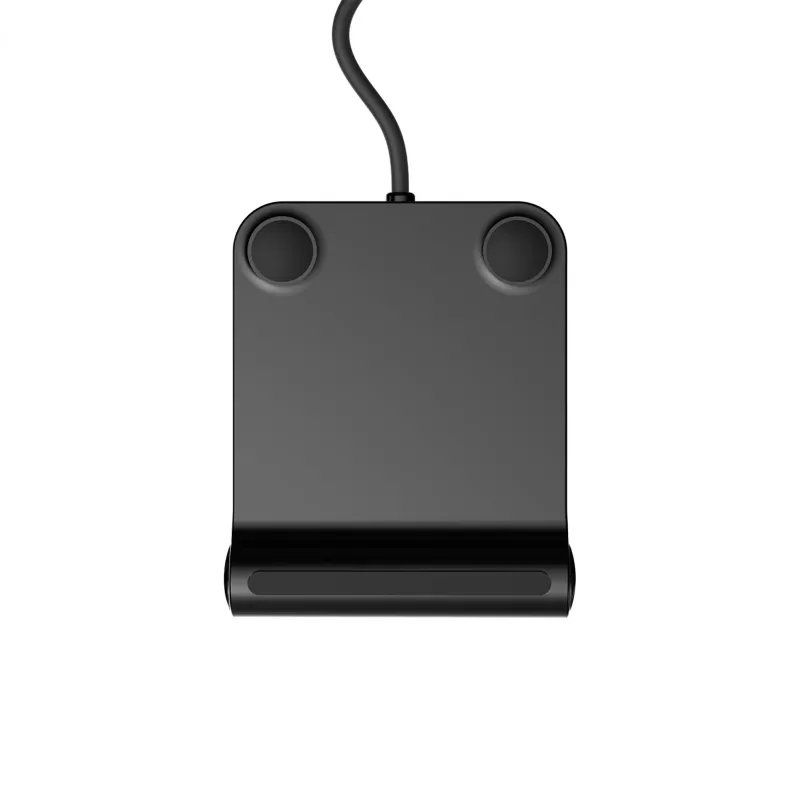

The SBOX CR-02 Card Reader is a compact USB device for reading a wide range of smart cards and memory cards. It provides USB 2.0 connectivity with a 1.5 m cable and draws power from the host USB port. The reader supports card types compliant with ISO 7816 class A, B and C (5V, 3V and 1.8V) and is compatible with Windows, macOS and several Linux distributions.

Advantages

The reader offers stable USB 2.0 performance with transfer speeds up to 420 Kbps when supported by the card. Its ABS plastic housing and black finish make it durable and unobtrusive. Plug-and-play operation is supported on most systems, and the 1.5 m cable provides flexible placement for desktop or laptop use.

Suitable for

• Reading ID, credit, ATM and other ISO 7816 smart cards
• Secure authentication and access control on Windows, macOS and Linux systems
• Office and home use where a reliable external smart card reader is required

Key specifications

• Interface: USB 2.0 / USB 1.1
• Transfer speed: up to 420 Kbps (when supported by the card)
• Power supply: via USB
• Supported card types: ISO 7816 class A, B and C (5V, 3V and 1.8V)
• Supported cards: ATM/CAC/ID/IC/SIS/Credit cards
• Compatibility: Windows 10/11, macOS 10.15 and above, Linux (Red Hat 9, Ubuntu 8.04, Fedora Core 9 and above)
• Material: ABS plastic, Color: Black
• Cable length: 1.5 m

How to use

Connect the SBOX CR-02 to an available USB port on your computer. The device receives power from the USB port and should be recognized automatically on most modern operating systems. Insert a compatible smart card into the reader contact-side down following the card slot orientation. Use your system’s card management or authentication software to access card data or perform secure authentication operations.

Recommendations

Use the reader on a stable surface and avoid pulling or bending the cable excessively. For secure authentication, keep card contacts clean and follow your organization’s security procedures. If the reader is not recognized, ensure the operating system version is supported and check connection integrity.
