Kuitu-lähetin-vastaanotinmoduuli BlueOptics ACM762-10000S-BO QSFP28 LC

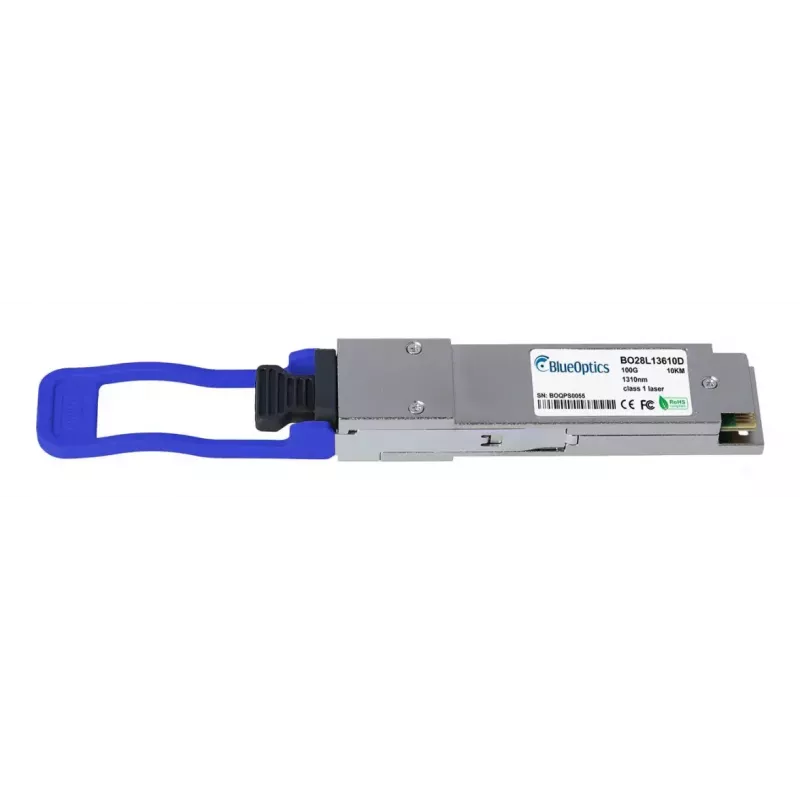

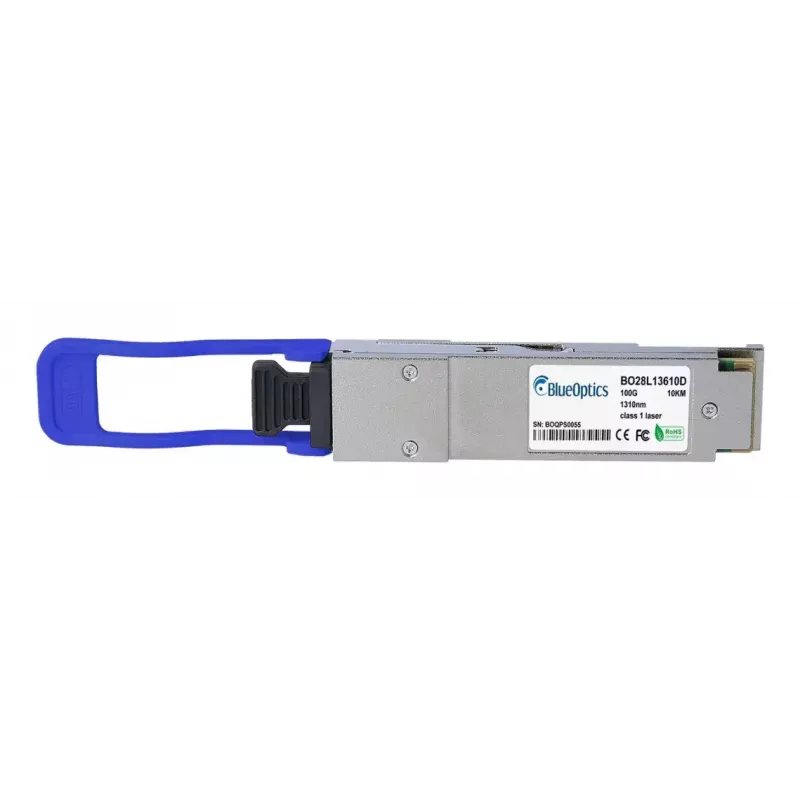

The BlueOptics ACM762-10000S-BO QSFP28 LC is a fiber optic transceiver module designed for 100G high-speed data transmission over single-mode fiber. Built to MSA QSFP28 form-factor standards, the module uses an LC duplex connector for optical links, comes in an aluminium housing and weighs approximately 40 g. It supports 100GBASE-LR4 optical interfaces and is intended for installation in compatible network equipment that accepts QSFP28 LR4 modules.

Advantages

The module provides a standardized QSFP28 form factor and LC connector for broad interoperability with equipment that supports 100GBASE-LR4 optics. Its aluminium enclosure offers a compact, durable package and a low weight of around 0.04 kg. The transceiver is designed for long-reach single-mode fiber connections and includes features typical of modern optical modules, such as support for digital diagnostics monitoring when enabled by host hardware.

Suitable for

• 100 Gbps Ethernet links over single-mode fiber
• Long-reach connections in campus and data center interconnects
• Use in QSFP28-compatible switches, routers and storage systems that accept 100GBASE-LR4 optics
• Environments requiring LC duplex terminated fiber cabling

Key specifications

• Interface type: QSFP28 (100G)
• Optical standard: 100GBASE-LR4 (single-mode fiber)
• Connector: LC duplex
• Housing material: aluminium
• Weight: approx. 0.04 kg

How to use

Install the QSFP28 transceiver into a compatible QSFP28 port on a switch, router or other network device while the host device is powered down or following the vendor’s hot-swap guidance. Connect LC duplex single‑mode fiber patch cords to the module’s LC ports, observing correct transmit/receive orientation. Verify link status and speed in the host device management interface. If digital diagnostics monitoring (DDM/DOM) is required, confirm that the host hardware and software support reading the module’s status parameters.

Recommendations

For reliable operation, use single-mode LC duplex fiber cables of appropriate attenuation and length for long-reach LR4 links, keep optical connectors clean, and confirm host compatibility with 100GBASE-LR4 QSFP28 modules. Follow the equipment vendor’s instructions for module insertion/removal and diagnostics access.
