Kuitu-lähetin-vastaanotinmoduuli BlueOptics OC10-LR-OPT-1-BO SFP+ 10 000 m

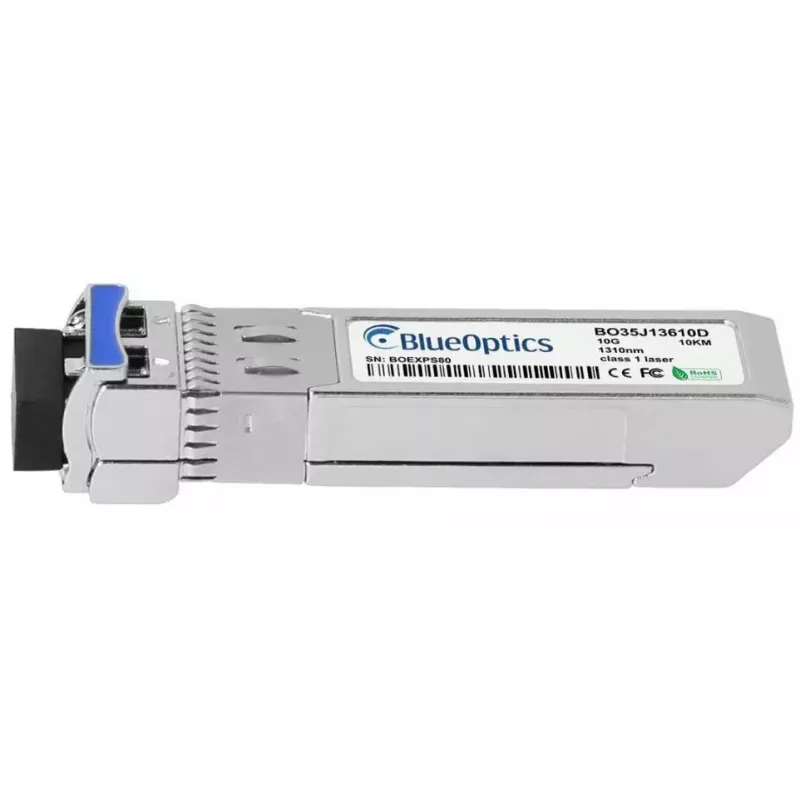

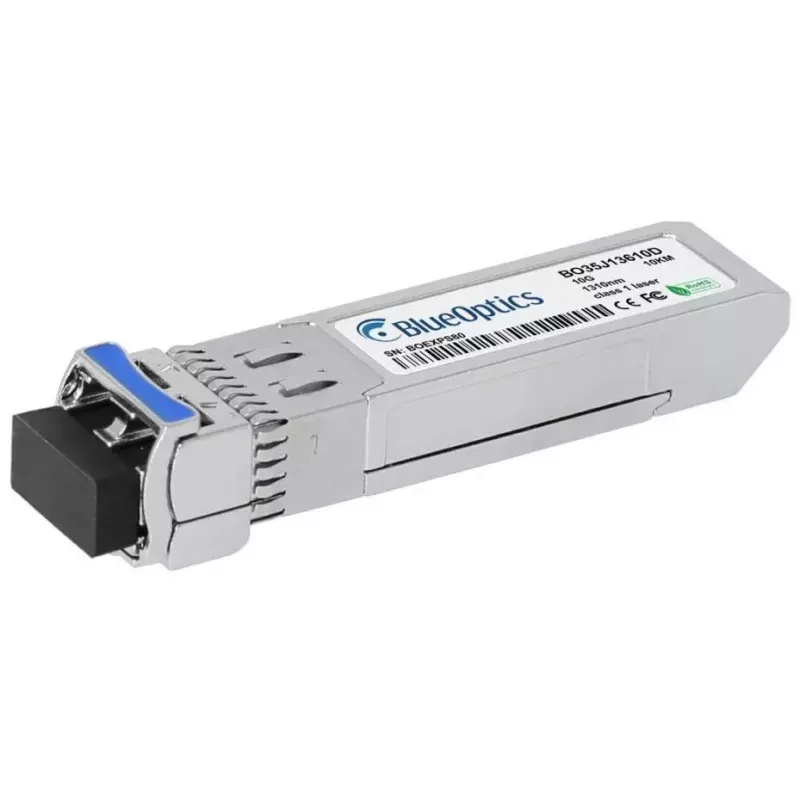

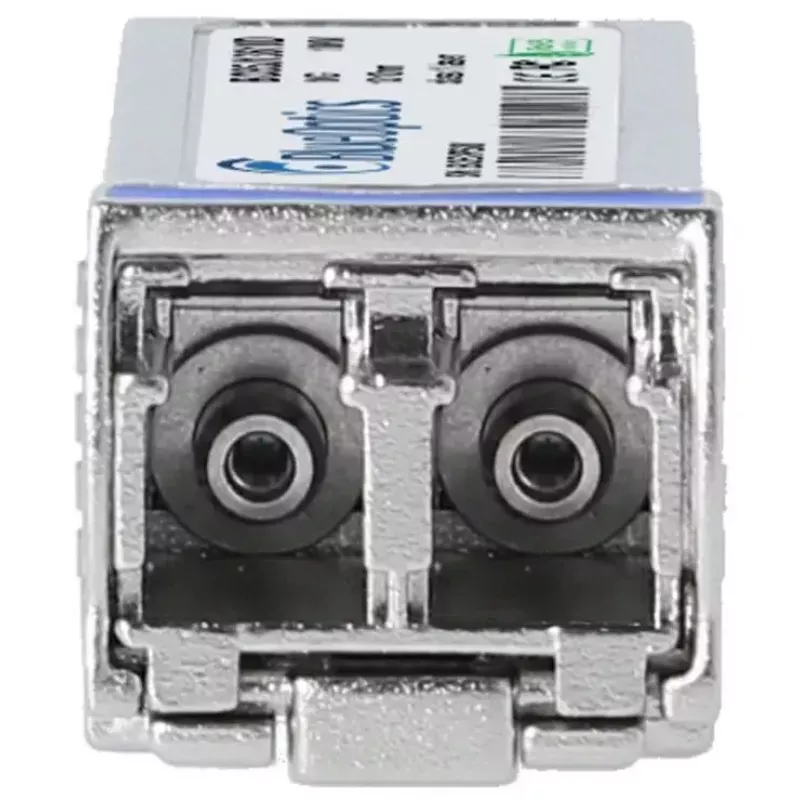

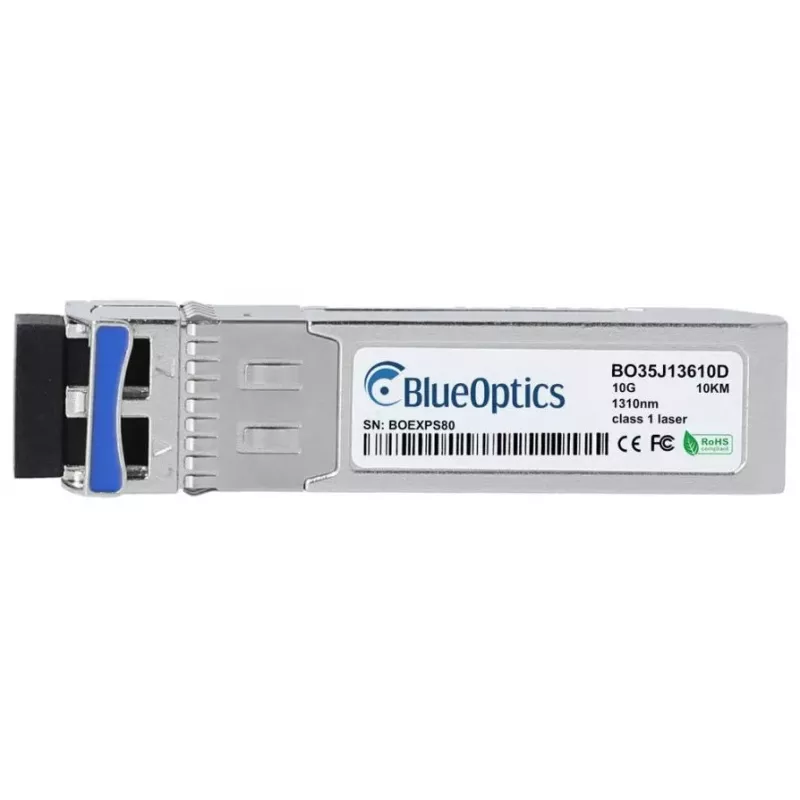

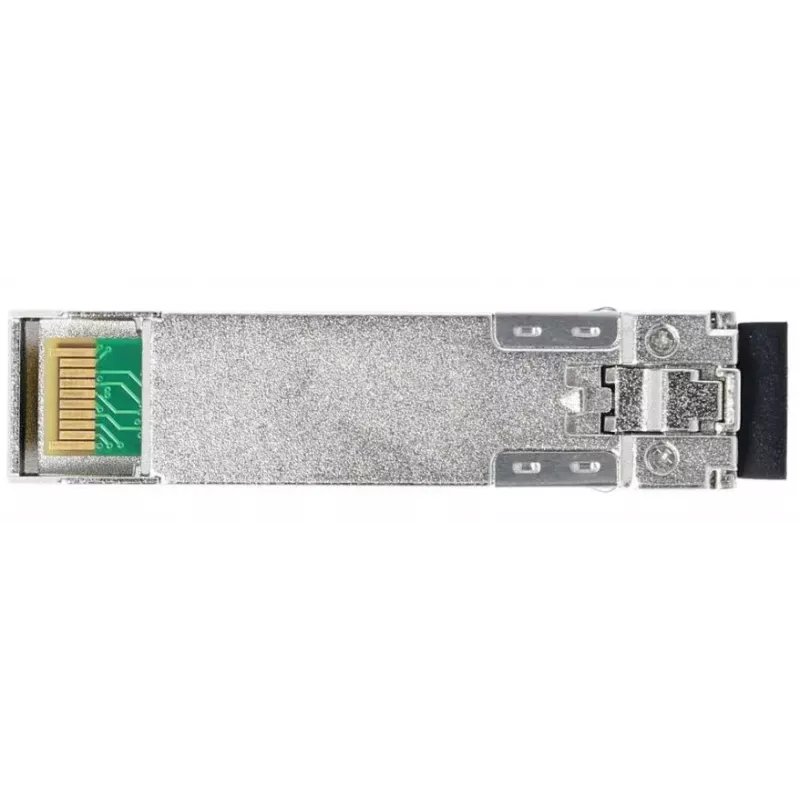

The BlueOptics OC10-LR-OPT-1-BO SFP+ 10000 m is a 10GBASE-LR fiber optic transceiver module designed for long-distance single-mode fiber links up to 10,000 meters. The module comes in an aluminum housing, weighs approximately 20 g and uses an LC duplex connector following MSA standards. It supports 10 Gbit/s optical transmission with separate 1310 nm transmitter and receiver channels and is compatible with systems that accept standard SFP+ 10GBASE-LR optics.

Advantages

This SFP+ transceiver provides long-reach 10 Gbit/s optical connectivity over single-mode fiber while maintaining a compact, lightweight aluminum enclosure that supports rack and chassis installations. Compliance with MSA form-factor and LC duplex connector standards ensures broad interoperability with switches, routers and storage devices that accept SFP+ 10GBASE-LR modules. The module is designed for stable optical performance and includes support for standard diagnostic monitoring interfaces where supported by host hardware.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP+ module into any compatible SFP+ slot on supported switches, routers or host adapters following the equipment manufacturer’s hot-plug procedures. Use LC duplex single-mode patch cords to connect to the remote transceiver or patch panel, ensuring correct TX-to-RX polarity. Verify link status and speed on the host device; enable or confirm support for 10GBASE-LR if required by the platform. If the host hardware supports digital diagnostics (DDM/DOM), enable monitoring to read optical parameters via the management interface.

Recommendations

For optimal performance, use single-mode LC duplex fiber and quality patch cords, protect connectors from contamination, and ensure the host device supports SFP+ 10GBASE-LR modules and any diagnostic features you plan to use. Follow vendor guidelines for cable routing and bend radius to maintain link integrity.
