Kuitu ST-ST simplex -adapteri ACT EA1001

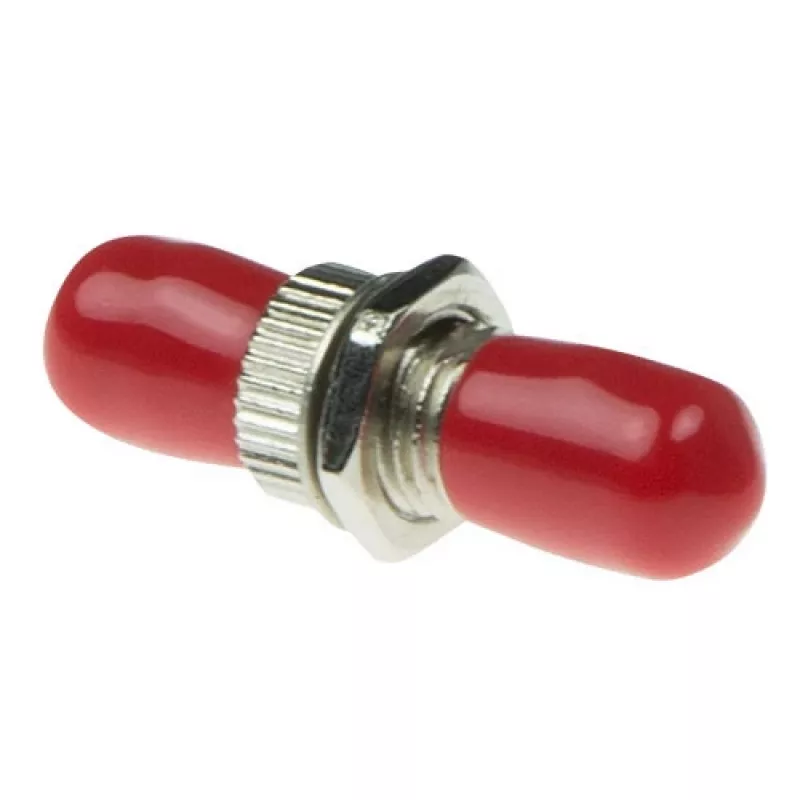

The ACT Fiber optic ST-ST simplex adapter EA1001 is a compact coupling designed to connect two ST-compatible fiber optic connectors in simplex configurations. Constructed from materials selected to preserve optical clarity, the adapter provides stable alignment of fiber ferrules and aims to minimize insertion loss and back reflection. Its small form factor makes it suitable for installation in confined patch panels, enclosures, and equipment racks where ST simplex connections are required.

Advantages

This ST-ST simplex adapter offers precise ferrule alignment for consistent optical performance and low insertion loss. The durable housing resists wear from repeated mating cycles while maintaining the physical stability of the connection. Its simple push-and-twist ST interface ensures quick field installation and replacement without special tools. The compact design reduces space requirements and supports reliable signal continuity in point-to-point fiber links.

Suitable for

• Connecting ST-terminated single-fiber links in local area networks
• Patching fiber runs in telecommunication closets and equipment racks
• Laboratory and test bench fiber patching where simplex connections are used
• Repairing or extending existing ST simplex fiber links

Key specifications

• Connector type: ST to ST, simplex
• Optical mode: single-mode or multimode compatibility depending on connected fibers
• Insertion loss: low-loss ceramic or precision-aligned sleeve expected (typical values depend on fiber type and polishing)
• Return loss: designed to minimize reflections through accurate ferrule alignment
• Body material: durable metal or high-strength polymer housing for mechanical stability
• Mounting style: inline simplex adapter for panel or bulkhead mounting in compact spaces
• Durability: designed for multiple mating cycles with maintained alignment

How to use

Ensure both fiber ends are clean and free of dust or debris before mating. Align the ST connector ferrule with the adapter entry and insert, then push and rotate to engage the bayonet-style locking mechanism until the connector seats. Confirm the connection by checking optical continuity or performing a light-level test. To remove, depress the connector’s release and twist while withdrawing. Follow standard fiber handling procedures to avoid bending or stressing the fiber near the connection point.

Recommendations

Regularly inspect and clean connector endfaces with appropriate fiber cleaning tools to maintain low insertion loss. Use dust caps when adapters are not in use to prevent contamination. For critical or long-distance single-mode links, verify connector polish types and test insertion/return loss values to ensure link performance meets system requirements.
