Kuitulähetin-vastaanotinmoduuli BlueOptics 100-04744-BO 100000 Mbit/s QSFP28

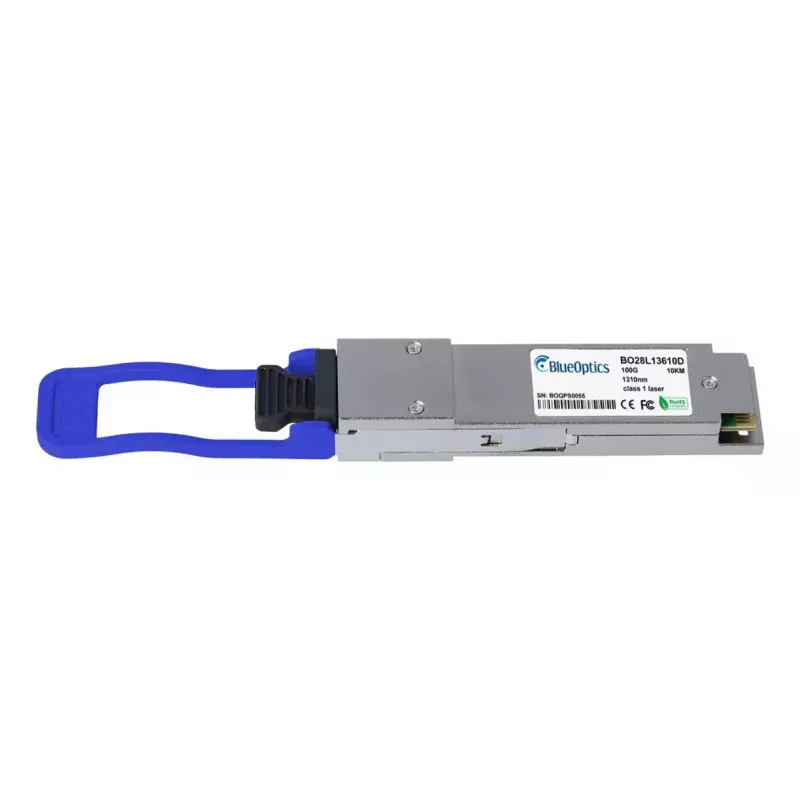

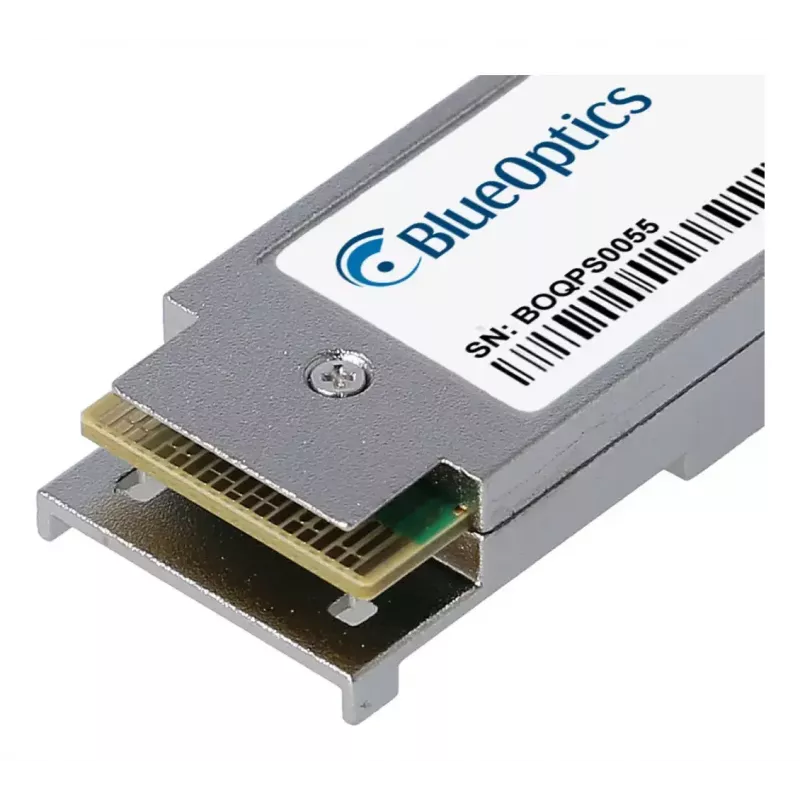

The BlueOptics 100-04744-BO QSFP28 fiber optic transceiver module supports data transfer rates up to 100000 Mbit/s and is designed for high-density, high-speed networking environments. The module uses the QSFP28 form factor, comes in a silver housing and weighs 20 g. Built to meet CE, FCC and RoHS standards and specified with a mean time between failures (MTBF) of 1,000,000 hours, the transceiver is intended for use in data center links, aggregation and core networks where reliable 100 Gbps connectivity is required.

Advantages

The module provides a compact QSFP28 form factor that enables four-channel 25 Gbps equivalent lanes aggregated to 100 Gbps while conserving slot space in switches and routers. Its industry-standard interface simplifies integration into existing 100 Gbps ports and its compliance with CE, FCC and RoHS supports regulatory and environmental requirements. A specified MTBF of 1,000,000 hours indicates long-term operational reliability for continuous networking applications.

Suitable for

• 100 Gbps uplinks in data center switches and routers
• High-speed aggregation and core network links
• Server-to-switch or switch-to-switch optical connections
• Environments requiring compact QSFP28 transceivers

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s (100 Gbps)
• Form factor: QSFP28 optical transceiver
• Product colour: Silver
• Weight: 0.02 kg (20 g)
• Reliability: MTBF 1,000,000 hours
• Standards compliance: CE, FCC, RoHS

How to use

Install the BlueOptics QSFP28 module into a compatible QSFP28 port on a switch, router or network interface card following the host device manufacturer’s insertion and removal procedure. Connect compatible single-mode or multimode fiber patch cords as required by the chosen optical configuration and ensure proper polarity. Verify link status and speed through the host device management interface and confirm the port operates at the expected 100 Gbps rate.

Recommendations

Handle the transceiver by its housing, avoid touching optical interfaces, and keep protective dust caps on when not in use. Use fiber patch cords and transceiver types that match the network design. Monitor port status after installation and consider using proper ESD precautions during handling and installation.
