Kuitulähetin-vastaanotinmoduuli BlueOptics 740-054053-BO 40000 Mbit/s QSFP

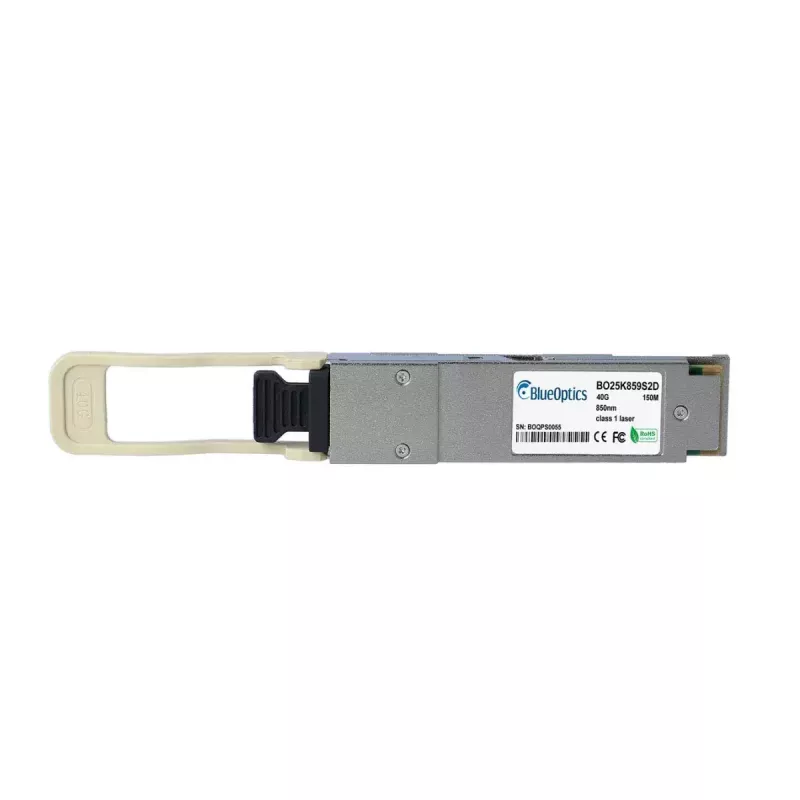

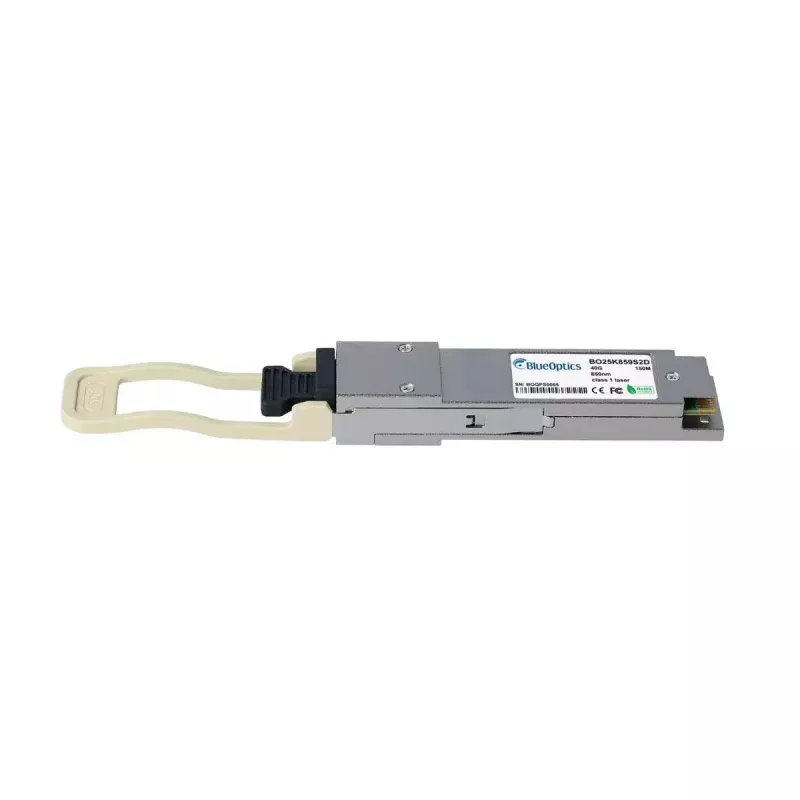

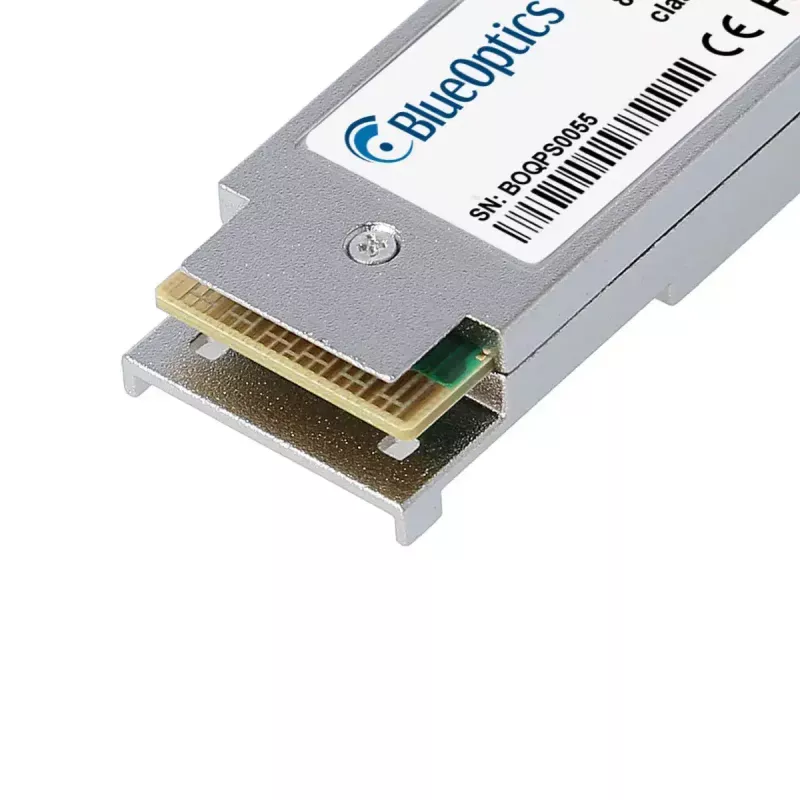

The BlueOptics 740-054053-BO is a QSFP fiber optic transceiver module designed for 40 Gbit/s network applications. It supports QSFP interface connectivity and is intended for multimode fiber links using MPO/MTP connections. The module is finished in a silver color, weighs approximately 20 g, and meets CE, RoHS and FCC compliance requirements to ensure regulatory conformity and interoperability in structured network environments.

Advantages

This BlueOptics QSFP module provides a compact, hot-pluggable form factor suited for high-density switch and router ports. It delivers up to 40,000 Mbit/s throughput over multimode fiber and uses standardized MPO/MTP connectivity for straightforward integration. Compliance with CE, RoHS and FCC standards supports reliable operation and simplified deployment in professional network installations.

Suitable for

• High-speed data center links and aggregation ports
• Switch-to-switch and switch-to-router multimode connections
• Short-reach fiber backbone segments within campus or enterprise networks
• Environments requiring QSFP form-factor upgrades to 40G capacity

Key specifications

• Interface type: QSFP
• Maximum data transfer rate: 40000 Mbit/s
• Connector type: MPO/MTP (MSA-compatible)
• Fiber type: multimode fiber support
• Typical color: silver
• Weight: 0.02 kg
• Regulatory compliance: CE, RoHS, FCC

How to use

Install the transceiver into a compatible QSFP slot while the host device is powered down or following the vendor’s hot-swap procedure. Connect an MPO/MTP multimode fiber patch cord to the module’s MPO/MTP interface, ensuring correct polarity and channel mapping for multi-lane 40G operation. Verify link status and speed on the host device once the module and cable are connected. Observe the host vendor’s compatibility and firmware requirements to ensure full functionality.

Recommendations

Use high-quality multimode MPO/MTP patch cords and proper polarity-verified patch panels to achieve the rated short-reach performance. Confirm that the receiving hardware supports the QSFP 40G module and, where available, enable digital diagnostic monitoring (DDM/DOM) features in the host system for real-time monitoring of optical parameters.
