Kuorintatyökalu koaksiaalikaapelille DeLOCK 90512

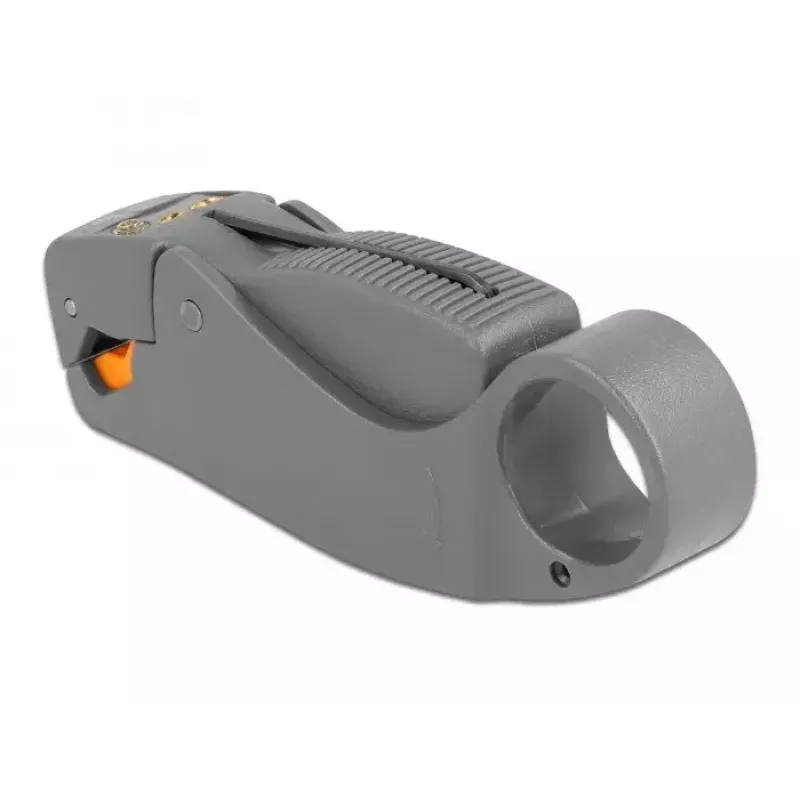

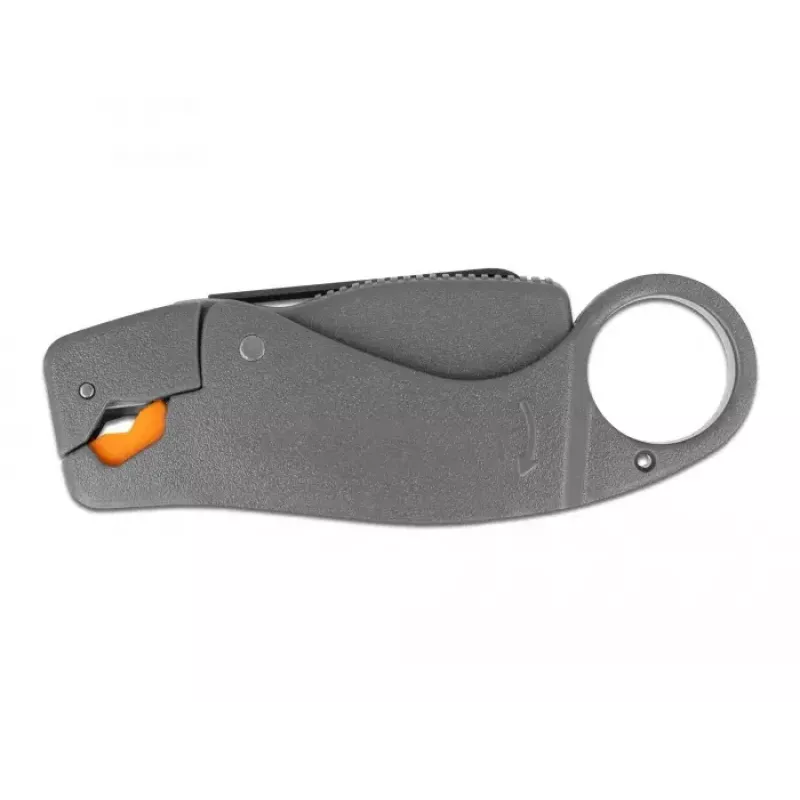

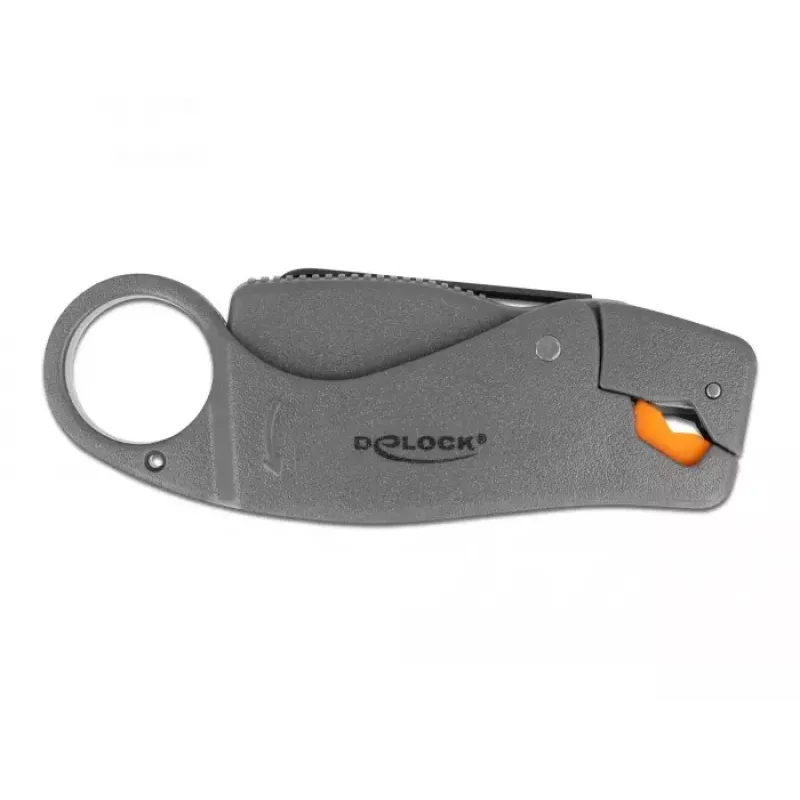

The Stripping Tool for Coaxial Cables DeLOCK 90512 is a compact cable stripper designed for RG‑6, RG‑59 and RG‑58 round coaxial cables. It integrates three adjustable blades to remove the outer sheath, the shielding and the inner conductor insulation in a single operation. The tool is made for professional and DIY use and is supplied in a blister package.

Advantages

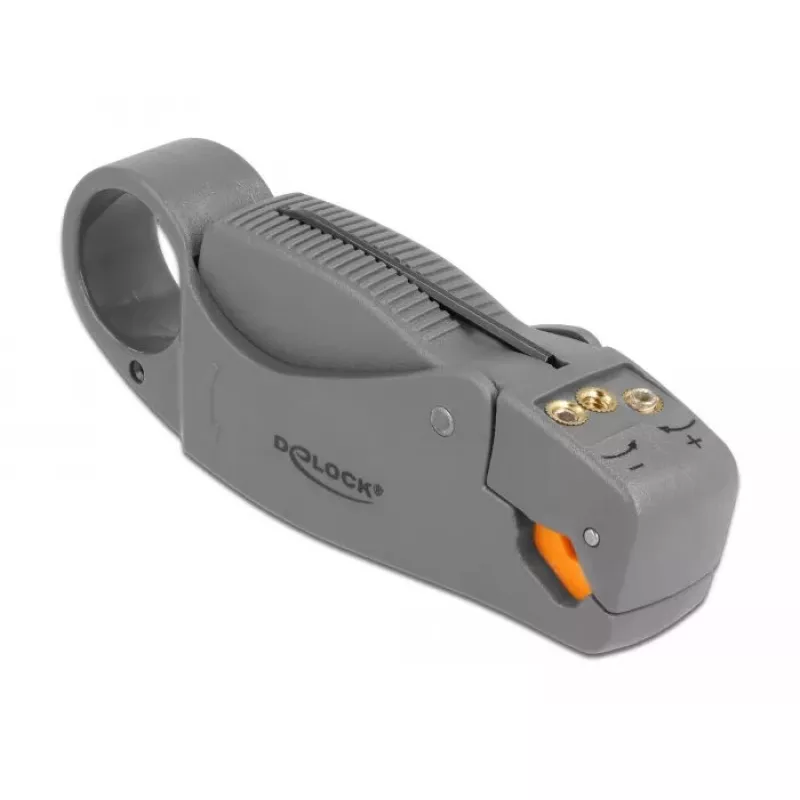

The three blades allow one‑step stripping of outer sheathing, shielding and inner insulation, with individual height adjustment using the included removable Allen key. The stripping length can be changed by repositioning the blades with the removable side bolt. The fluted handle and ergonomic shape provide secure, comfortable grip and the internal metal spring enables one‑handed operation. The tool measures approximately 108 mm × 47 mm × 24 mm, weighs about 0.048 kg and is grey in colour.

Suitable for

Key specifications

How to use

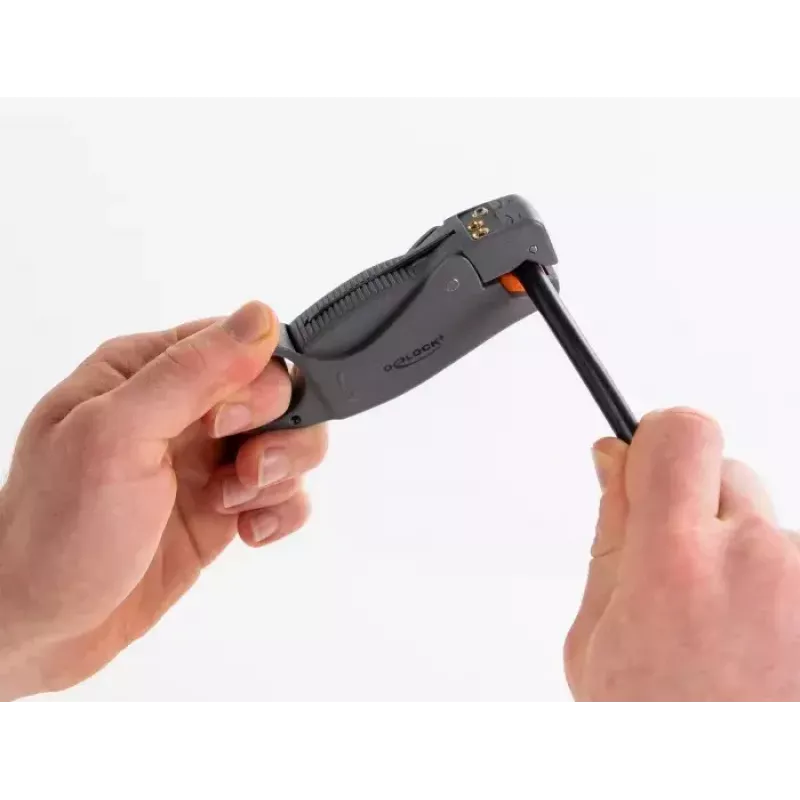

Place the coaxial cable into the tool so that the blades contact the desired sheath sections. Adjust blade height with the supplied Allen key and set the stripping length by loosening and repositioning the removable side bolt. Rotate the tool around the cable or slide it along the cable as required to cut through the layers, then pull off the removed sections. For repeatable results, check blade positions and retighten the bolt and Allen key before each use.

Recommendations

Inspect blades periodically for wear and replace or sharpen as needed. Use steady, controlled motion when stripping to avoid nicking the centre conductor. Store the Allen key in its compartment in the tool when not in use.
