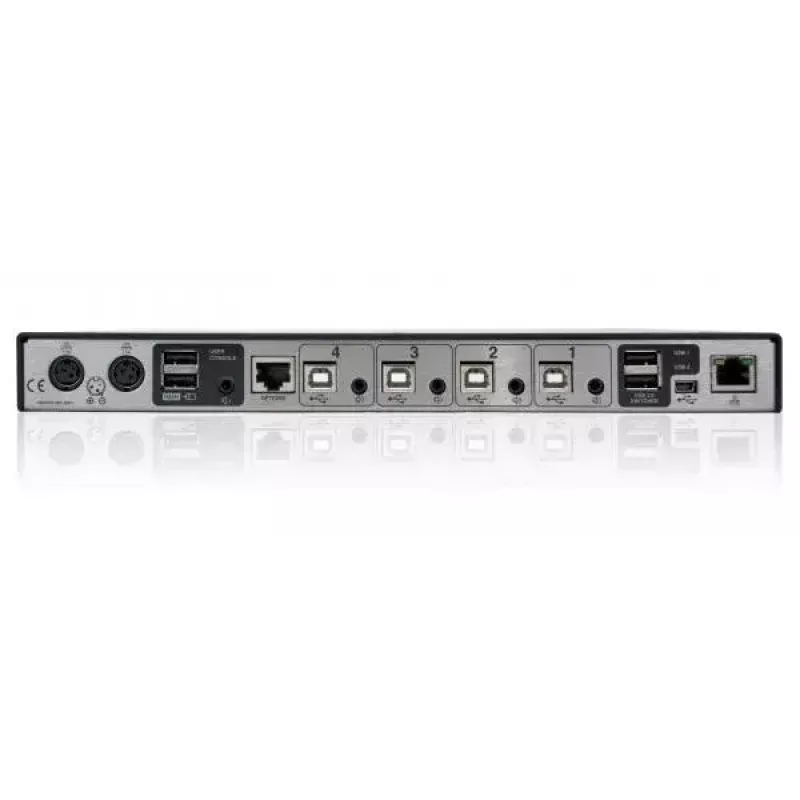

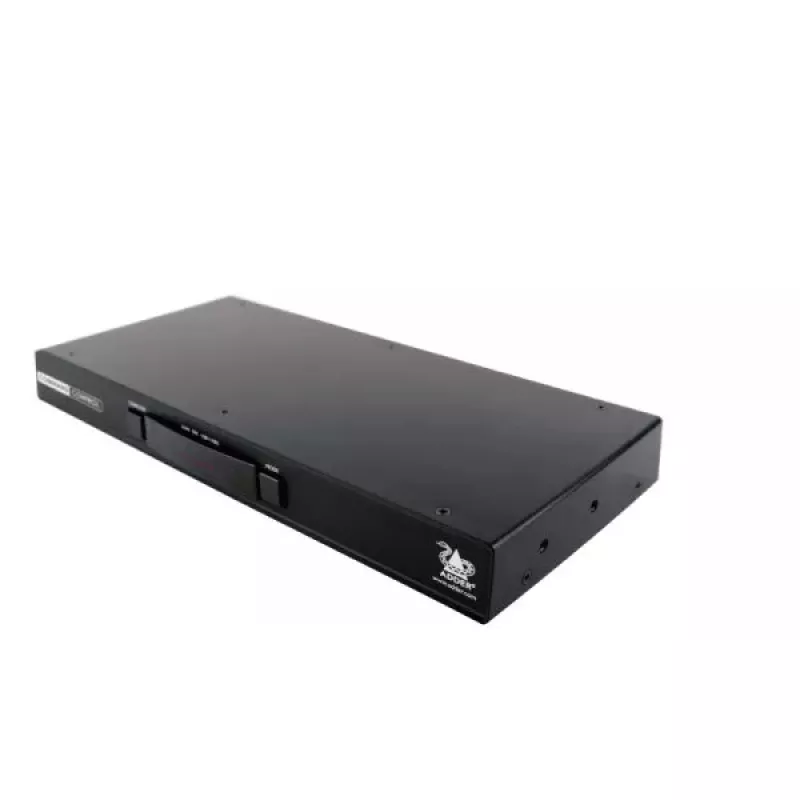

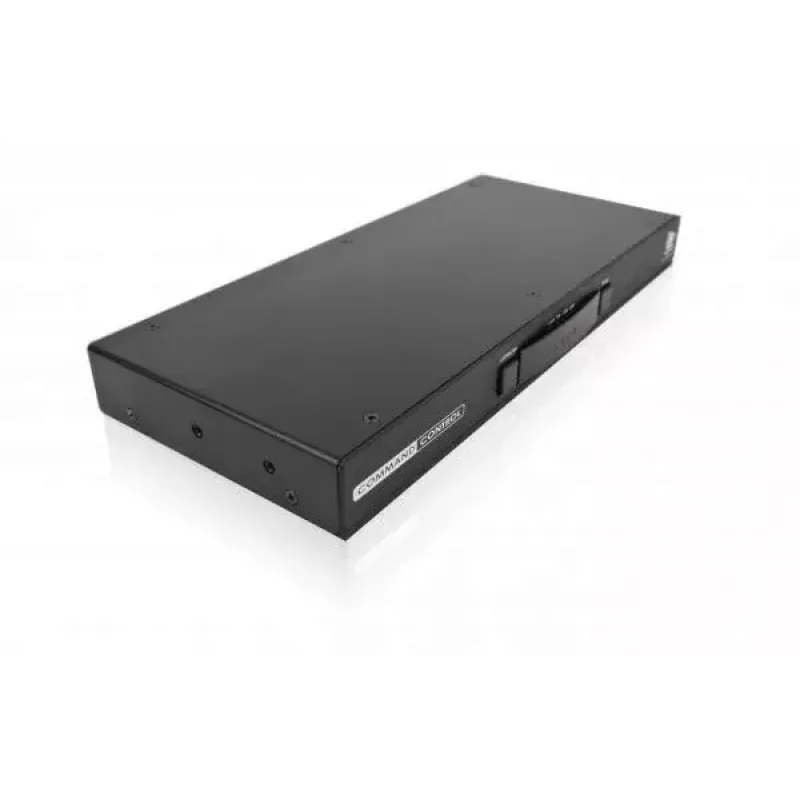

KVM-kytkin ADDER CCS-PRO4

The ADDER CCS-PRO4 KVM switch enables control of up to four computers using a single keyboard and mouse. The unit supports USB video, USB keyboard and USB mouse connections and provides an experience similar to a single desktop by allowing the operator to move the mouse cursor across screen borders to select the active computer. Housed in a robust metal enclosure and certified to CE and FCC standards, the device accepts AC power across a wide input range of 100–240 V at 50–60 Hz and has compact dimensions of 290 mm × 130 mm × 30 mm, making it suitable for constrained workspaces.

Advantages

The CCS-PRO4 reduces desk clutter by consolidating control to one keyboard and mouse for four machines and supports intuitive Free-Flow switching so operators can move seamlessly between systems. The metal housing provides mechanical durability while CE and FCC certification confirm compliance with common regulatory requirements. Integrated USB video and sound aggregation allow consolidated audio monitoring from selected sources, helping users keep track of alarms and important notifications without switching physical devices.

Suitable for

• Command and control rooms where operators need to manage multiple systems simultaneously
• Control desks in broadcast, security or monitoring environments
• Workstations that require compact multi-computer control to save desk space
• Environments requiring reliable, regulatory-compliant hardware for continuous operation

Key specifications

• Number of computers controlled: 4
• Video port type: USB (USB video support)
• Keyboard port type: USB
• Mouse port type: USB with Free-Flow mouse switching
• Power input: AC 100–240 V, 50–60 Hz
• Product colour: Black
• Weight: 0.9 kg
• Housing: Metal enclosure
• Dimensions (W × D × H): 290 mm × 130 mm × 30 mm
• Certifications: CE, FCC

How to use

Connect the CCS-PRO4 to up to four target computers using the appropriate USB connections for video, keyboard and mouse. Plug the unit into AC power within the specified input range. Place the single keyboard and mouse on the operator desk and connect them to the corresponding USB ports on the switch. Use the Free-Flow method to switch between computers by moving the mouse cursor across the border of the displays to select the target machine; audio from selected sources is amalgamated and will play through the configured output. Ensure all connected systems have compatible USB drivers and video settings for optimal performance.

Recommendations

For stable operation, install the switch in a ventilated area and verify power source stability. Use high-quality USB cables between the switch and target computers to maintain signal integrity, and confirm that each computer’s USB and video drivers are up to date. In multi-monitor setups, align display edges in the operating system so mouse movement corresponds to physical monitor positions for reliable Free-Flow switching.
