Kytkinaktuatorin sisäosa JUNG 509 U — mekaaninen seinäkytkimen sisäosa

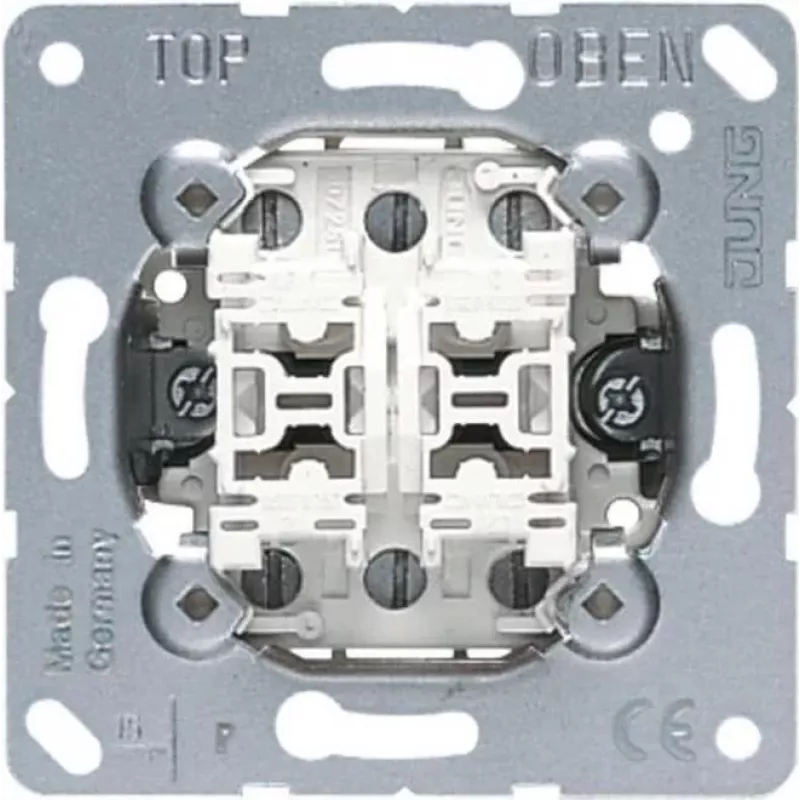

JUNG 509 U is a mechanical wall-mounted switch insert designed for basic on/off control of lighting circuits and simple electrical loads. The compact module fits behind standard decorative frames and faceplates from the JUNG range and is intended for use in residential and commercial interiors where a reliable, straightforward switching element is required.

Advantages

The switch actuator features screw terminals for rigid and flexible conductors up to 2.5 mm², providing secure electrical connections and simple wiring during installation. Its mechanical design ensures compatibility with common JUNG frames and faceplates, while the insert format allows discreet integration behind decorative coverings. The unit is built to deliver dependable switching performance for everyday lighting and load control tasks.

Suitable for

Key specifications

How to use

Mount the insert into the prepared wall box and secure it behind the selected JUNG frame or faceplate according to the installation guidance provided by the frame manufacturer. Connect the supply and load conductors to the screw terminals, ensuring proper tightening and correct wiring polarity where applicable. Verify mechanical operation of the actuator and restore power to test switching of the connected circuit.

Recommendations

Use suitable cable cross-sections up to 2.5 mm² and follow local electrical codes. Ensure power is isolated before connecting or adjusting wiring. For loads with special requirements (electronic ballasts, dimmers, motors), confirm compatibility with a mechanical on/off switch actuator or consult technical documentation.
