Lämpötyyny DeLOCK 18287

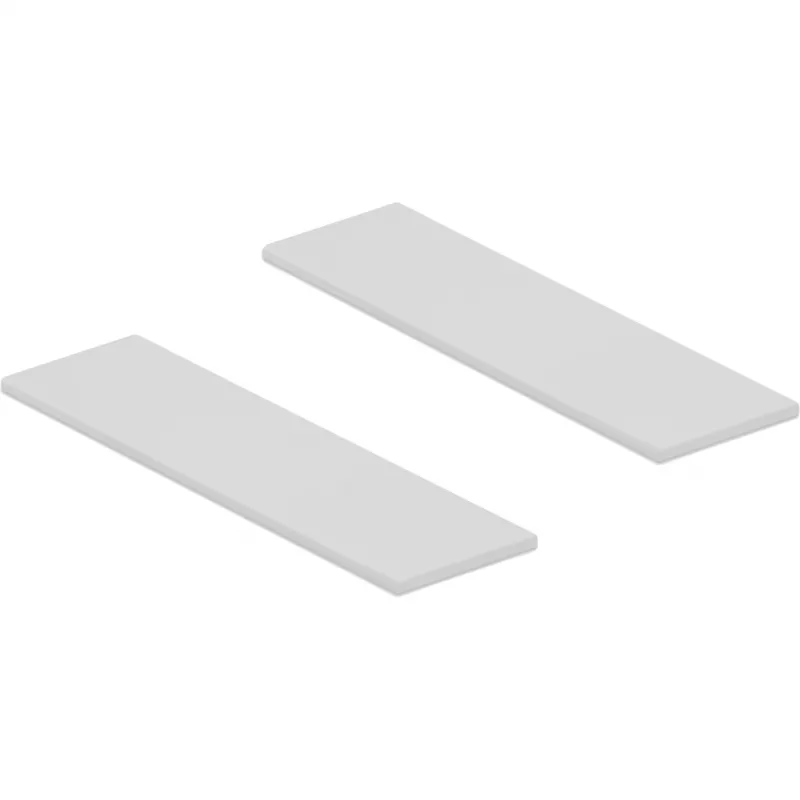

The DeLOCK 18287 thermal pad is a self-adhesive grey pad designed to improve heat dissipation in electronic devices. With dimensions of 70 mm × 20 mm × 1.75 mm, it is suitable for thermal transfer between components such as M.2 SSD modules and heatsinks, helping to maintain stable operating temperatures and prolong component life.

Advantages

The self-adhesive surface ensures simple placement and reliable contact between the M.2 module and the heatsink without additional fixation. Its compliant material fills small gaps and uneven surfaces to improve thermal coupling. Compact size and neutral grey colour make it easy to integrate into existing computer cooling setups.

Suitable for

• Thermal interface between M.2 SSDs and heatsinks
• Small electronic components requiring heat transfer
• PC and server cooling applications with limited space

Key specifications

• Type: Thermal pad
• Brand: DELOCK
• Model: 18287
• Dimensions: 70 mm × 20 mm × 1.75 mm
• Colour: Grey
• EAN: 4043619182879

How to use

Clean the contacting surfaces on the M.2 module and the heatsink to remove dust, grease or residues. Remove the protective liner from the self-adhesive thermal pad, position the pad between the M.2 SSD and the heatsink ensuring full contact, and press gently to secure. Verify that the pad does not obstruct connectors or mounting holes before final assembly.

Recommendations

Use the thermal pad within its intended thickness and contact area; avoid compressing it excessively. Replace the pad if it becomes damaged or contaminated. Do not use the pad where electrical insulation or specific dielectric properties are required without verifying suitability.
